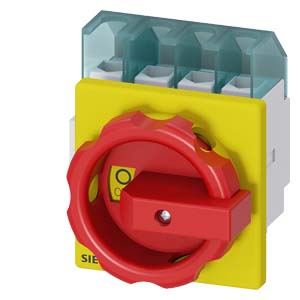

SWITCH DISCONNECTOR 3LD, EMERGENCY SWITCHING-OFF SWITCH, 4- POLE, IU: 25 A, OPERATING POWER / AT AC-
Cod produs: 3LD2103-1TL53
Alte coduri:
upc: 754554732718
Descriere
Sentron, Switch Disconnector 3LD
Switch disconnector SENTRON 3LD2 is designed for the safe shutdown of loads in various applications.
Technical details:
- Emergency switching-off switch
- 4-pole
- Iu: 25 A
- Operating power / at AC-23 A 400 V: 9.5 kW
- Front-mounted
- Rotary operating mechanism
- Red / yellow
- 4-hole mounting of the handle
- Degree of protection IP65 with encapsulated enclosure for outdoor applications
- Modular design

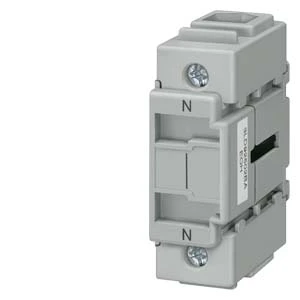

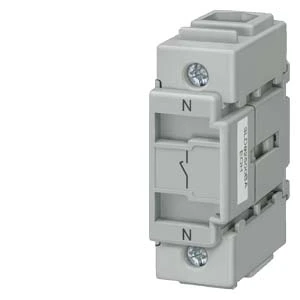

- N-PE terminal, or 4th pole
- Optimum disconnection of 16 A of 250 A from the power supply

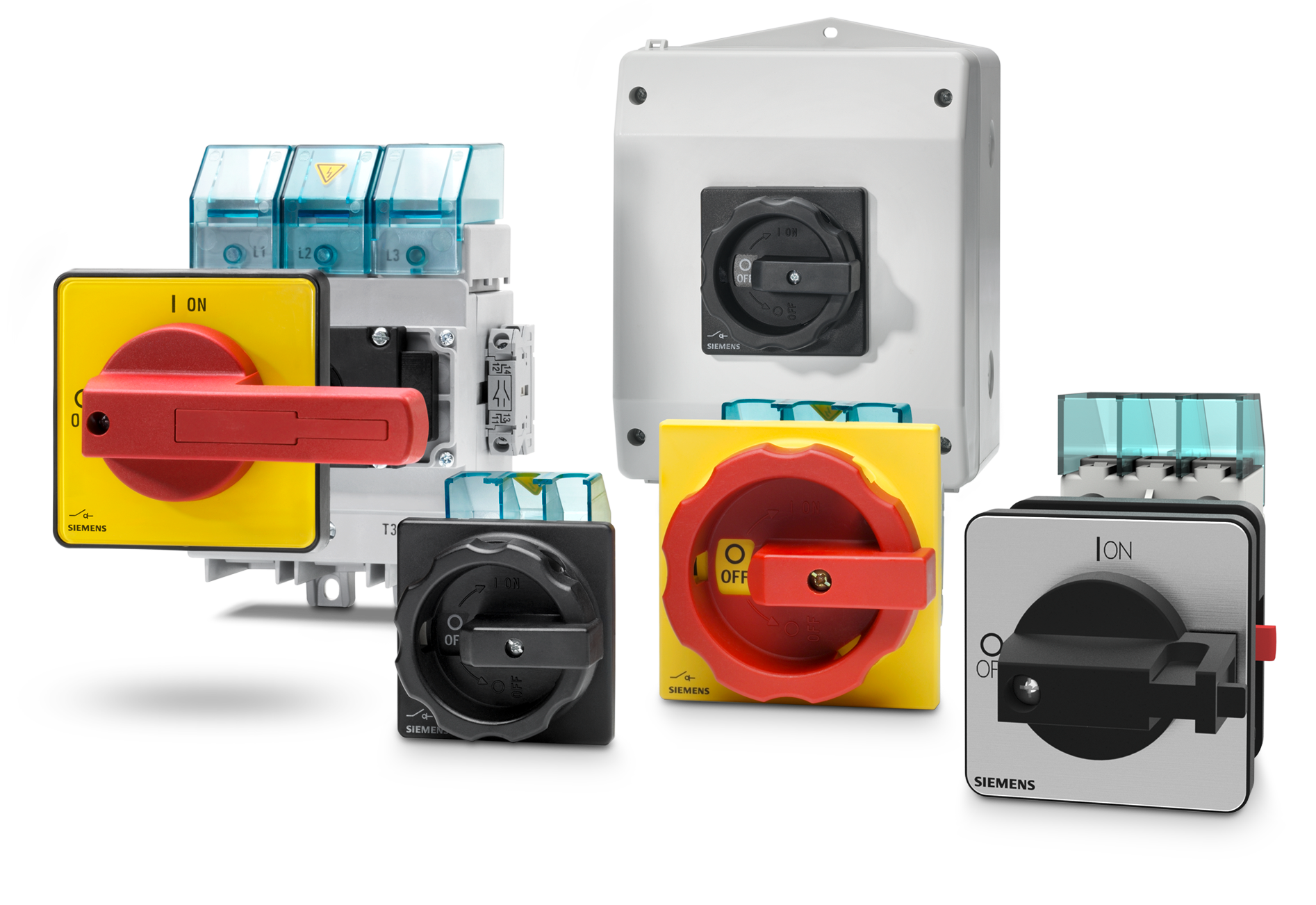

- Available in a wide range of variants for front mounting, mounting plate, DIN rail, or installation in distribution boards
- Options for direct or door-coupling rotary operating mechanism
- Variants for DC applications
Customer benefits:
- Safe shutdown of loads in many areas, including three-phase motors, air conditioning and ventilation systems, and more.
- Fast and easy mounting of auxiliary switches.
- Versatile and can be used worldwide thanks to international approvals (IEC, UL, CCC, shipbuilding).
- End-to-end safety for users and systems with main and EMERGENCY-OFF switches.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Depth | 93 |
| Height | 84 |
| Width in number of modular spacings | 4 |
| Width | 67 |
| Protection | |
| Degree of protection (NEMA) | Other |
| Degree of protection (IP), front side | IP65 |
| Electrical | |
| Rated permanent current at AC-23, 400 V | 20 |
| Switching power at 400 V | - |
| Rated permanent current at AC-21, 400 V | 25 |
| Rated operation power at AC-3, 400 V | 8 |
| Rated operation power at AC-23, 400 V | 10 |
| Rated permanent current Iu | 25 |
| Conditioned rated short-circuit current Iq | - |
| Rated short-time withstand current lcw | 0.64 |

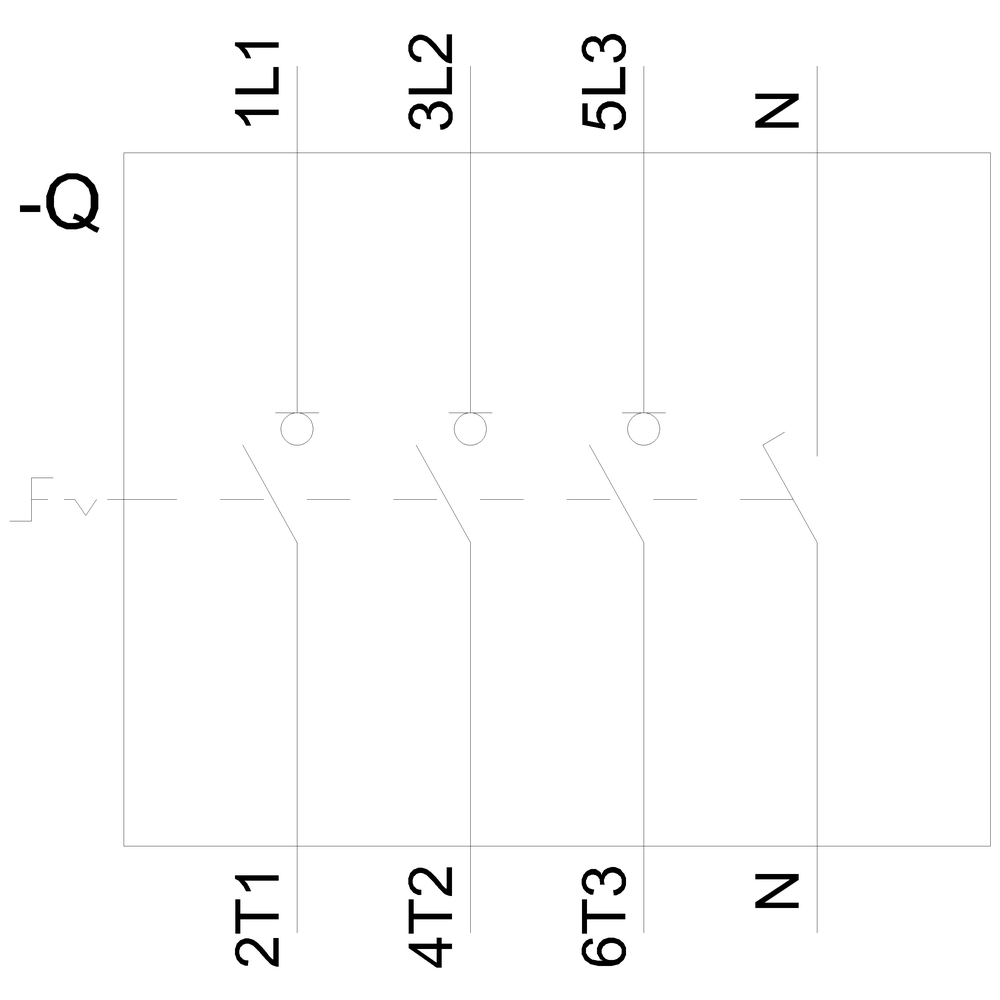

| Number of poles | 4 |
| Max. rated operation voltage Ue AC | 690 |
| Rated operating voltage | - |
| Mounting/installation | |
| Suitable for intermediate mounting | No |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | No |
| Application | |
| Suitable for distribution board installation | - |
| Options | |
| Motor drive optional | No |
| Version as reversing switch | No |
| Voltage release optional | No |
| Interlockable | Yes |
| Colour | |
| Colour control element | Red |
| Model/type | |
| Number of switches | 1 |
| Motor drive integrated | No |
| Type of control element | Short rotary handle |
| Version as emergency stop installation | Yes |
| With pre-assembled cabling | No |
| Version as main switch | Yes |
| Version as safety switch | Yes |
| Version as maintenance-/service switch | Yes |
| Connection | |
| Type of electrical connection of main circuit | Frame clamp |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Package 1 | |
| weight | 0,234 |
| length | 0,092 |
| width | 0,087 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209402935 |
| Dimensions of product | |
| Weight | 0,234 |
