Descriere

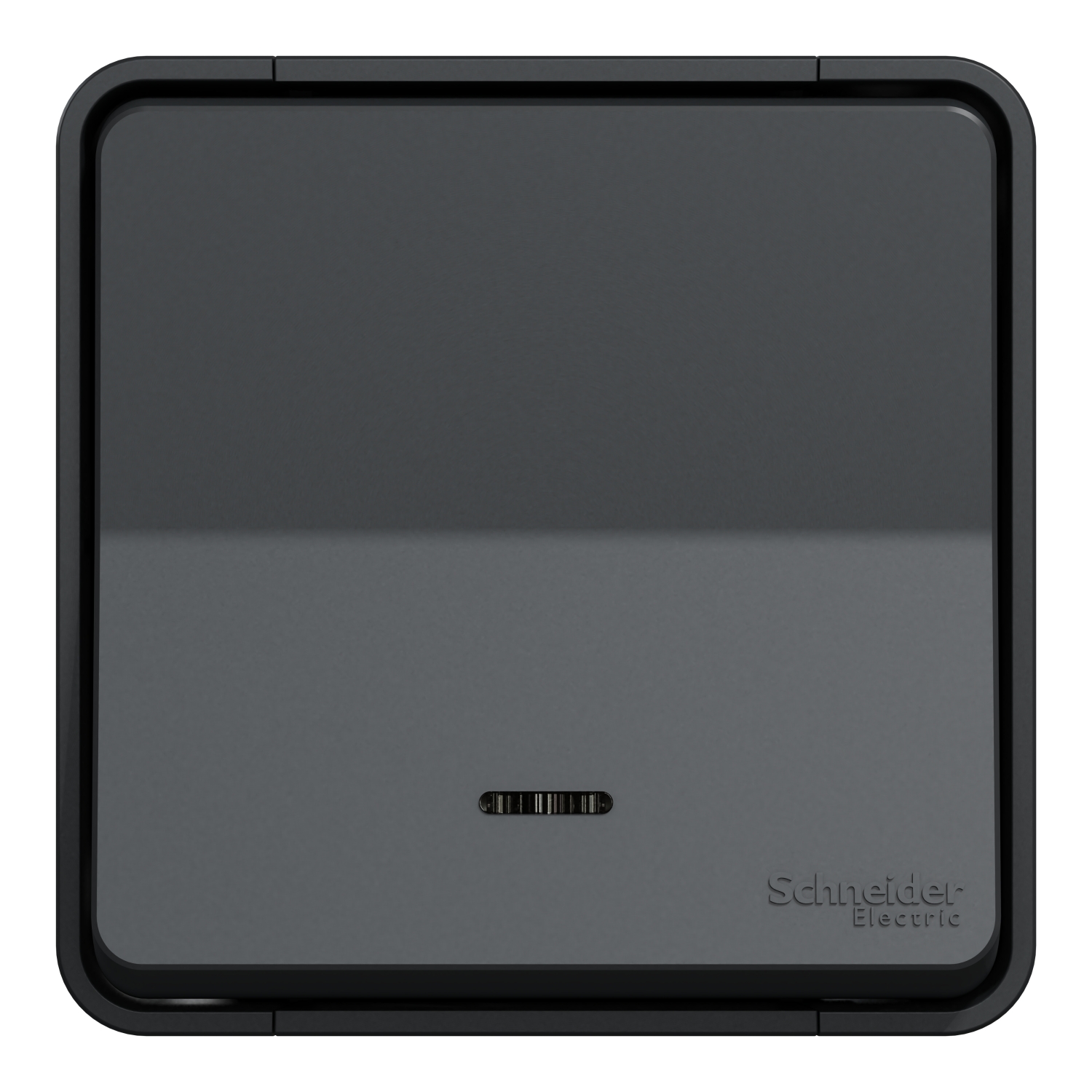

Intrerupatorul cu revenireMureva Styl MUR35028 este un dispozitiv robust care poate fi instalat in interior sau exterior. Are are un indice de protectie IP55 care ii asigura impermeabilitatea. LED-ul permite localizarea dispozitivului. Are o inaltime de 76 mm, o latime de 76 mm si o adancime de 64 mm
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Model/type | |
| With light source | No |
| With lighting | Yes |
| Imprint | None |
| Model | Single push button |
| With signal lamp | Yes |
| Number of modules (module system) | - |
| Number of rockers | 1 |
| Assembly arrangement | Basic element with complete housing |
| Contactless type | No |
| Protection | |
| Suitable for degree of protection (IP) | IP55 |
| Colour | |
| RAL-number (similar) | 7016 |
| Transparent | No |
| Colour | Grey |
| Options | |
| IFTTT support available | No |
| Label space/information surface | No |
| Anti-bacterial treatment | No |
| Measurements | |
| Device depth | 64 mm |
| Min. depth of built-in installation box | - |
| Device width | 76 mm |
| Device height | 76 mm |
| Electrical | |
| Number of poles | 1 |
| Rated current | 10 A |
| Nominal voltage | 250 V |
| Mounting/installation | |
| Type of fastening | Screw mounting |
| Mounting method | Surface mounted |
| Connection | |
| Connection type | - |
| Number of contacts as normally open contact | - |
| Number of contacts as change-over contact | - |
| Number of contacts as normally closed contact | - |
| Number of revolving contacts | - |
| Setting/control | |
| Method of operation | Push button |
| Communication | |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Other | |
| Impact strength | - |
| Package 1 | |
| volume | 375,44 cm3 |
| weight | 129 g |
| length | 7,6 cm |
| width | 6,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480789366 |
| Package 2 | |
| volume | 6120 cm3 |
| weight | 1,388 kg |
| length | 40 cm |
| width | 17 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480789363 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 8,73 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43606480789364 |
| Package 4 | |
| weight | 48,568 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 240 |
| qmin | 240 |
| um | PF |
