Descriere

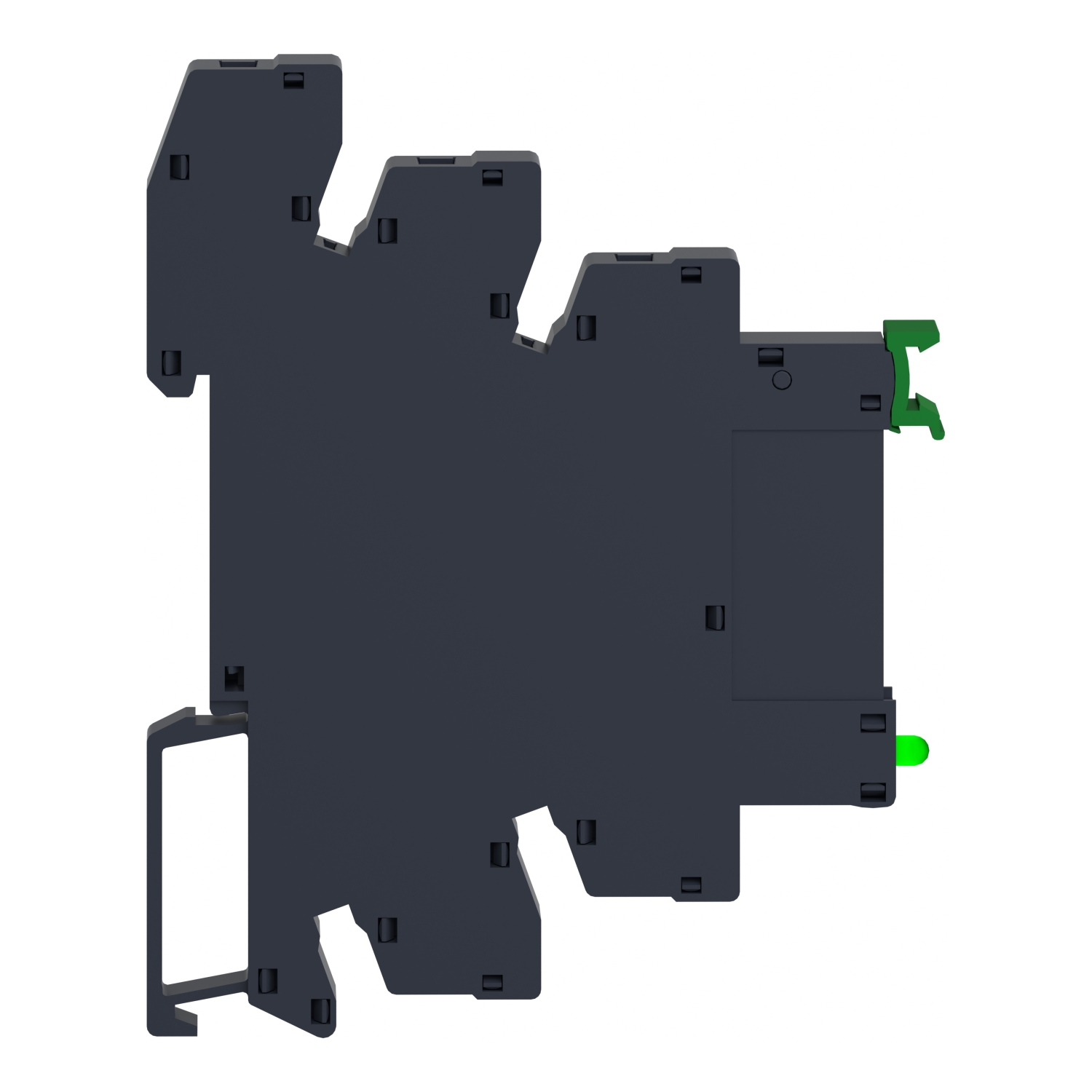

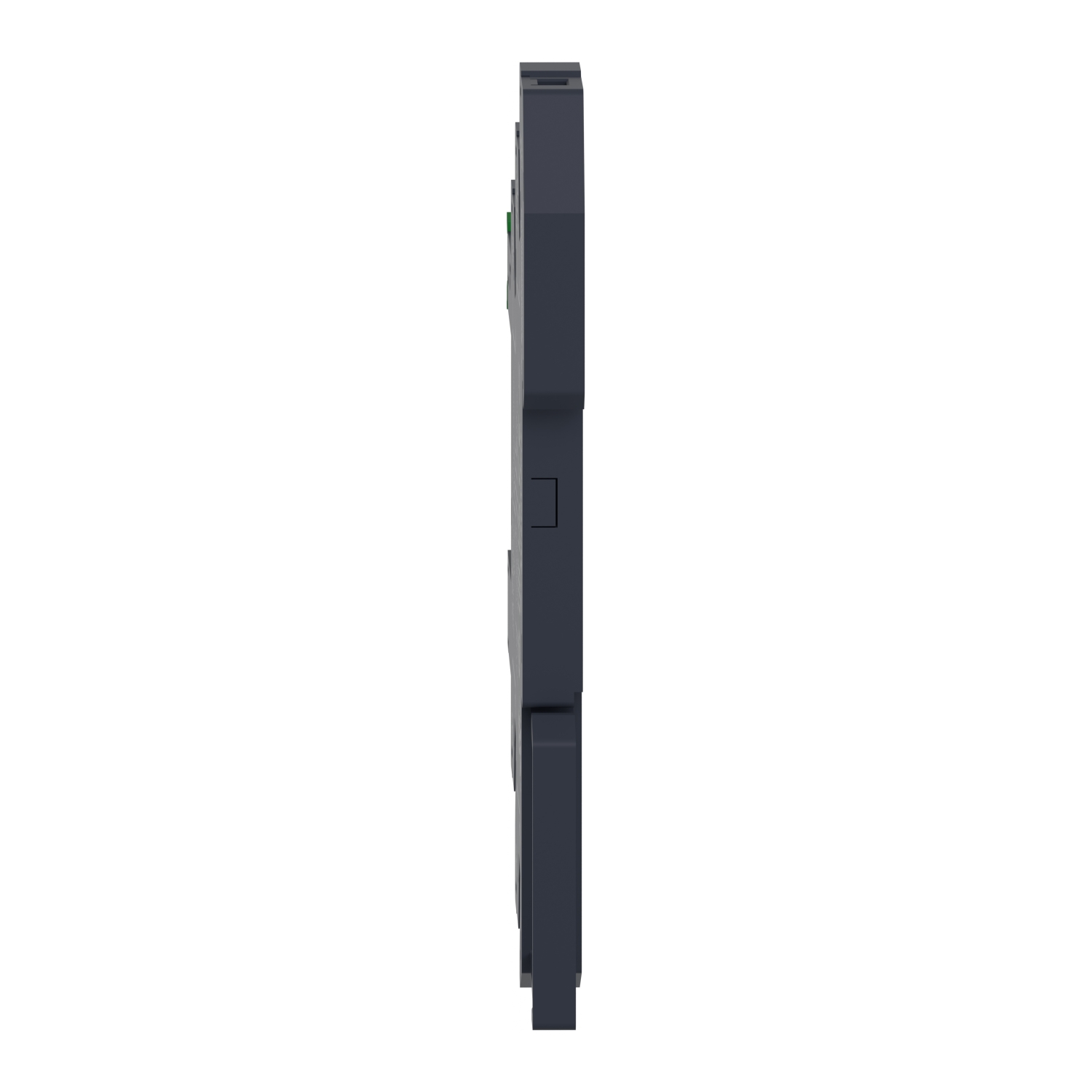

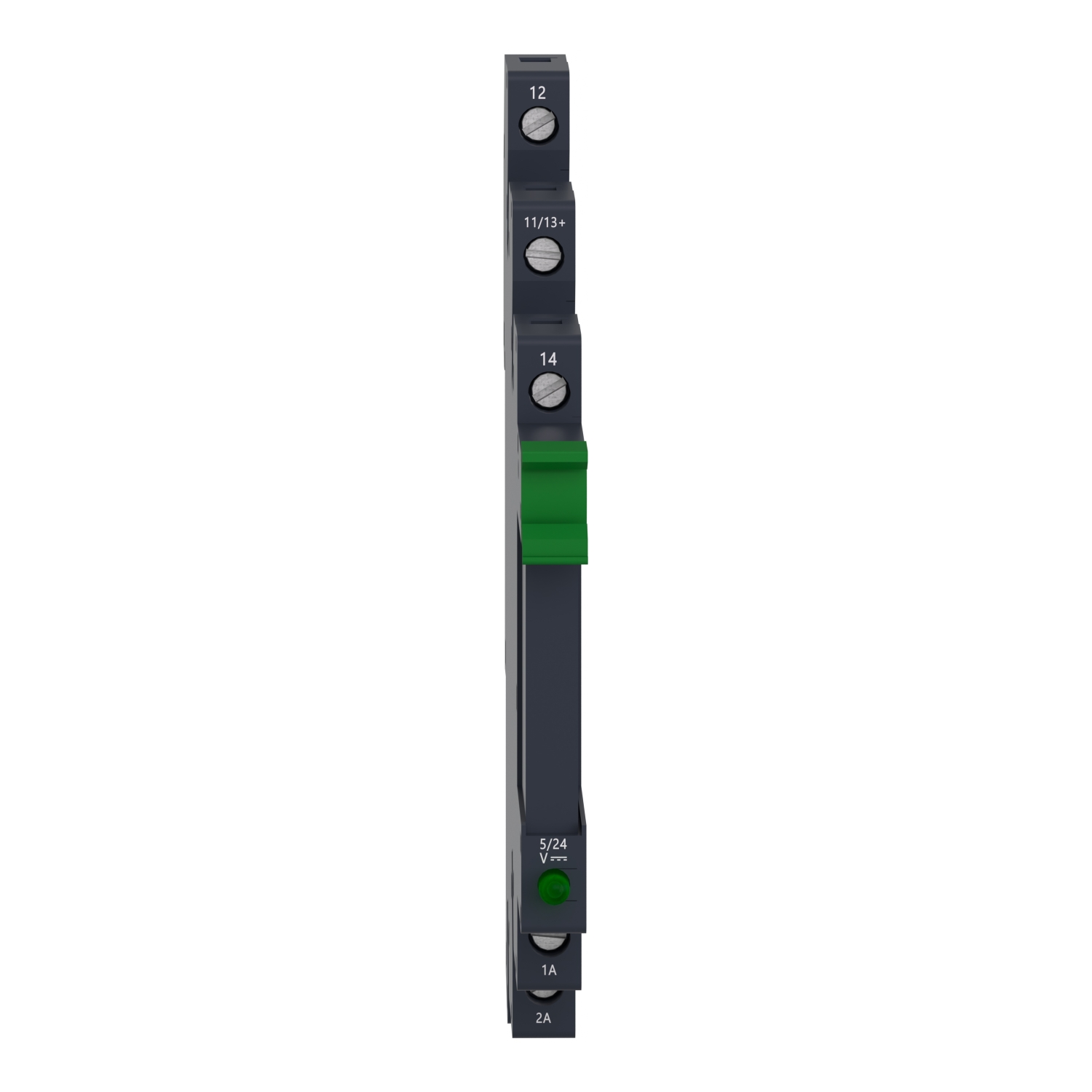

pre assembled relay, Harmony Solid State Relays, 0.1A, DC switching, screw sockets, input 16 to 30V DC, output 1 to 48V DC
Documente
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Operating voltage | 1 V |
| Number of phases | 1 |
| Rated operation current Ie at AC-53a | 0.1 A |
| Rated operation current Ie at AC-51 | 0.1 A |
| Rated operation current Ie at AC-53b | 0.1 A |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-1 | 0.1 A |
| Rated control supply voltage DC | 1 V |
| Rated operation current Ie at AC-3 | 0.1 A |
| Options | |
| Suitable for distribution board | Yes |
| Switching at zero-crossing | No |
| Package 1 | |
| volume | 46,56 cm3 |
| weight | 27 g |
| length | 9,7 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489562984 |
| Package 2 | |
| volume | 1800 cm3 |
| weight | 915 g |
| length | 20 cm |
| width | 10 cm |
| qmax | 30 |
| qmin | 30 |
| um | BX |
| gtin | 13606489562981 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 2,744 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 23606489562988 |
