Descriere

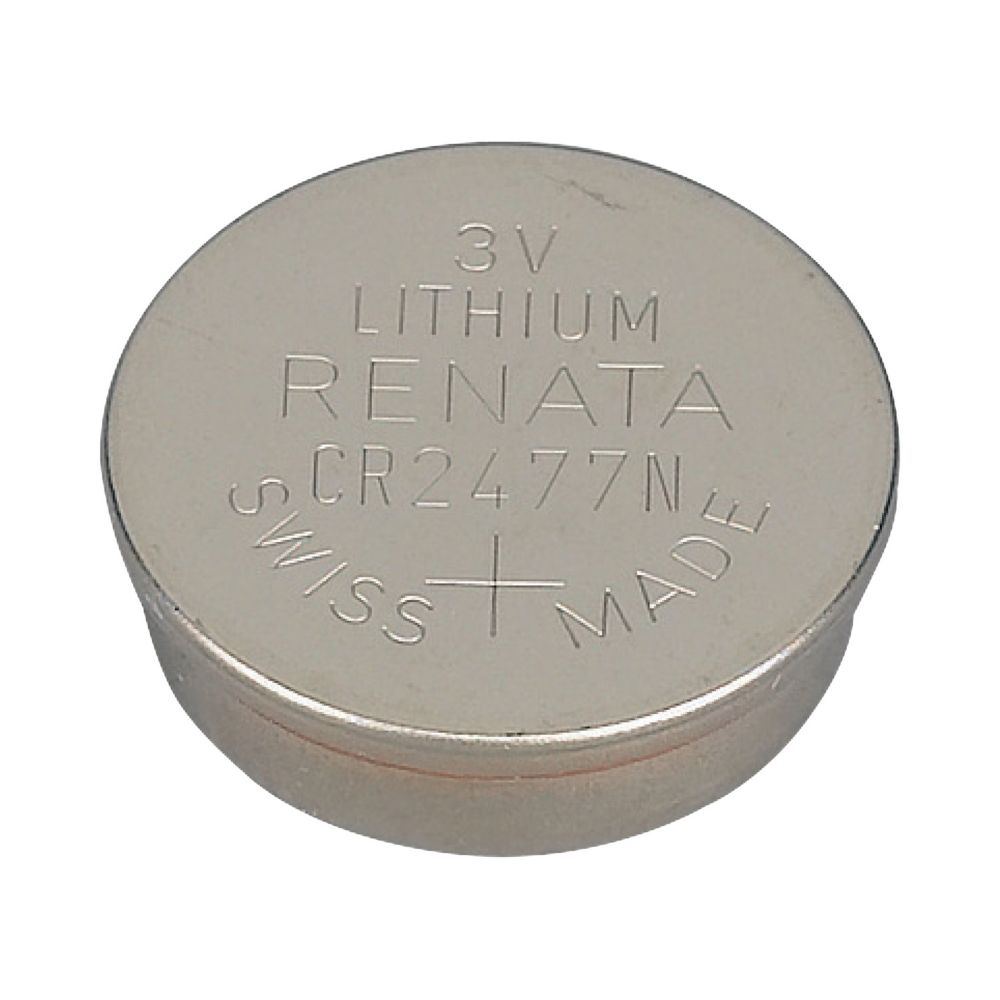

The binary input sends input signals from, e.g., the window contact, glass breakage sensor or from other signal contacts (relay, switch, pushbutton, ...) to the comfortable electrical installation. the device is mounted in the switch, junction or installation box. The device is powered with a round cell battery (CR2477N) and can therefore easily be mounted anywhere (screwed and glued). The flush mounting in a switch, junction or installation box is also possible. battery included as standard.
Specificatii
| Communication | |
| Bus system KNX | Yes |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system radio frequency | No |
| Bus system LON | No |
| Bus system Powernet | No |
| Other bus systems | xComfort |
| Options | |
| Radio frequency bidirectional | Yes |
| Bus module detachable | No |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Measurements | |
| Width in number of modular spacings | 3 |
| Min. depth of built-in installation box | 19 |
| Connection | |
| With bus connection | Yes |
| Number of inputs | 2 |
| Setting/control | |
| LED controlling | No |
| Model/type | |
| With LED indication | No |
| Electrical | |
| Input voltage | 0 |
| Power consumption | - |
| Type of voltage (input voltage) | AC |
| Operating conditions | |
| External signal voltage necessary | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 0,000223 |
| weight | 0,065 |
| length | 0,075 |
| width | 0,085 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082656270 |
| Package 2 | |
| volume | 0,015939 |
| weight | 3,9 |
| length | 0,385 |
| width | 0,18 |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 9007912841241 |
| Dimensions of product | |
| Volume | 0,00004545 |
| Weight | 0,065 |
| Length | 0,052 |
| Width | 0,046 |
| Depth | 0,019 |
