Descriere

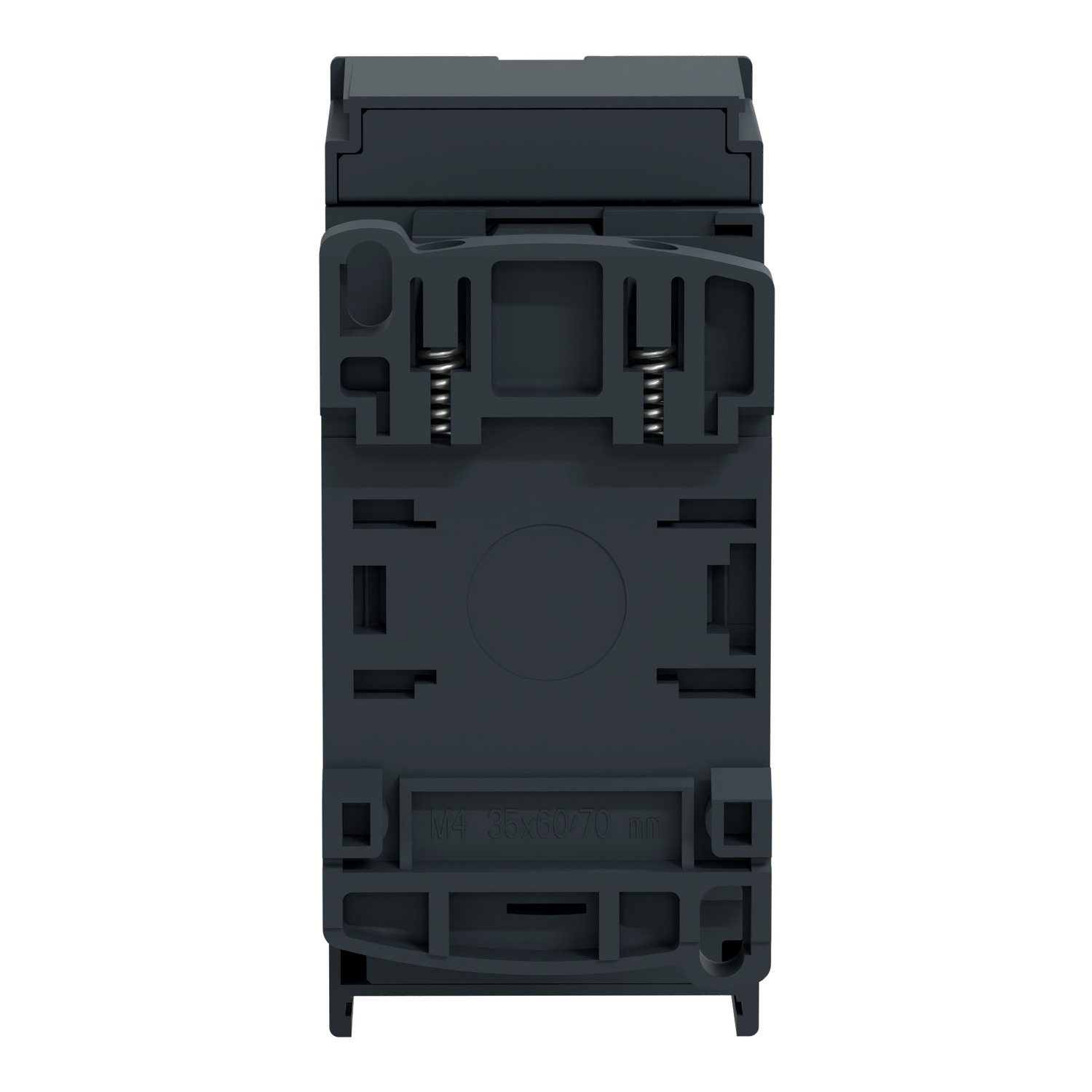

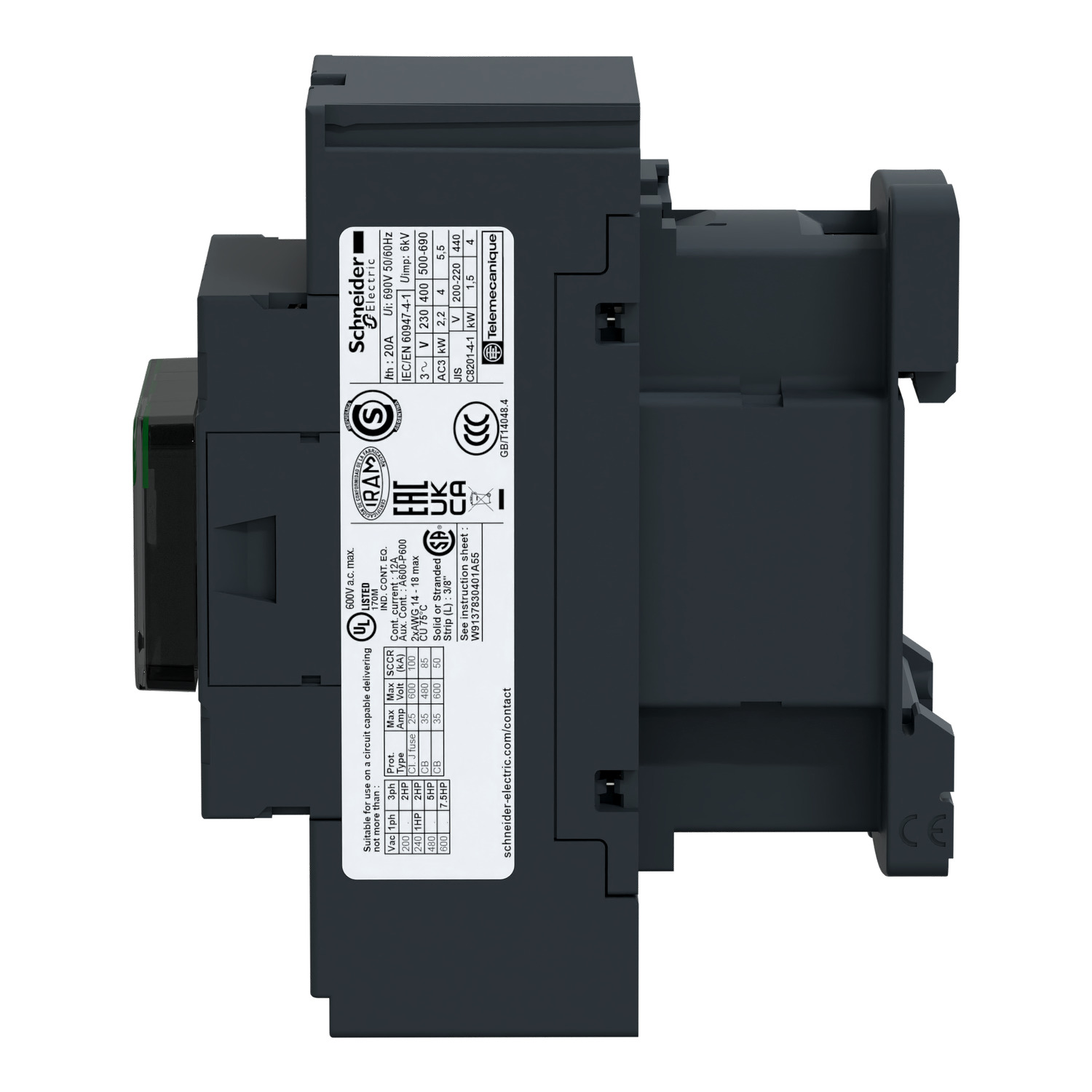

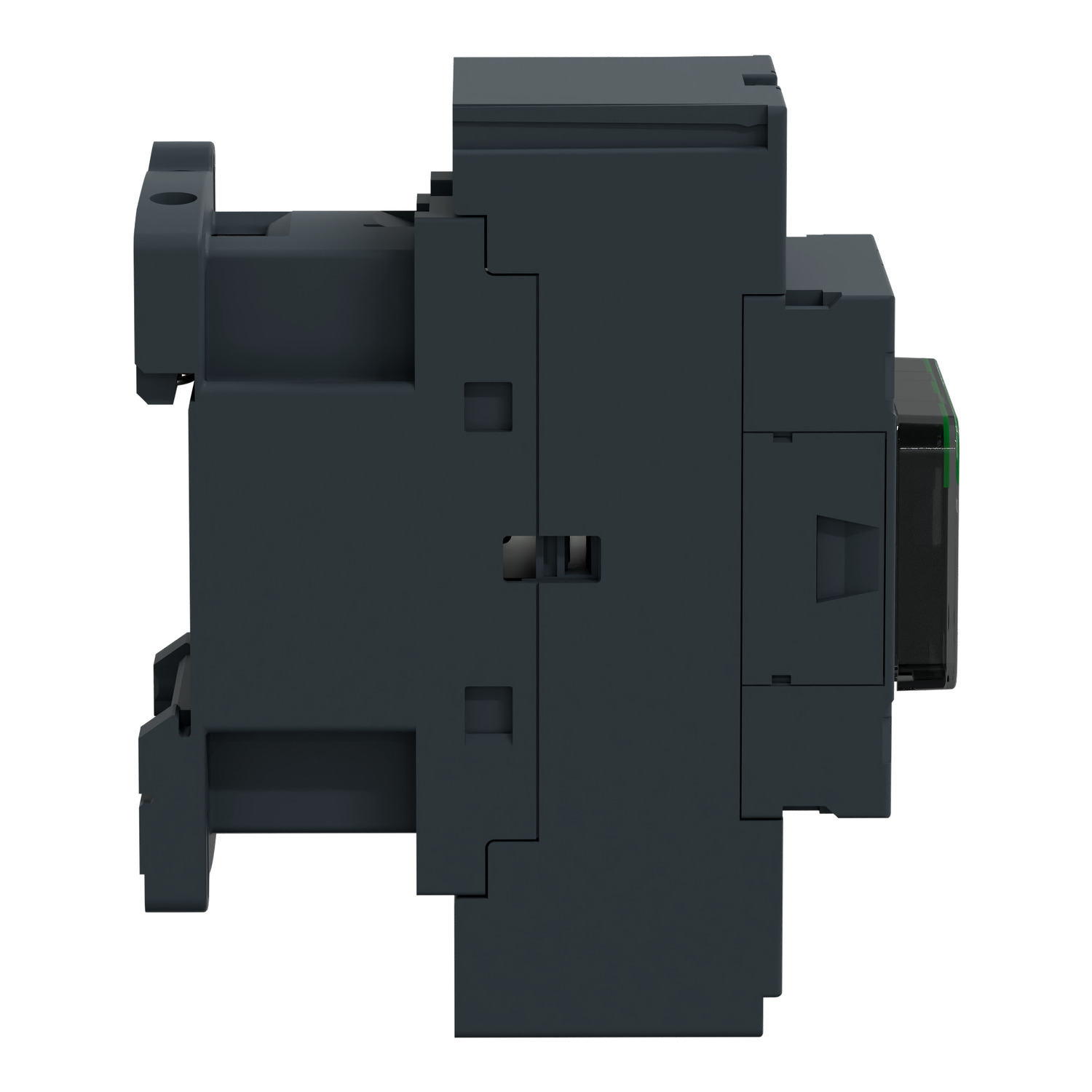

TeSys D contactor, 3P(3 NO), c.a.-3, <= 440 V 18 A, 24 V c.c. bobina
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation power at AC-3, 400 V | 7.5 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | 32 A |
| Rated operation current Ie at AC-3, 400 V | 18 A |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-4, 400 V | 9 A |
| Rated control supply voltage DC | 24 V |
| Rated operation power at AC-4, 400 V | 4 kW |
| Options | |
| Suitable for distribution board | No |
| Package 1 | |
| volume | 784,74 cm3 |
| weight | 609 g |
| length | 12,3 cm |
| width | 11 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110806953 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 9,578 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 15 |
| qmin | 15 |
| um | CT |
| gtin | 13389110806950 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 161,248 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 240 |
| qmin | 240 |
| um | PF |
