Descriere

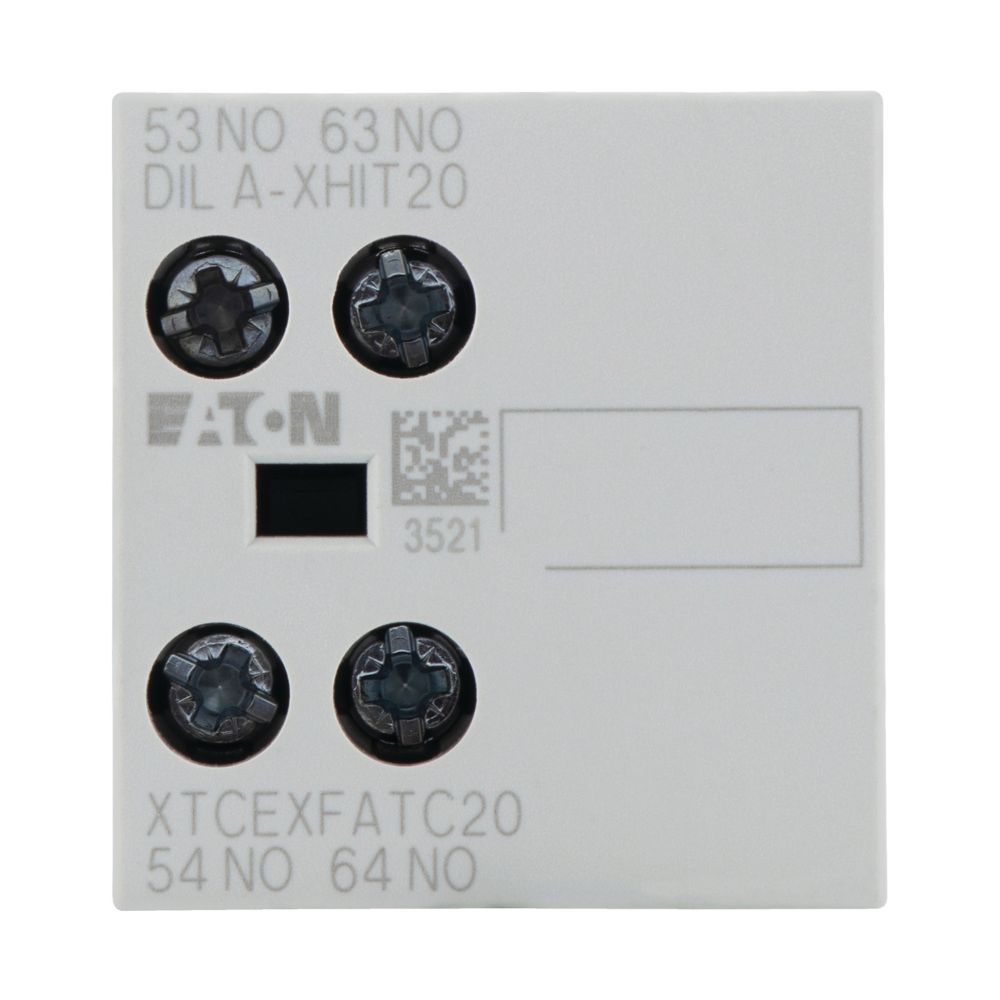

Auxiliary contact module, with interlocked opposing contacts, Switching elements according to EN 50005, Version E combinations correspond to EN 50011 and are to be preferred, The DC operated contactor DILA(C)-22 must only be combined with 2-pole auxiliary contacts, Function: for combination with electrical wiring links, 2 pole, Connection technique: Screw terminals, Rated operational current AC-15 220 V 230 V 240 V: Ie= 4 A, Rated operational current AC-15 380 V 400 V 415 V: Ie= 4 A, Contacts N/O = Normally open: 2 N/O, Mounting type: Front fixing, For use with: DILM7…, DILM9…, DILM12…, DILM15…, DILL…, MSC-D…M7(9, 12, 15)…, MSC-R…M7(9, 12) , Type: high version, Instructions: Interlocked opposing contacts according to IEC/EN 60947-5-1 appendix L, inside the auxiliary contact modules, also for the integrated auxiliary contacts of the DILM 7 - DILM32, Auxiliary contacts used as mirror contacts according to IEC/EN 60947-4-1 Appendix F (not N/C late open)
Specificatii
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Model/type | |
| Number of fault-signal switches | 0 |
| Model | Clip-on |
| Lamp holder | None |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 4 |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 0,00007524 |
| weight | 0,0426 |
| length | 0,057 |
| width | 0,038 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081009374 |
| Package 2 | |
| volume | 0,00039406 |
| weight | 0,213 |
| length | 0,17 |
| width | 0,038 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 4015081842452 |
| Dimensions of product | |
| Volume | 0,00007524 |
| Weight | 0,039 |
| Length | 0,055 |
| Width | 0,036 |
| Depth | 0,038 |
