Descriere

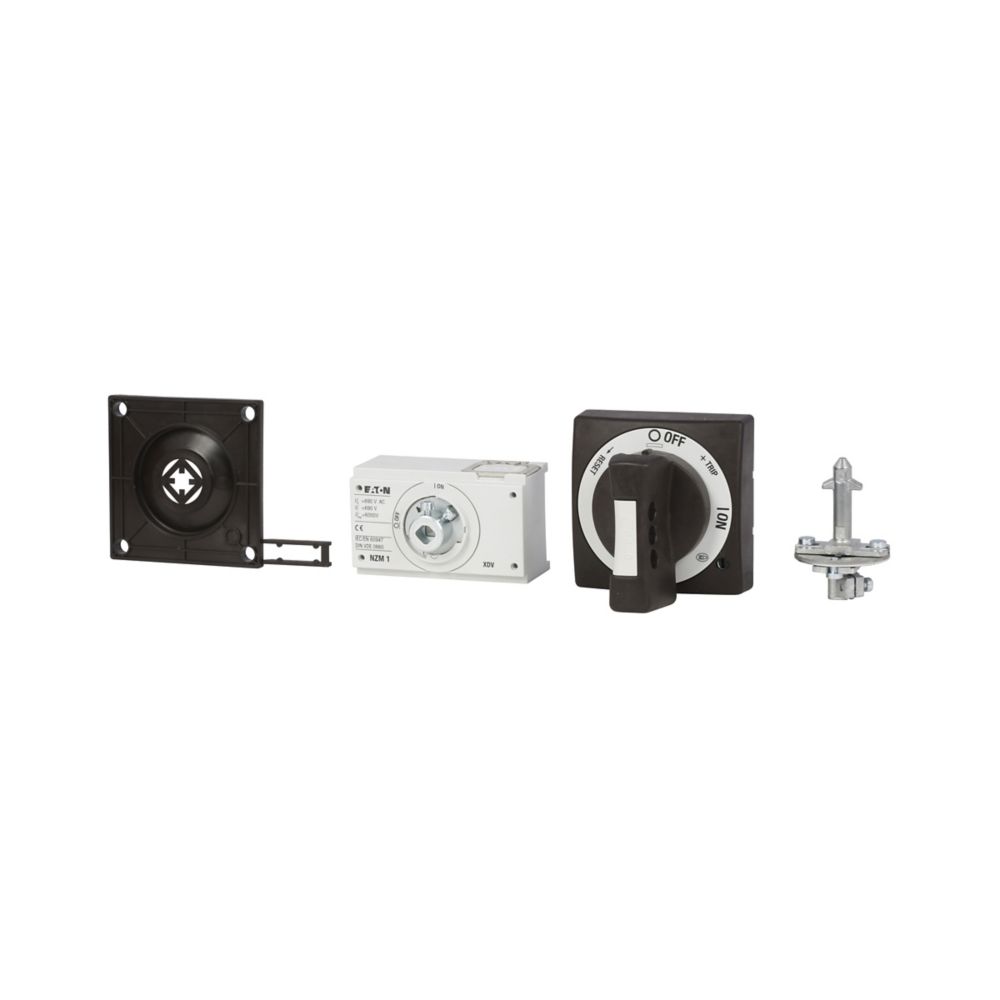

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Complete including rotary drive and coupling parts. Extension shaft additionally required. Cannot be combined with mechanical interlock For extremely narrow installations with short extension shaft. Cannot be combined with NZM...-XDZ additional handle. External warning plate/marking plate can be clipped on. Default, black/grey. Lockable on the handle on the switch using up to 3 padlocks . Lockable in 0 position on handle, lockable on the 0 position on the switch using up to 3 padlocks. Can also be modified in I position. With door interlock. Door interlock not defeated in the locked OFF position. Door opens only with active rotation beyond the 0 position. Can be modified such that it can be defeated from the outside using a screwdriver. Can be used for: NZM1, N(S)1
Documente
Specificatii
| Model/type | |
| With restart blockage | No |
| With key lock | No |
| With extension shaft | No |
| Options | |
| Padlock locking | Yes |
| Colour | |
| Colour | Black |
| Application | |
| Suitable for emergency stop | No |
| Suitable for power circuit breaker | Yes |
| Suitable for switch disconnector | Yes |
| Protection | |
| Degree of protection (NEMA) | 4X, 12 |
