Descriere
Releu Suprasarcina Termica Motor Tesys - 0,4 - 0,63 A - Clasa 10A
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as change-over contact | 0 |
| Options | |
| Reset function automatic | Yes |
| Reset function input | No |
| Reset function push-button | Yes |
| Electrical | |
| Max. rated operation voltage Ue | 690 V |
| Adjustable current range | 0.4 A |
| Other | |
| Release class | CLASS 10 A |
| Mounting/installation | |
| Mounting method | Direct attachment |
| Package 1 | |
| volume | 332,024 cm3 |
| weight | 137 g |
| length | 8,8 cm |
| width | 7,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110346749 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,62 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 43389110346747 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 69,924 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 384 |
| qmin | 384 |
| um | PF |

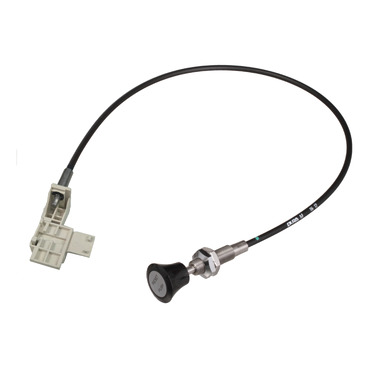

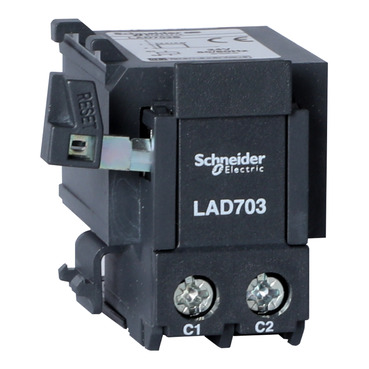

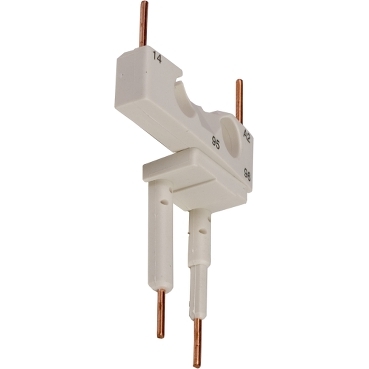

Accesorii

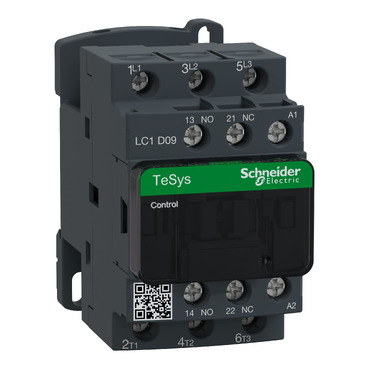

Recomandari
