Descriere

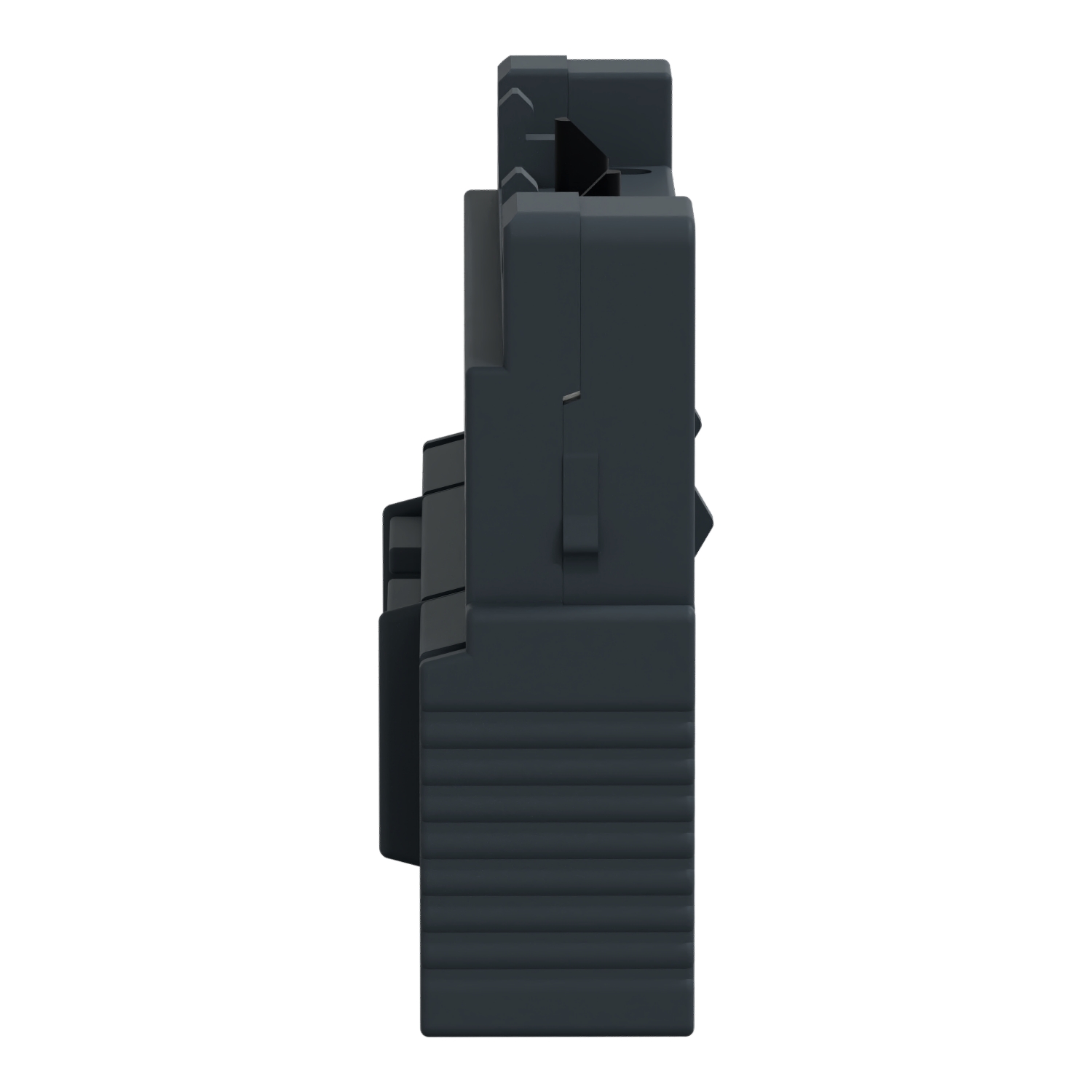

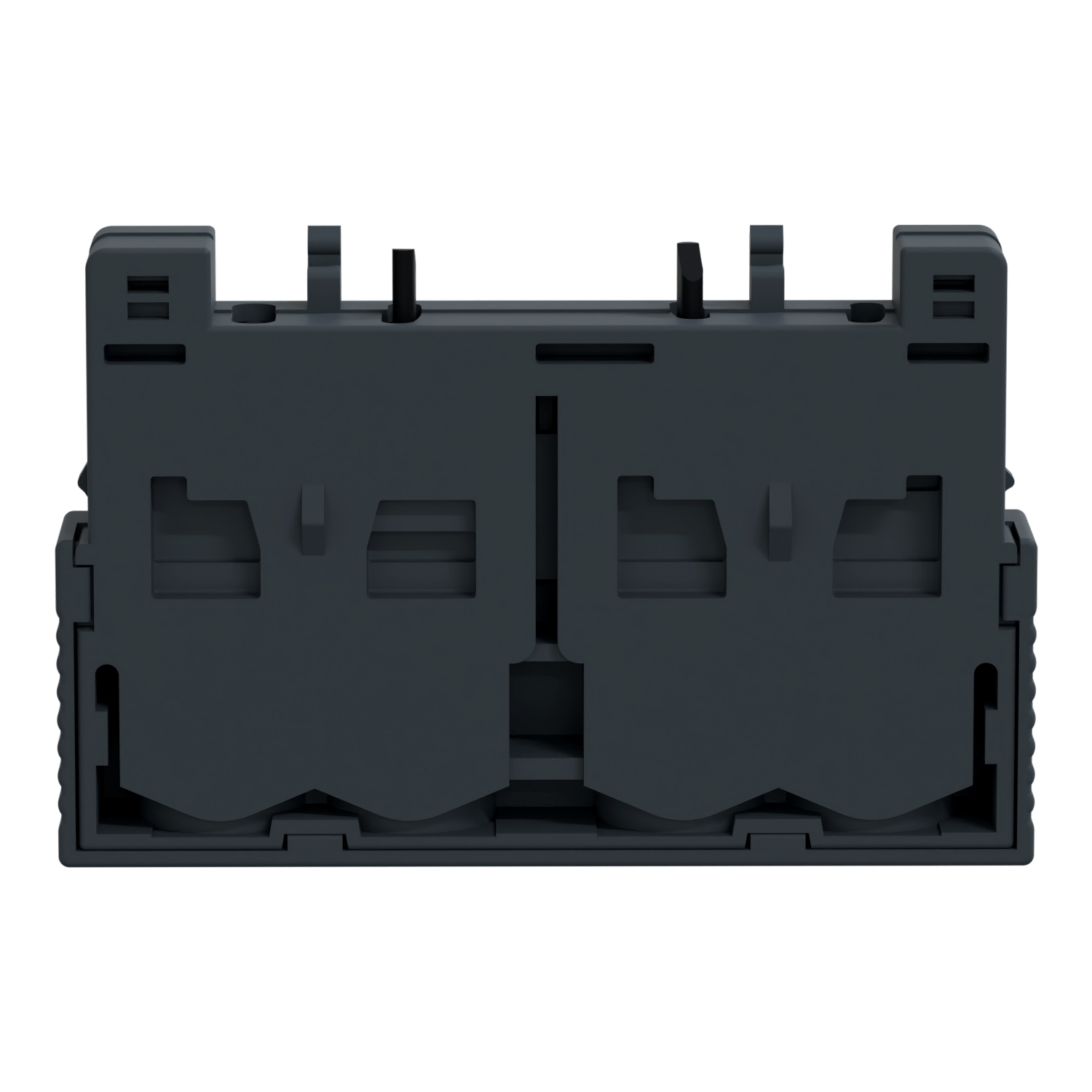

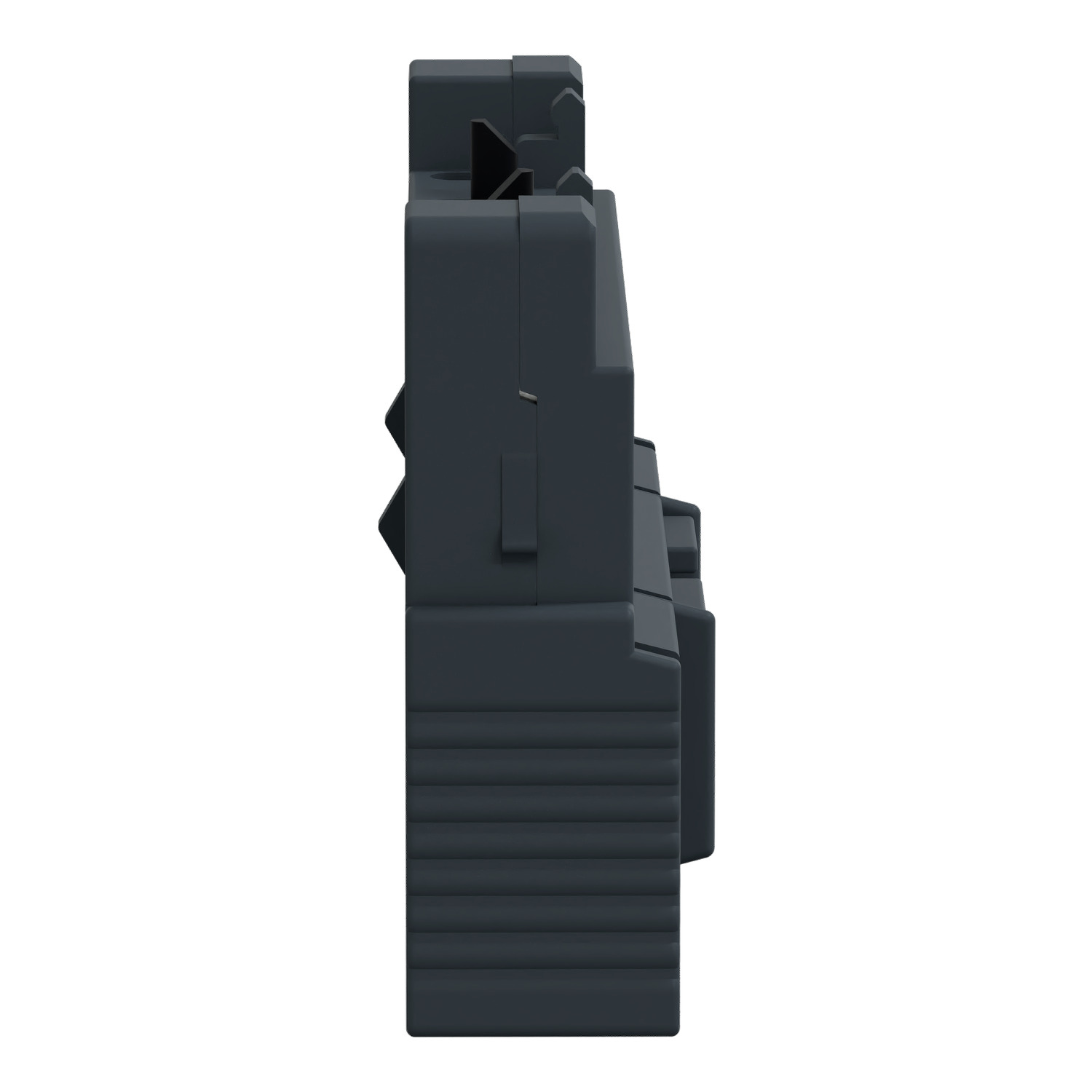

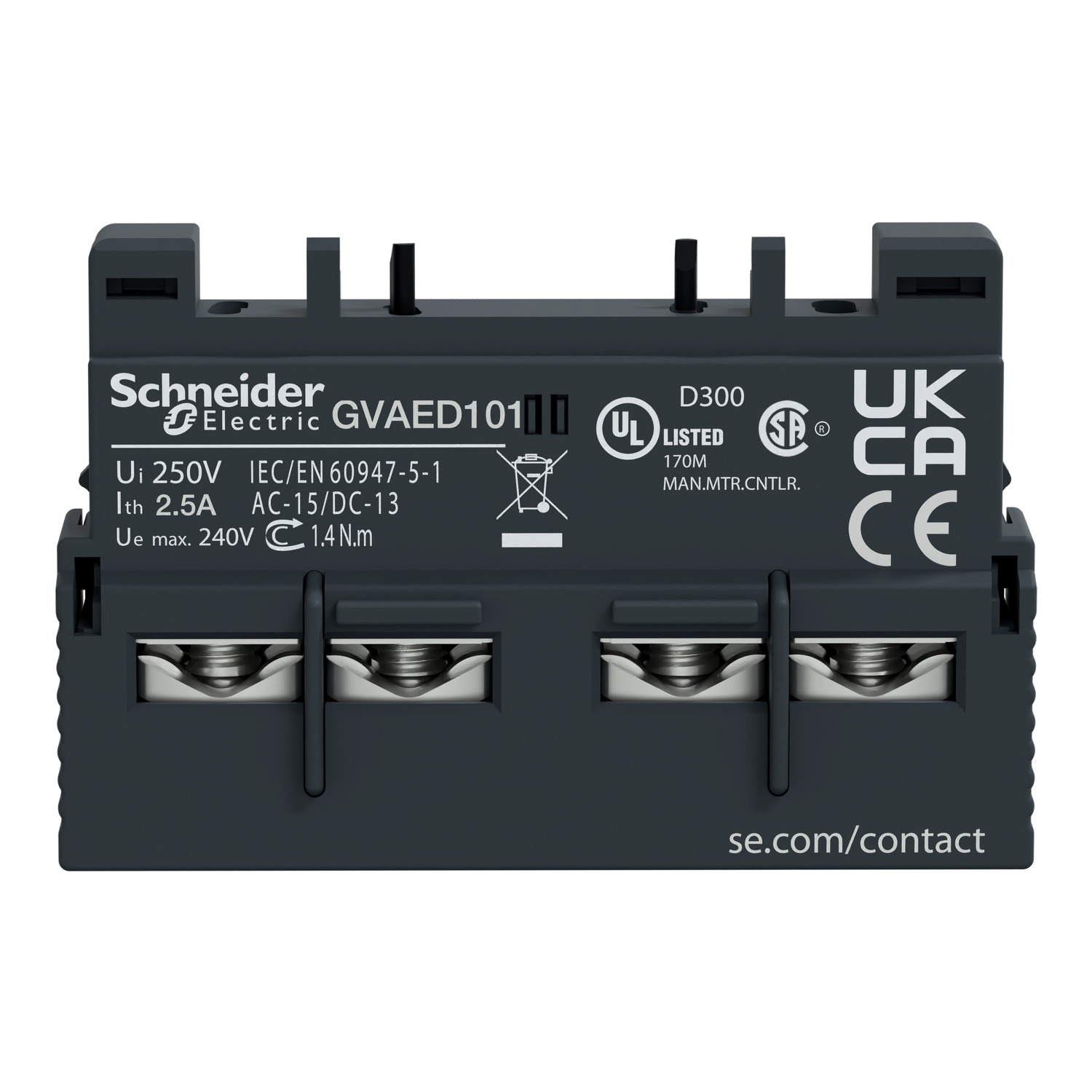

Contact Semnalizare Defectiuni Gvae - Pt. Gv3P/Gv3L - 2 No
Documente
Specificatii
| Connection | |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Model/type | |
| Model | Integrable |
| Lamp holder | None |
| Number of fault-signal switches | 1 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 0.5 A |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 36 cm3 |
| weight | 18 g |
| length | 6 cm |
| width | 5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119405478 |
| Package 2 | |
| volume | 720 cm3 |
| weight | 186 g |
| length | 16 cm |
| width | 15 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389119405475 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 4,395 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 220 |
| qmin | 220 |
| um | CT |
| gtin | 43389119405476 |
Accesorii
