Descriere

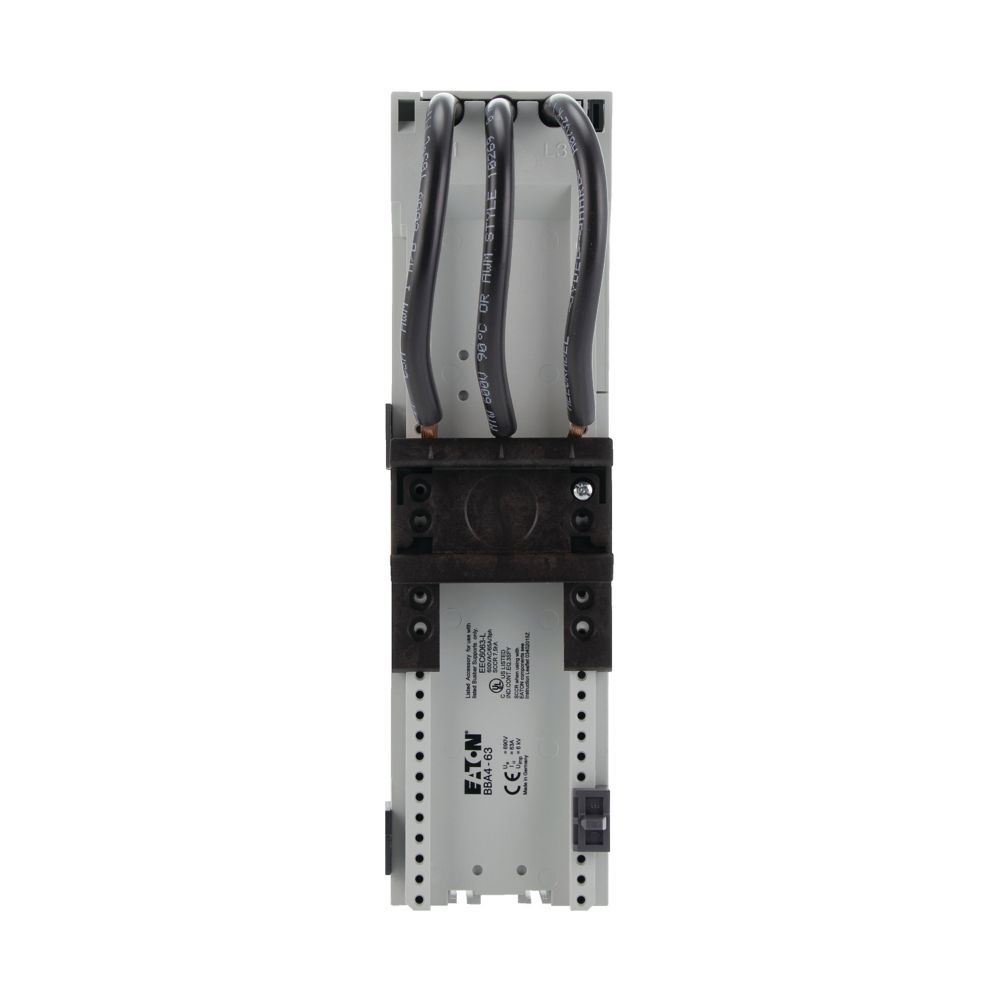

55mm busbar adapter for 60mm busbar system, one mounting rail, three prefabricated cables (AWG8/10 square millimeter) for connection of switching device, can be used for motor-protective circuit-breaker PKZM4, PKE65, rated operational current: 63A
Documente
Specificatii
| Model/type | |
| Mounting rail armament | 1 mounting rail |
| Connection | |
| Type of electric connection | Round conductor |
| Electrical | |
| Rated current In | 63 |
| Measurements | |
| Min. busbar thickness | 5 |
| Max. busbar thickness | 10 |
| Width of the adaptor | 55 |
| Rail width | 35 |
| Busbar distance | 60 |
| Package 1 | |
| volume | 0,000693 |
| weight | 0,349 |
| length | 0,202 |
| width | 0,057 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081013777 |
| Package 2 | |
| volume | 0,00495 |
| weight | 1,396 |
| length | 0,22 |
| width | 0,18 |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 4015081842575 |
| Dimensions of product | |
| Volume | 0,000693 |
| Weight | 0,347 |
| Length | 0,2 |
| Width | 0,055 |
| Depth | 0,063 |
