Descriere

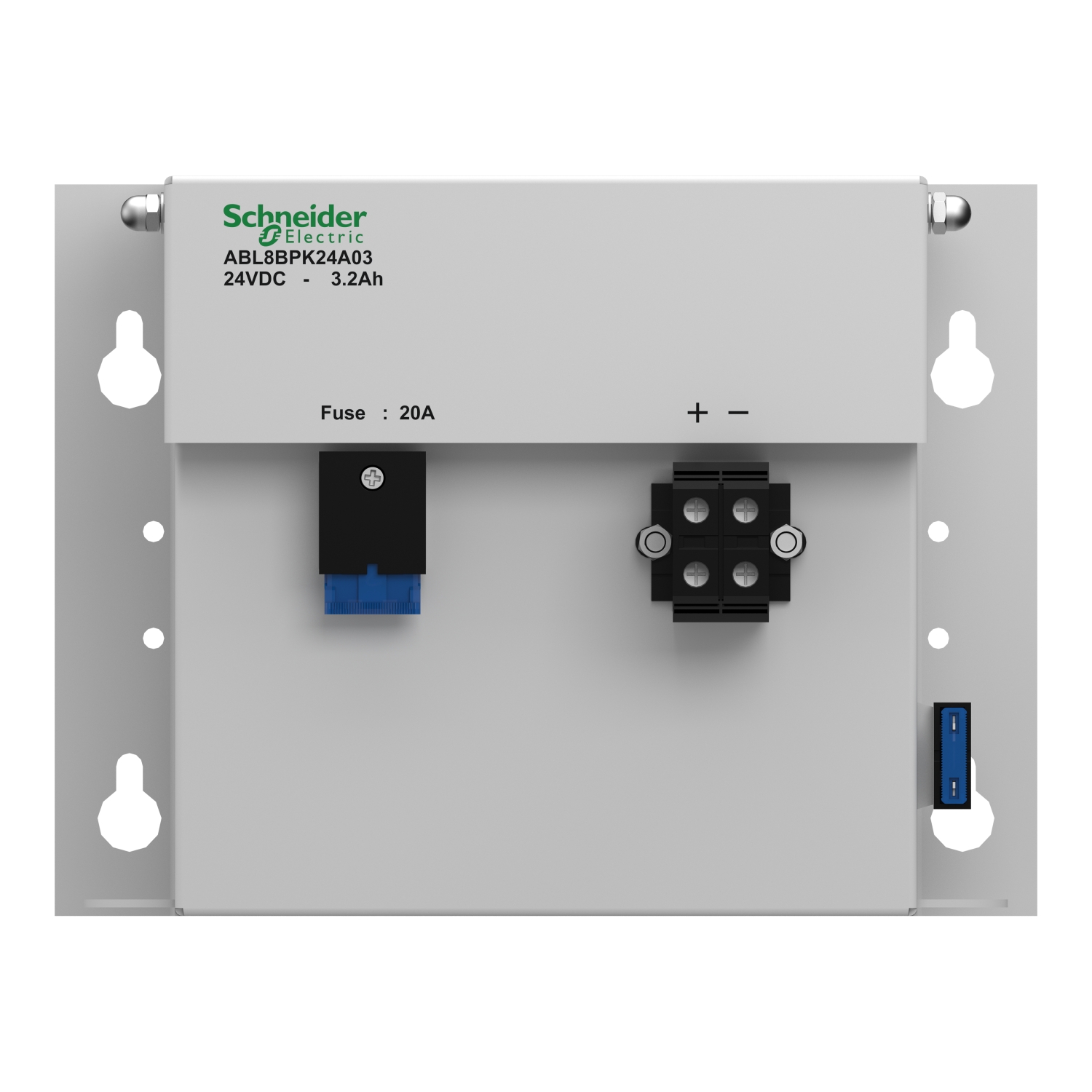

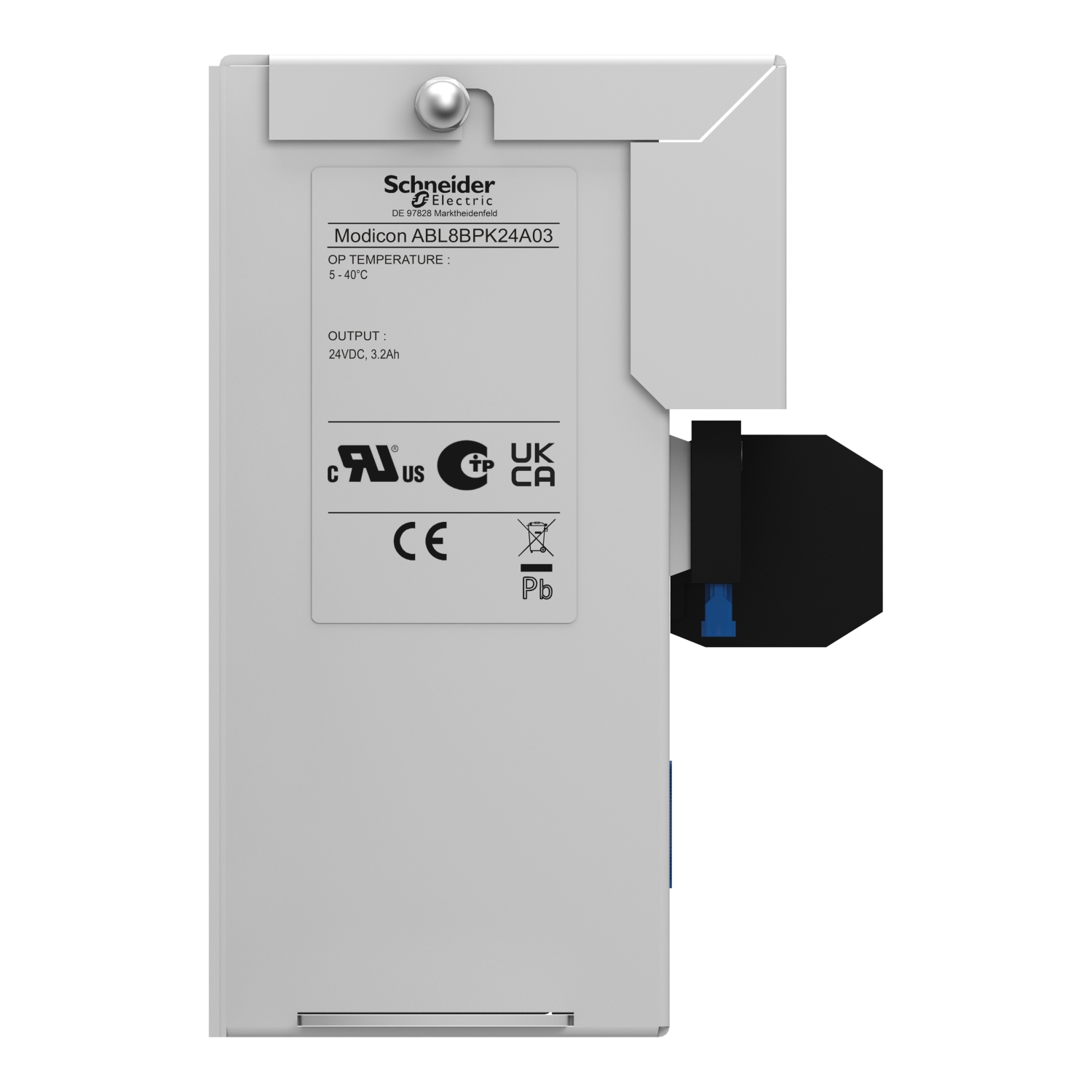

Baterie- 24 V Dc - 32 A - 3.2 Ah -Pentru Modul Control Baterie
Documente
Specificatii
| Measurements | |
| Length | 131 mm |
| Width | 184 mm |
| Size indication | Flat-Pack |
| Diameter | - |
| Weight | 3500 g |
| Height including pole | 138.5 mm |
| Application | |
| Suitable for EX-applications | No |
| Suitable for rapid charger | Yes |
| Other | |
| Other indications | Other |
| IEC indication | Other |
| Model/type | |
| Model | Other |
| Number of cells | 0 |
| Material | |
| Plastic housing | Yes |
| Operating conditions | |
| Ambient temperature | 0 °C |
| Performance | |
| Capacity | 3200 mAh |
| Electrical | |
| Nominal voltage | 24 V |
| Options | |
| Battery pack | Yes |
| Package 1 | |
| volume | 7478,3 cm3 |
| weight | 3,658 kg |
| length | 26,5 cm |
| width | 16,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119406840 |
| Package 2 | |
| volume | 360000 cm3 |
| weight | 111,308 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 73389119406849 |
