Descriere

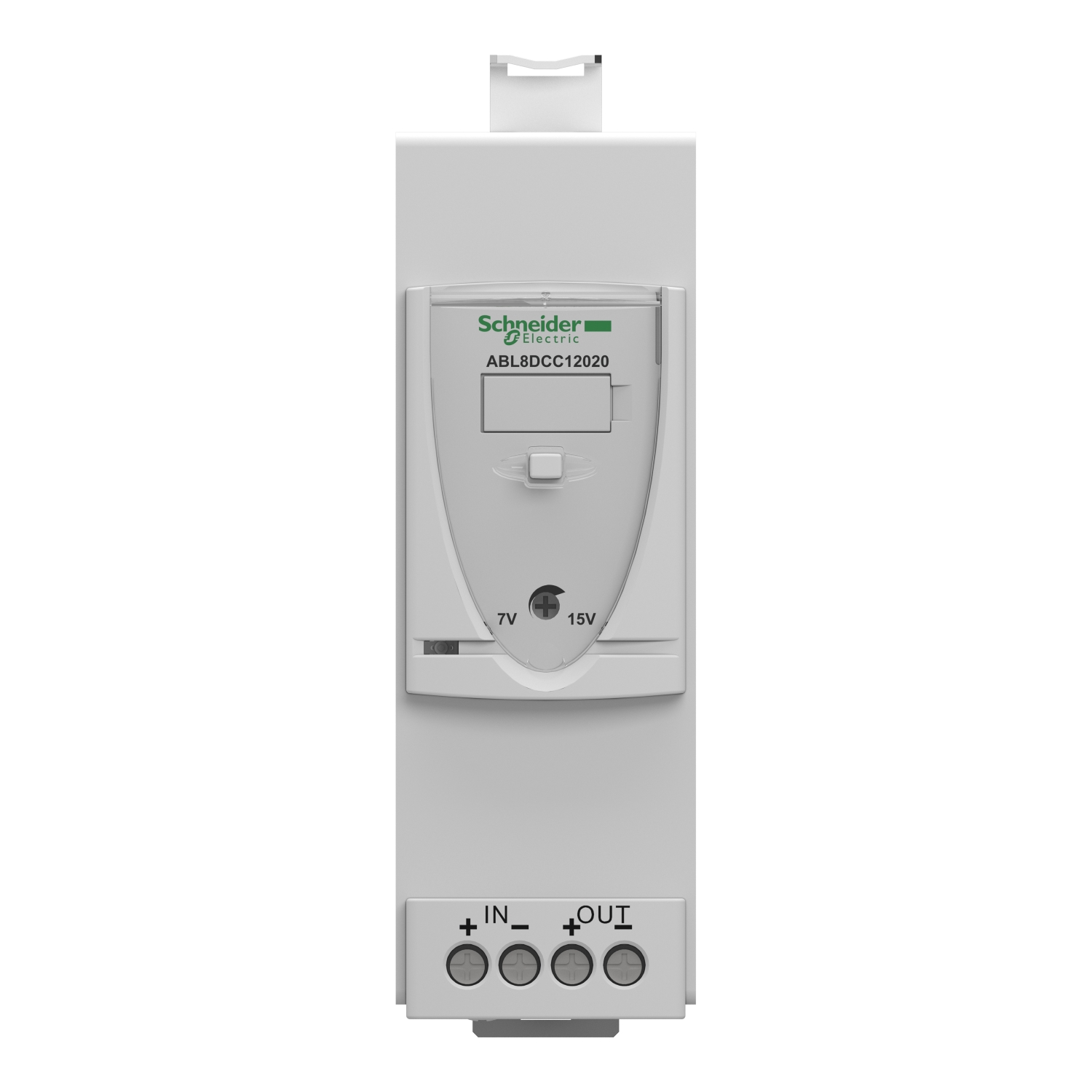

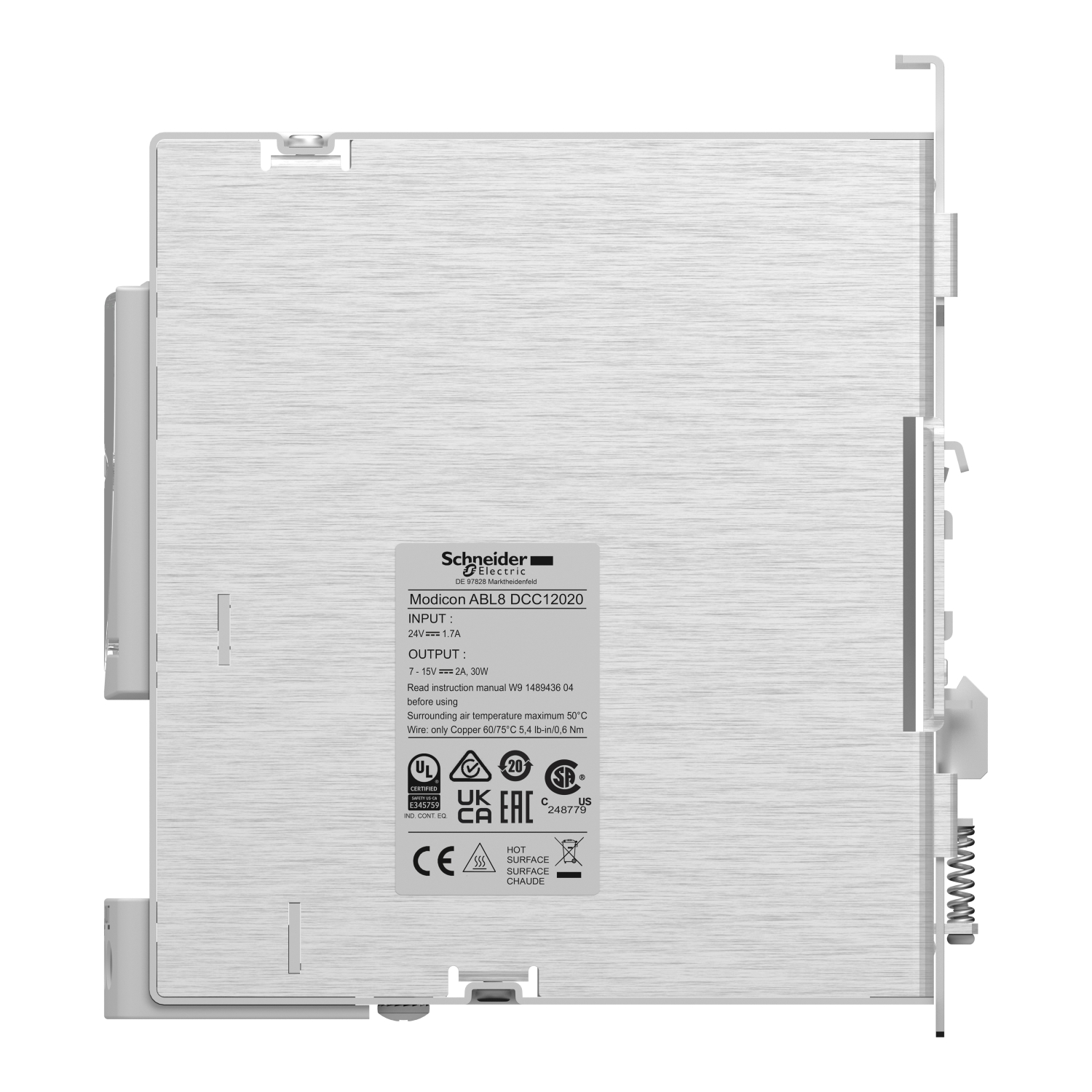

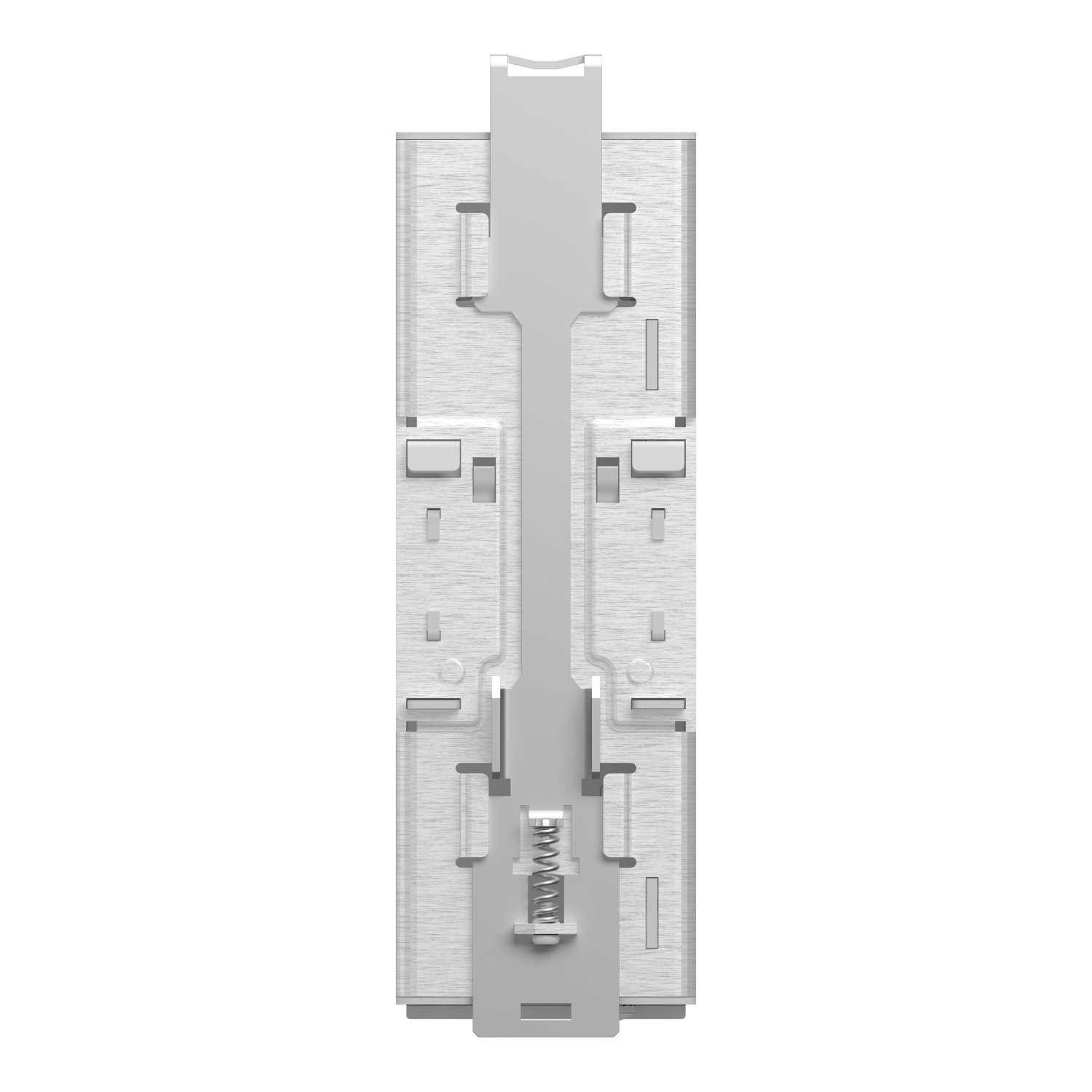

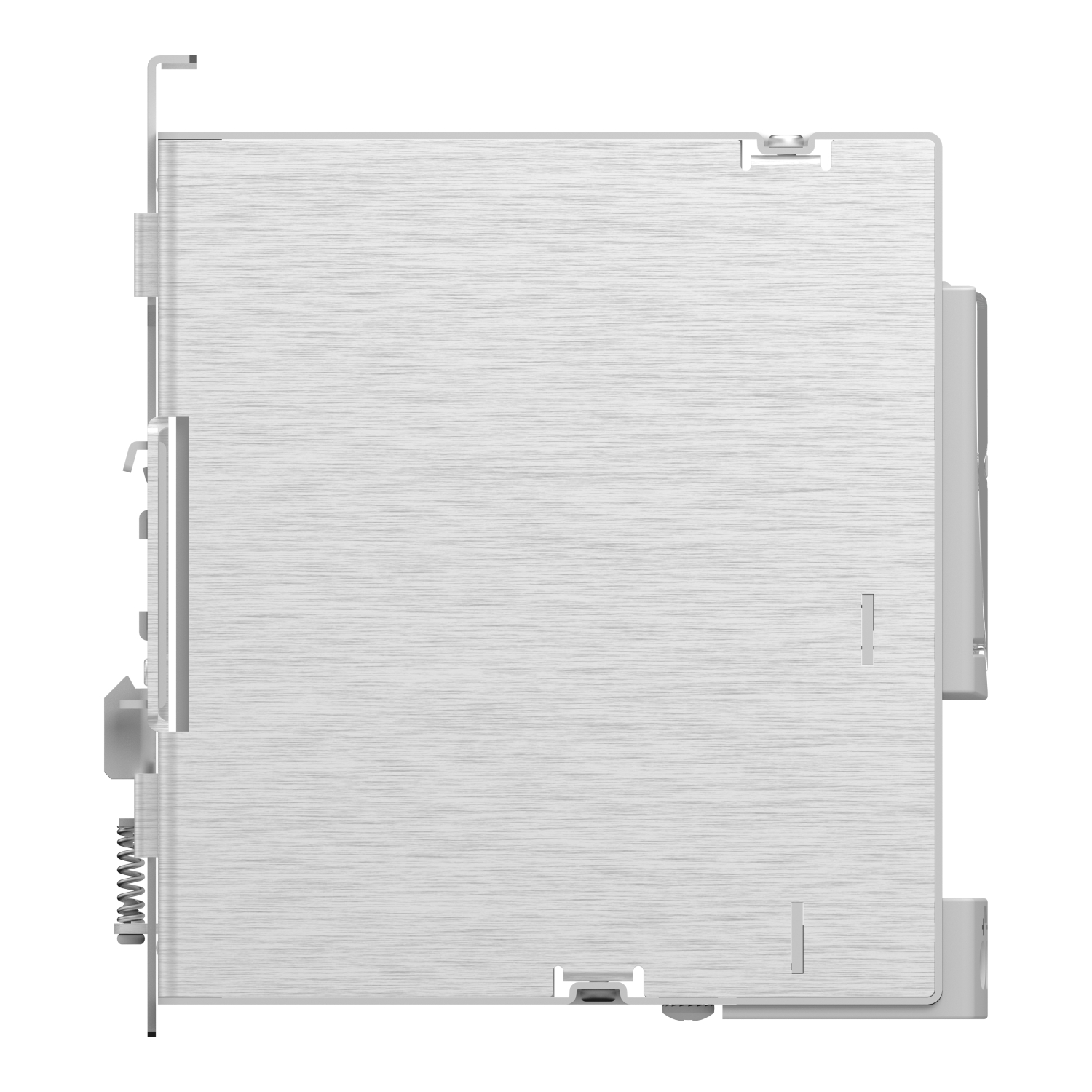

Modul Convertizor 24 W - 24 - 28.8 V Cc, 12 V Cc - 2 A - Pentru Smps Regulat
Documente
Specificatii
| Connection | |
| Type of electric connection | Screw connection |
| Mounting/installation | |
| Direct mounting possible | No |
| Suitable for rail mounting | Yes |
| Wall mounting possible | No |
| Electrical | |
| Voltage type (supply voltage) | DC |
| 2nd secondary output voltage | - |
| Max. output current 2 | - |
| Nominal value output current 2 | - |
| Nominal value output current 1 | 2 A |
| Power output | 24 W |
| Max. output current 3 | - |
| Rated supply voltage AC 50 Hz | - |
| Rated supply voltage AC 60 Hz | - |
| Rated supply voltage DC | 24 V |
| Nominal value output current 3 | - |
| Nominal value output voltage 1 | 12 V |
| Nominal value output voltage 3 | - |
| Nominal value output voltage 2 | - |
| Max. output current 1 | 2 A |
| Output voltage stabilized | Yes |
| 3rd secondary output voltage | - |
| Power consumption | - |
| 1st secondary output voltage | 7 V |
| Secondary voltage adjustable | Yes |
| Measurements | |
| Width in number of modular spacings | - |
| Built-in height | - |
| Height | 143 mm |
| Width | 44 mm |
| Built-in width | - |
| Depth | 140 mm |
| Options | |
| Stabilized | Yes |
| Suitable for distribution board | Yes |
| Short-circuit-proof | Yes |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | - |
| Application | |
| Suitable for safety functions | Yes |
| Package 1 | |
| volume | 1555,125 cm3 |
| weight | 601 g |
| length | 16,5 cm |
| width | 14,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119406895 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 12,161 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 18 |
| qmin | 18 |
| um | CT |
| gtin | 43389119406893 |
