Descriere

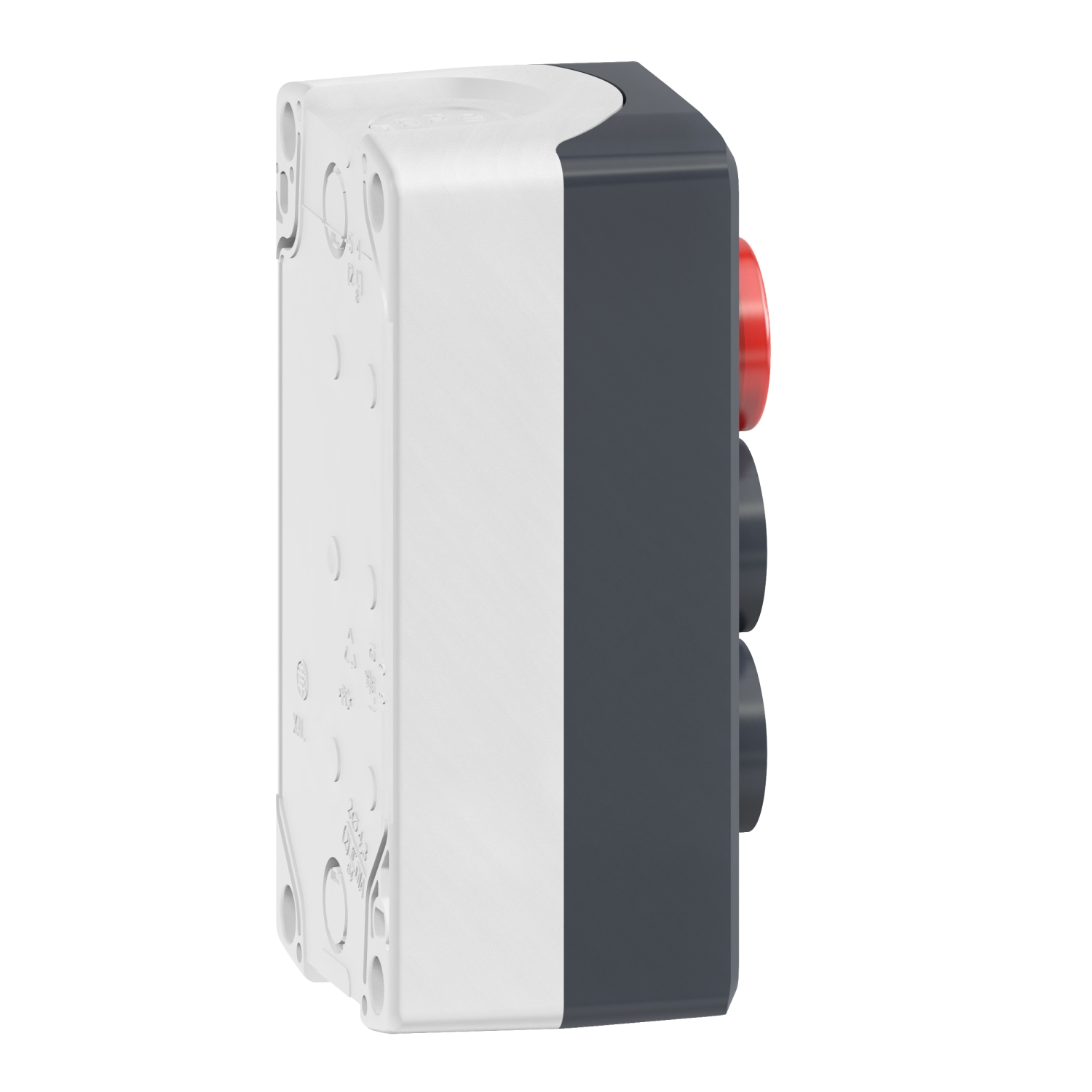

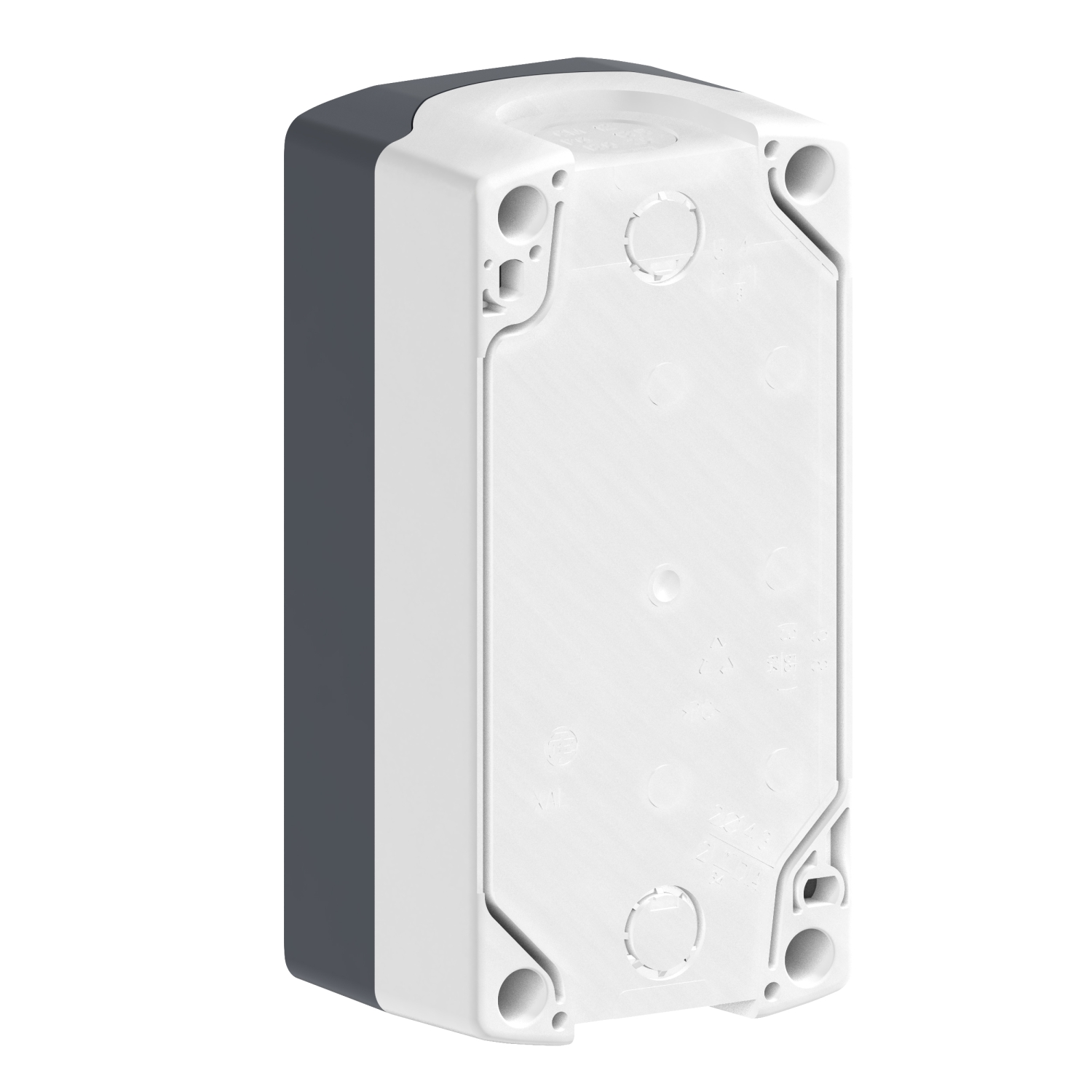

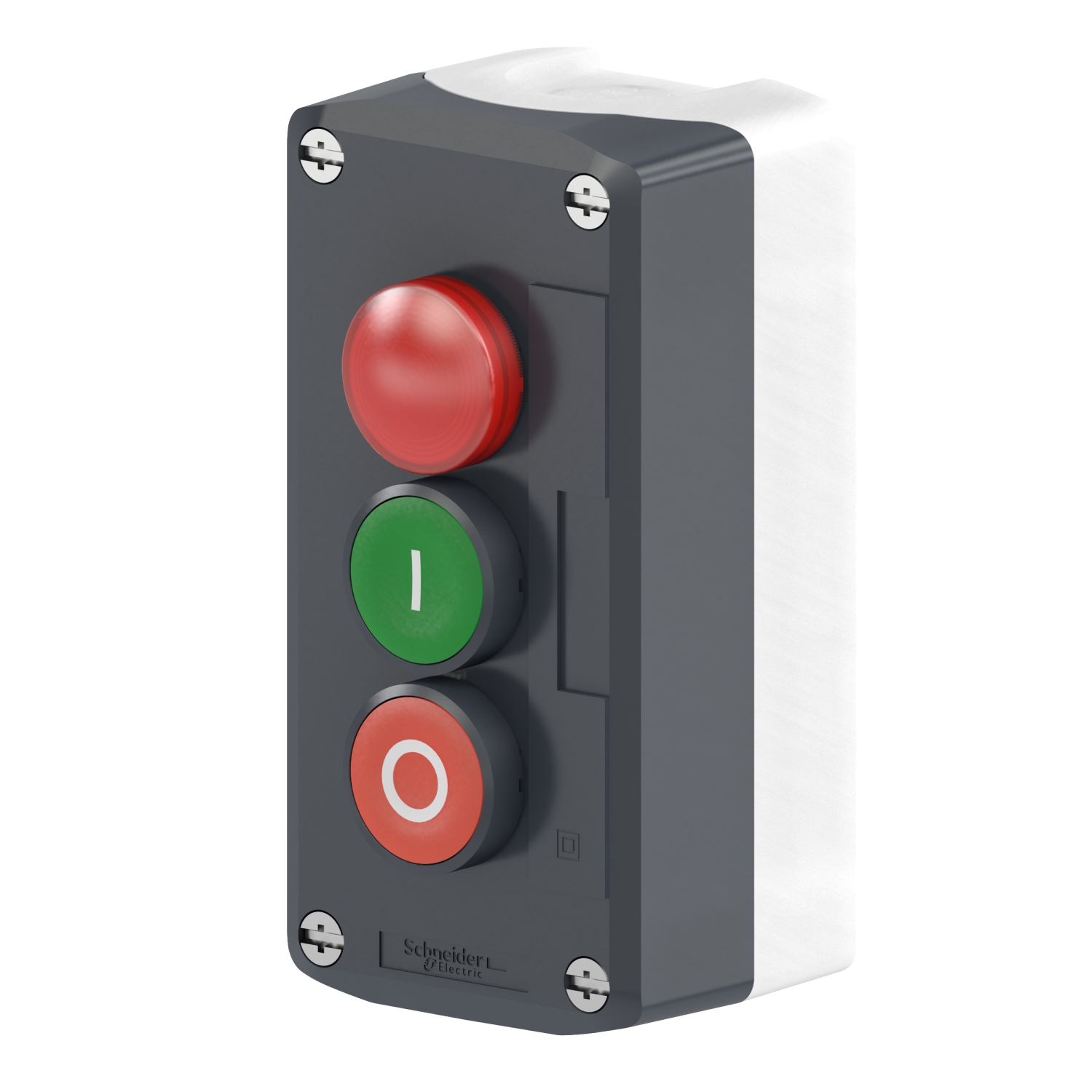

Post De Comanda Xal-D - Functie De Pornire Sau Oprire - 1 No + 1 Nc
Documente
Specificatii
| Model/type | |
| Number of indicator lights | 1 |
| Number of selector switches | 0 |
| Number of push buttons | 2 |
| Number of mushroom-shaped push-buttons | 0 |
| Number of key switches | 0 |
| Number of command positions | 2 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 24 V |
| Rated control supply voltage AC 60 Hz | 24 V |
| Rated control supply voltage DC | 24 V |
| Material | |
| Housing material | Plastic |
| Application | |
| Suitable for emergency stop | No |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Colour | |
| Colour housing cover | Grey |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 974,12 cm3 |
| weight | 284 g |
| length | 14,2 cm |
| width | 9,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110114430 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 7,673 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 25 |
| qmin | 25 |
| um | CT |
| gtin | 43389110114438 |
