Descriere

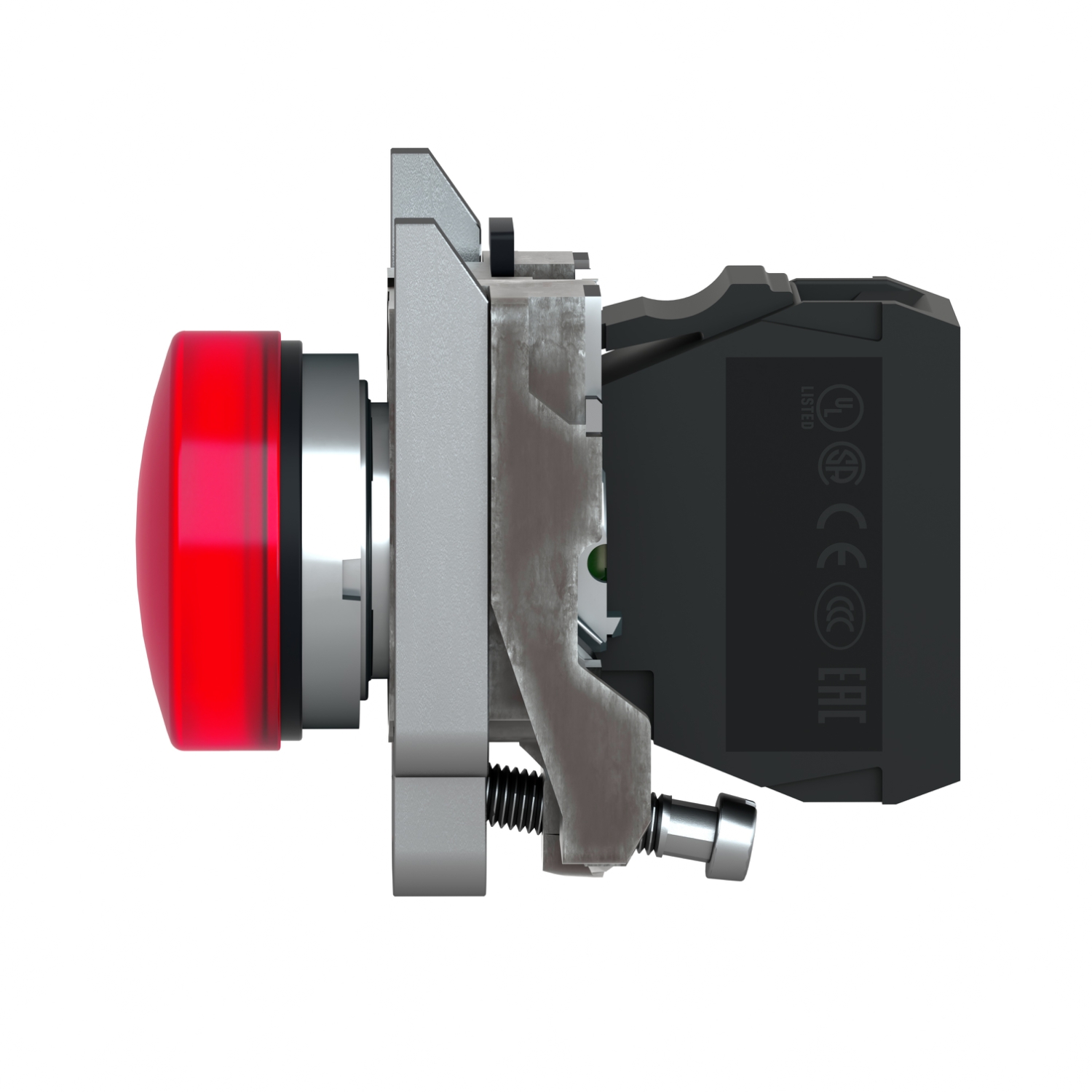

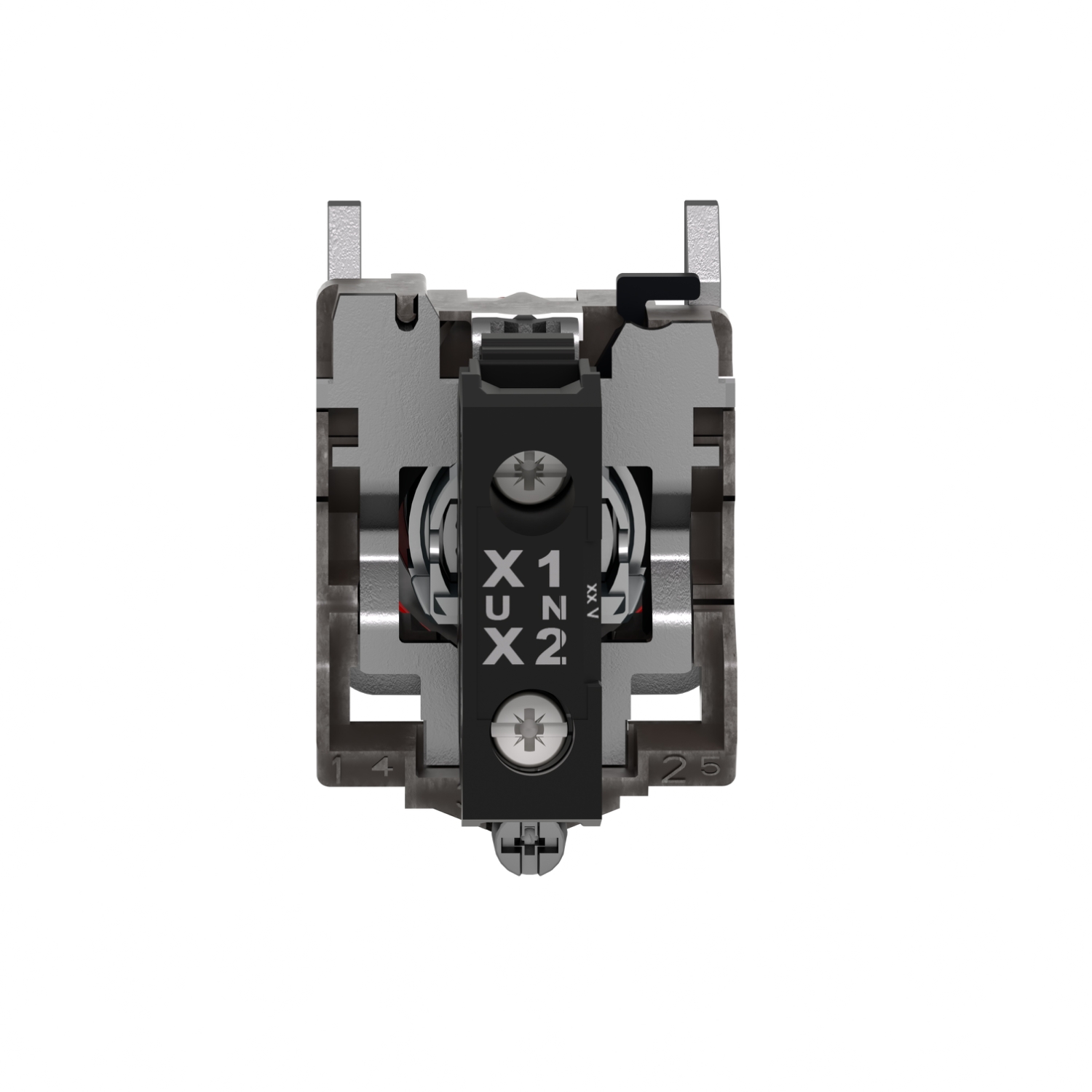

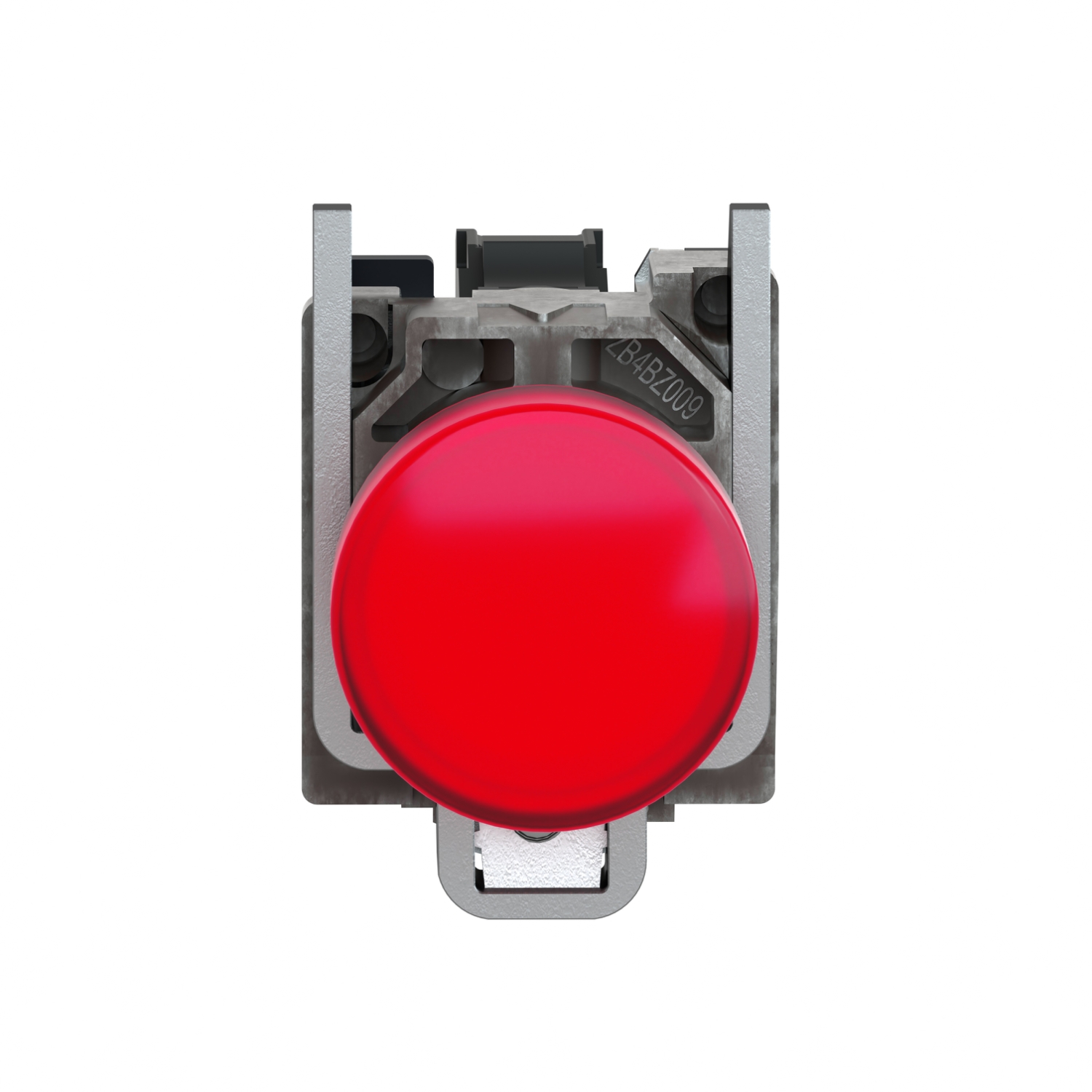

Lampa pilot complet rosie Ø22 lentile netede cu LED integral 24V
Documente
Specificatii
| Model/type | |
| Number of indicator lights | 1 |
| With light source | Yes |
| Type of lamp socket | LED |
| Construction type lens | Round |
| With front ring | Yes |
| Type of lens | Flat |
| Colour | |
| Colour lens | Red |
| Colour front ring | Chrome |
| Electrical | |
| Rated operating voltage Ue | 24 V |
| Voltage type | AC/DC |
| Connection | |
| Type of electric connection | Screw connection |
| Measurements | |
| Width opening | - |
| Hole diameter | 22.5 mm |
| Height opening | - |
| Material | |
| Material front ring | Metal |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 13 |
| Package 1 | |
| volume | 161,568 cm3 |
| weight | 78 g |
| length | 5,4 cm |
| width | 3,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110891935 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 12,166 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 150 |
| qmin | 150 |
| um | CT |
| gtin | 43389110891933 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 107,692 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 1200 |
| qmin | 1200 |
| um | PF |

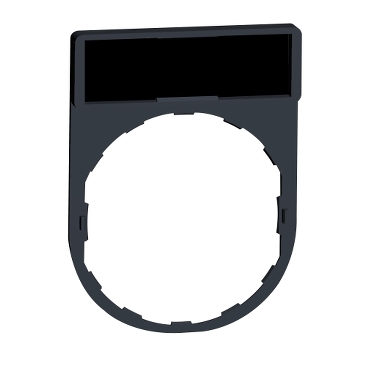

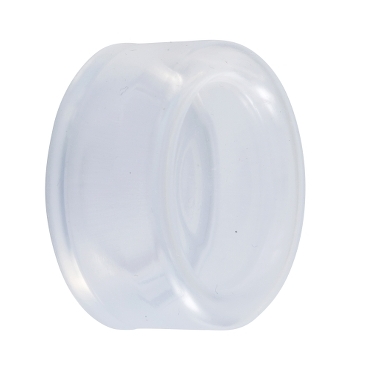

Accesorii
