Descriere

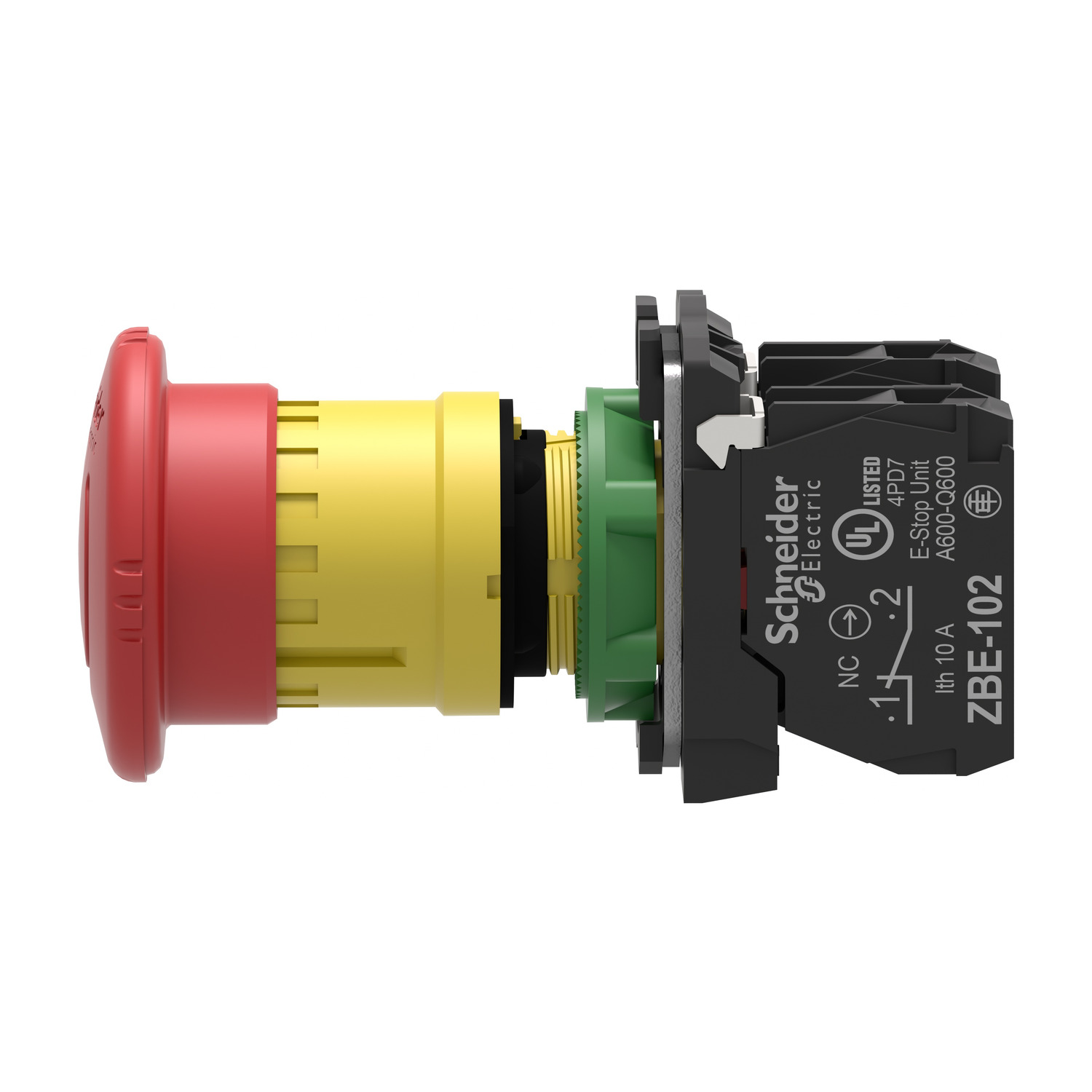

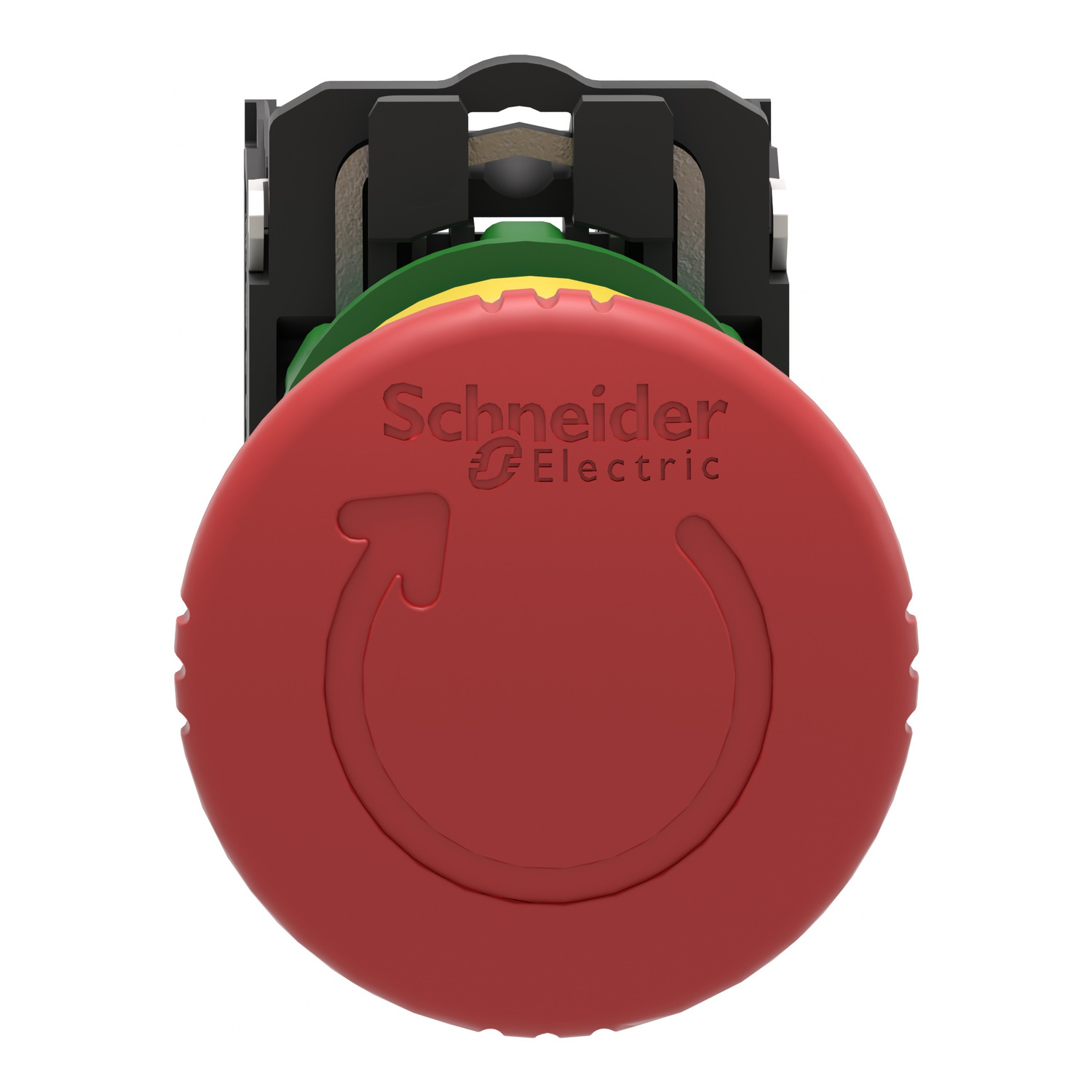

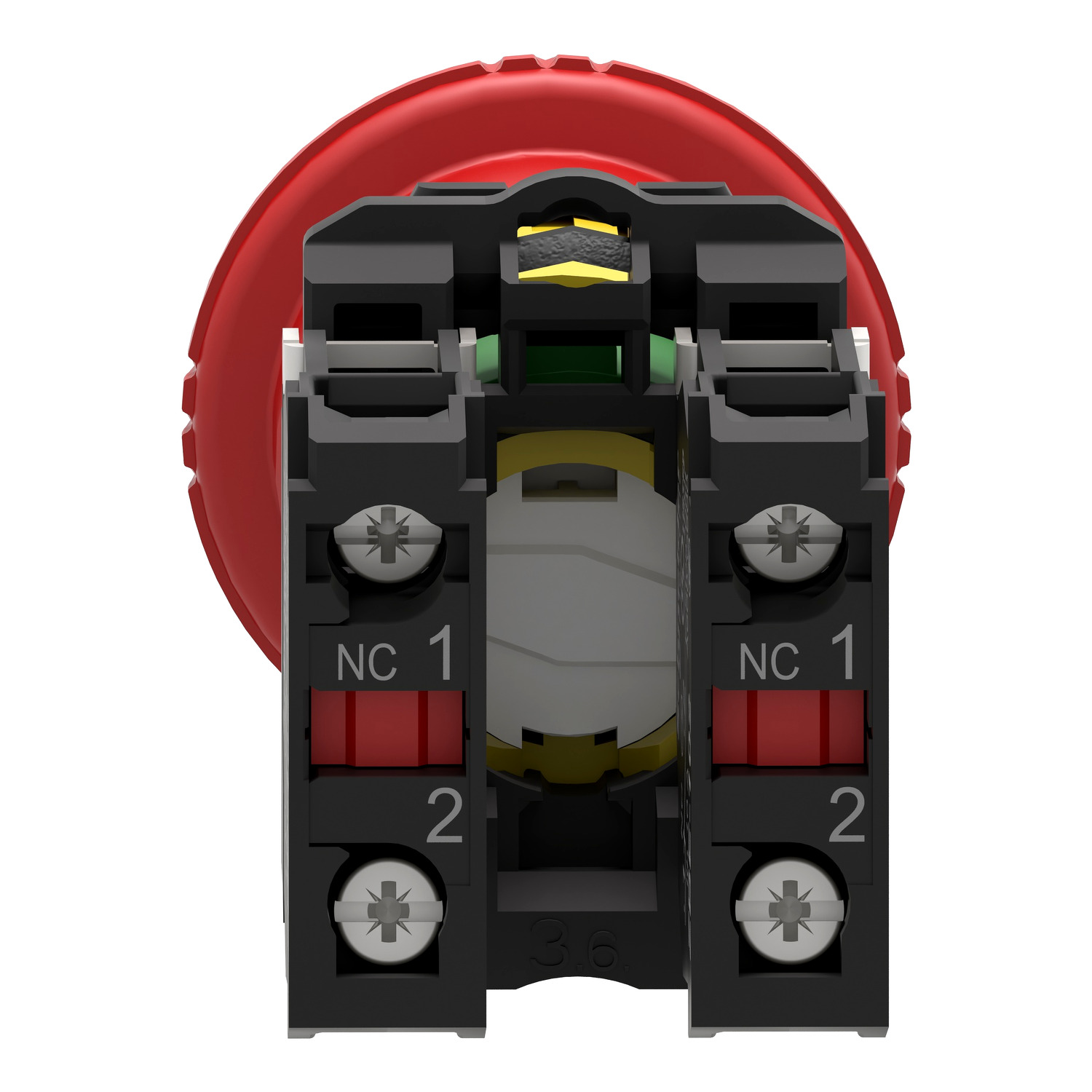

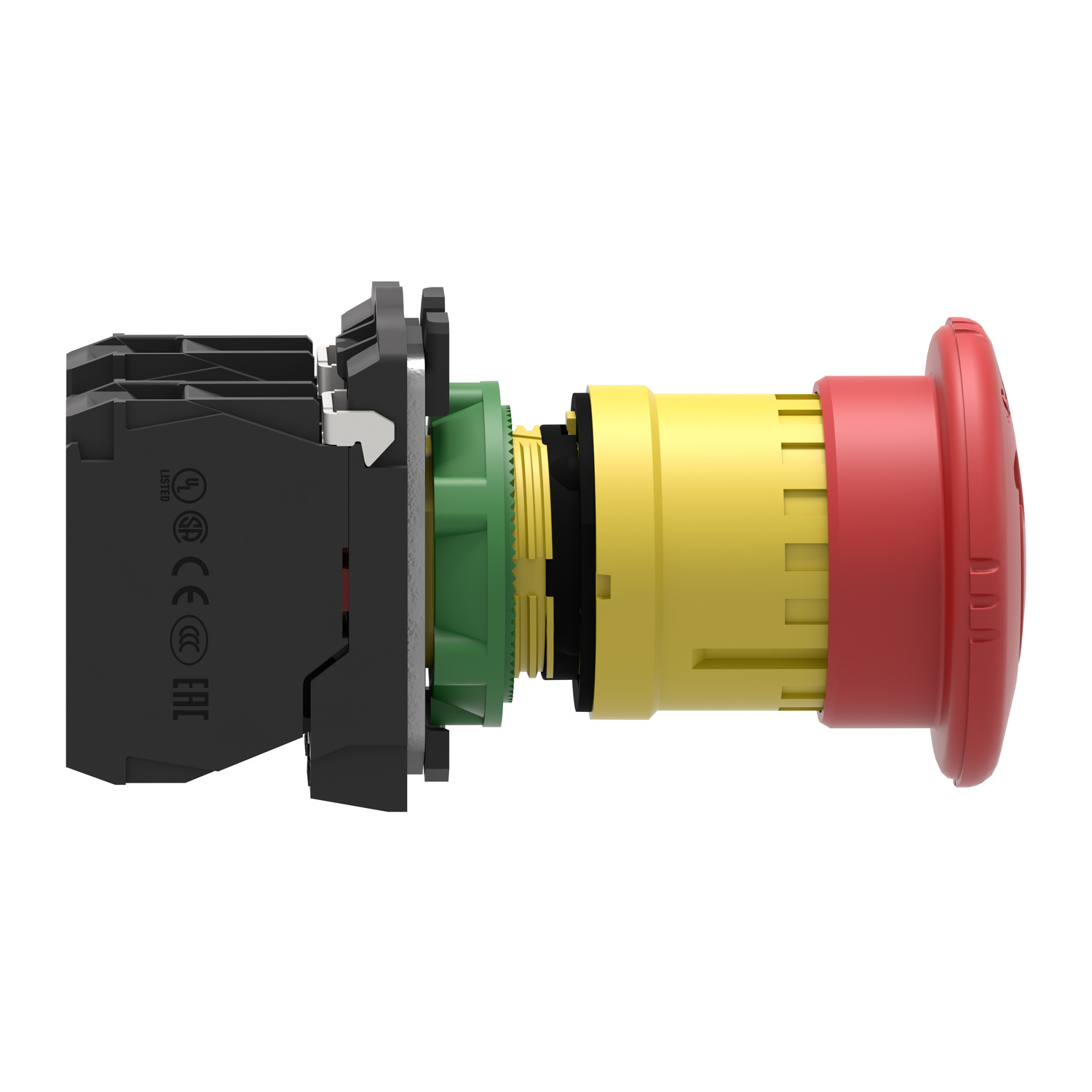

Ø40 Oprire de Urgenta Rosie, Oprirea declansatorului Ø22
Documente
Specificatii
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 2 |
| Connection type auxiliary circuit | Screw connection |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | Other |
| Model/type | |
| With lighting | No |
| Electrical | |
| Supply voltage lamp | - |
| Measurements | |
| Hole diameter | 22.5 mm |
| Diameter cap | 40 mm |
| Mounting/installation | |
| Mounting method | Built-in |
| Other | |
| Unlocking method | Turn-release |
| Package 1 | |
| volume | 209,088 cm3 |
| weight | 66 g |
| length | 8,8 cm |
| width | 5,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110368666 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 5,801 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 80 |
| qmin | 80 |
| um | CT |
| gtin | 43389110368664 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 57,724 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 640 |
| qmin | 640 |
| um | PF |
