Descriere

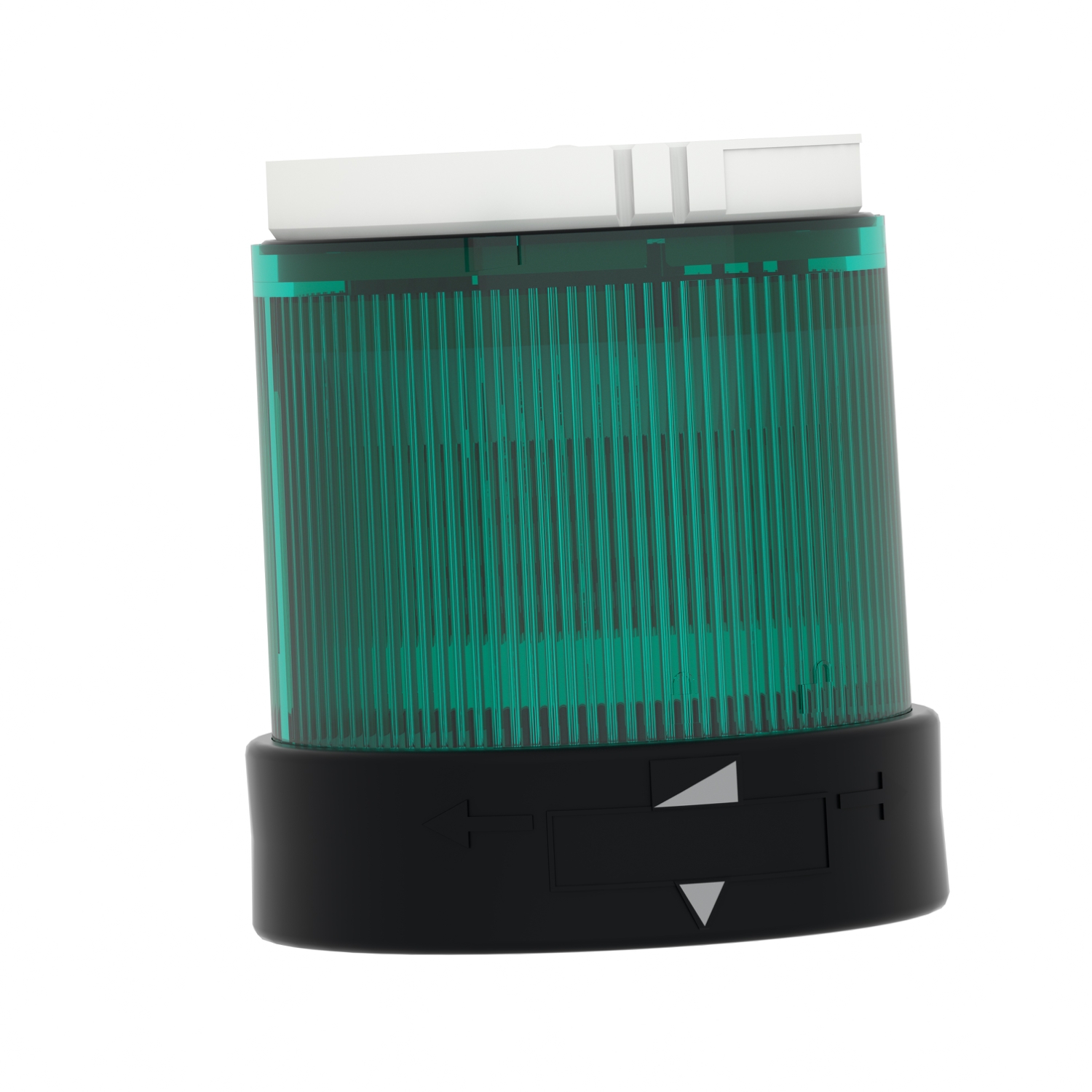

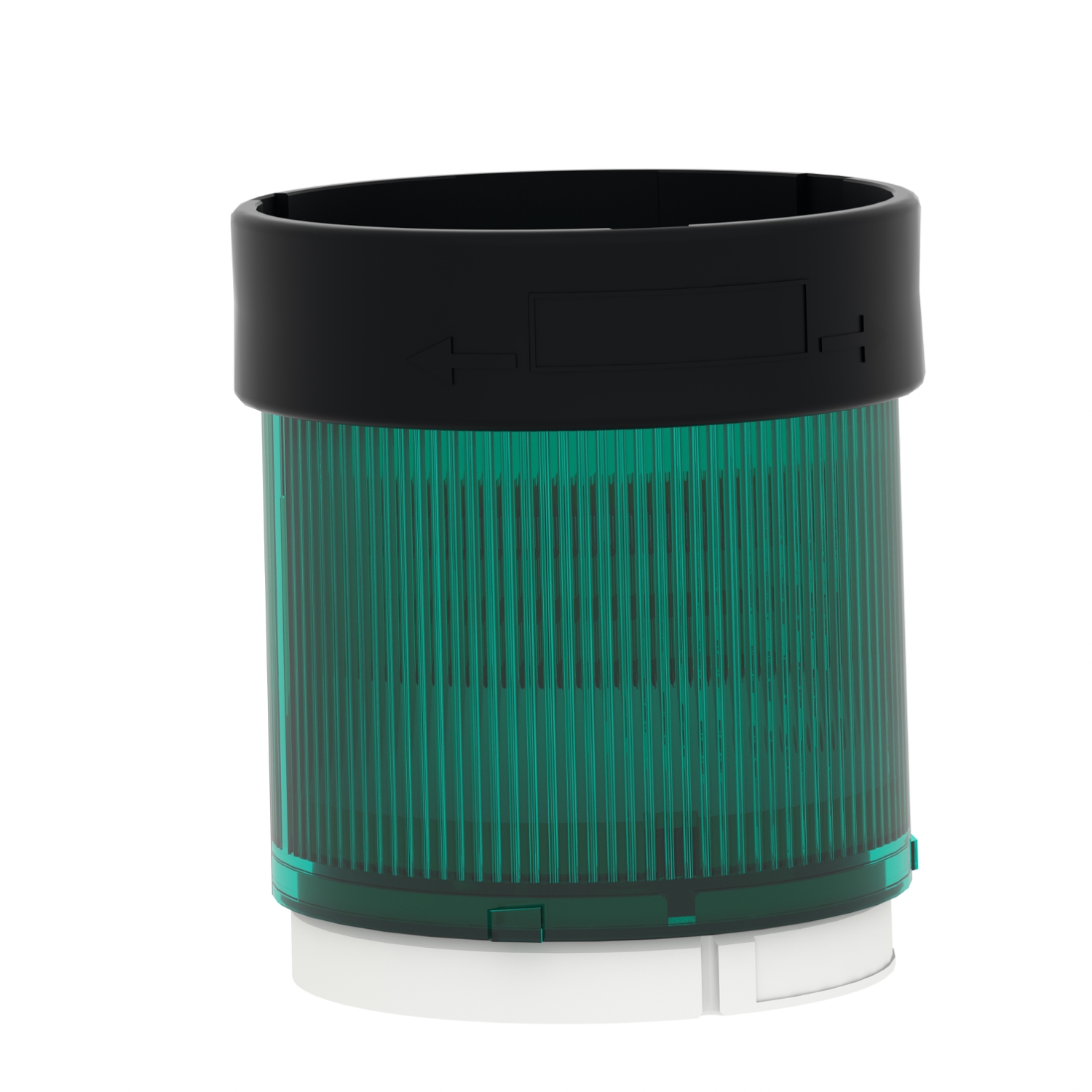

unitate iluminata, lumina constanta, verde, 24 V c.a. c.c.
Documente
Specificatii
| Colour | |
| Colour | Green |
| Housing colour | Black |
| Model/type | |
| Function | Continuous light |
| Lamp type | LED |
| Protection | |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 4X |
| Electrical | |
| Voltage type | AC/DC |
| Operating voltage AC 50 Hz | 24 V |
| Operating voltage AC 60 Hz | 24 V |
| Operating voltage DC | 24 V |
| Measurements | |
| Outer diameter | 70 mm |
| Package 1 | |
| volume | 586,717 cm3 |
| weight | 137,4 g |
| length | 9,137 cm |
| width | 8,067 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110144260 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 5,542 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 23389110144264 |
| Package 3 | |
| volume | 384000 cm3 |
| weight | 53,66 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 288 |
| qmin | 288 |
| um | PF |
