Descriere

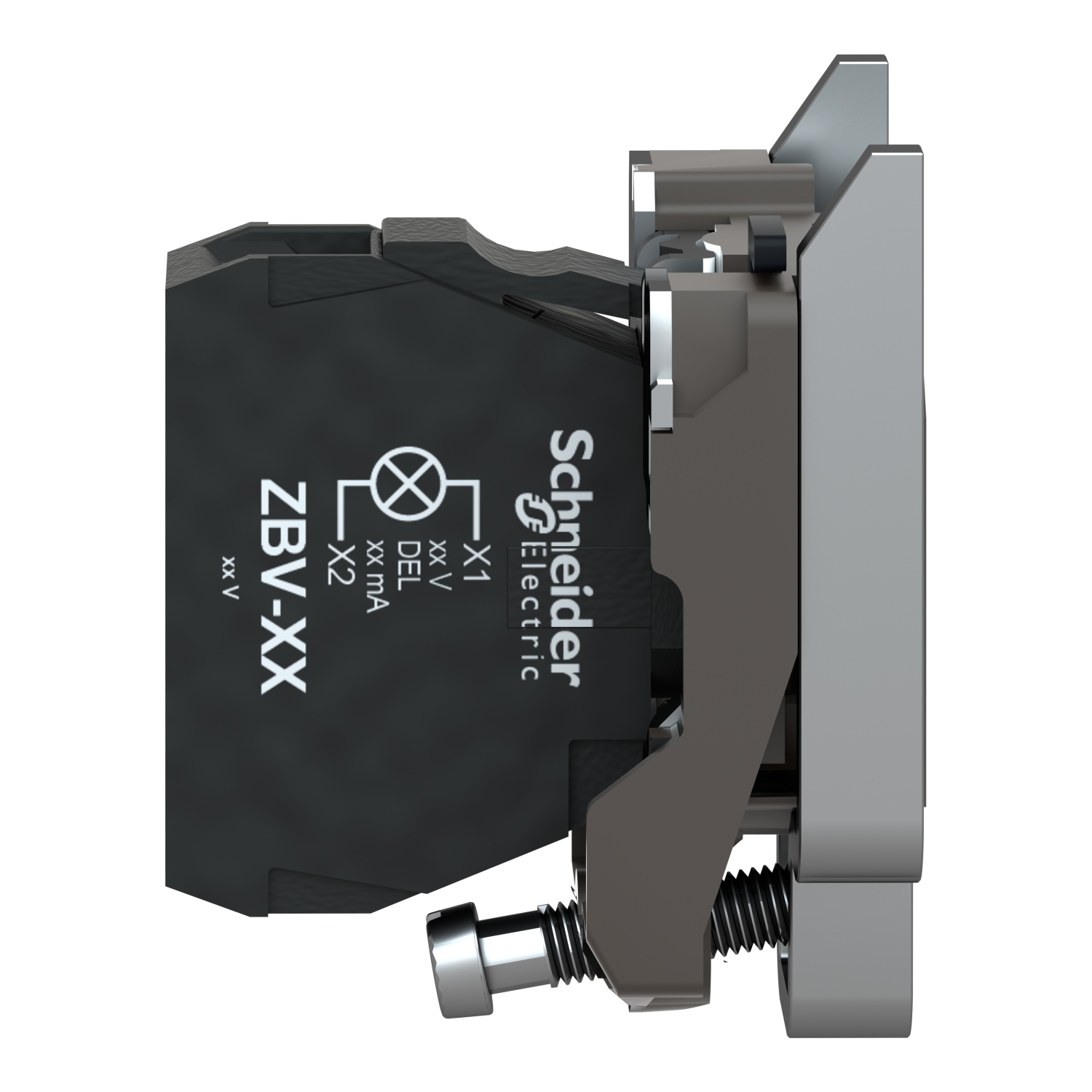

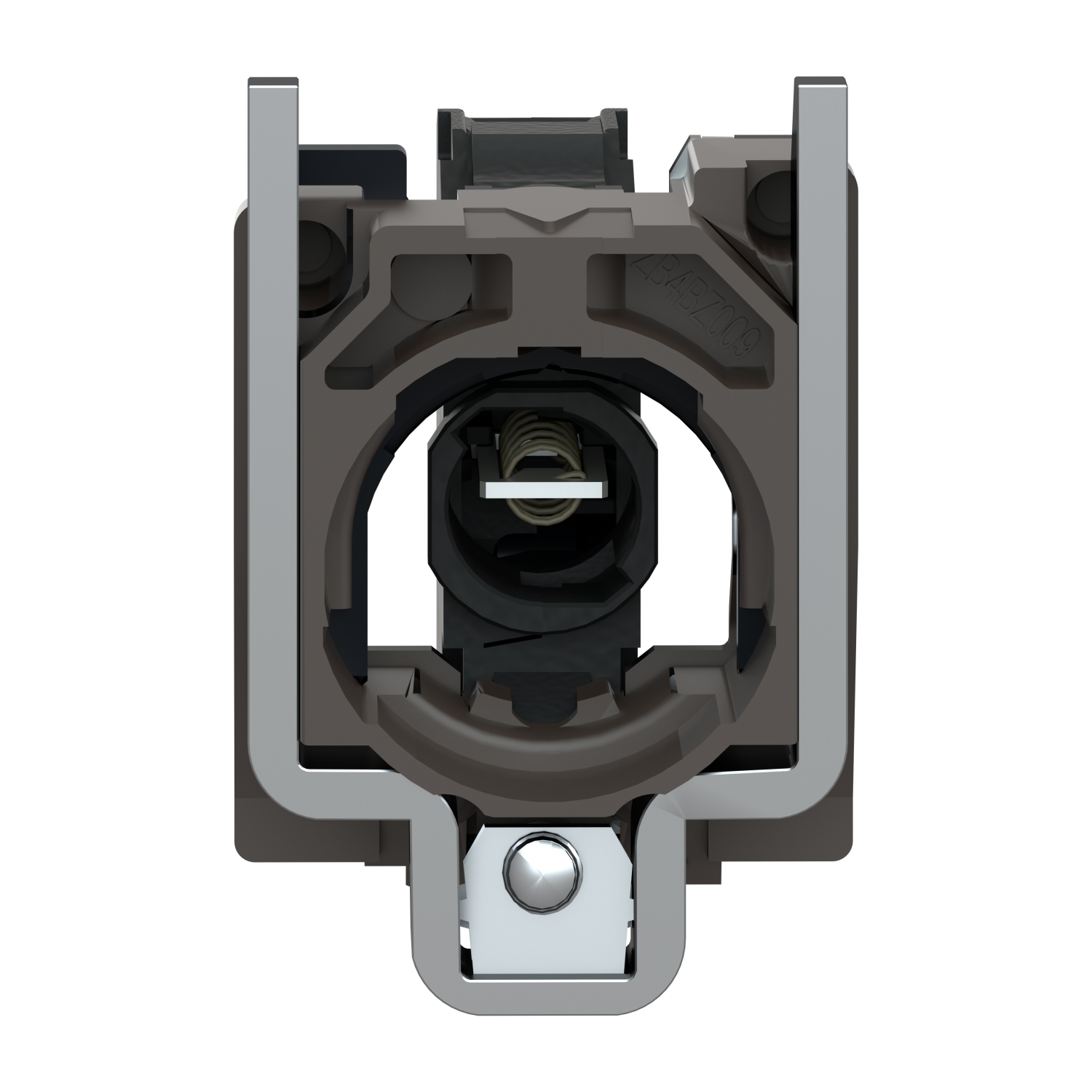

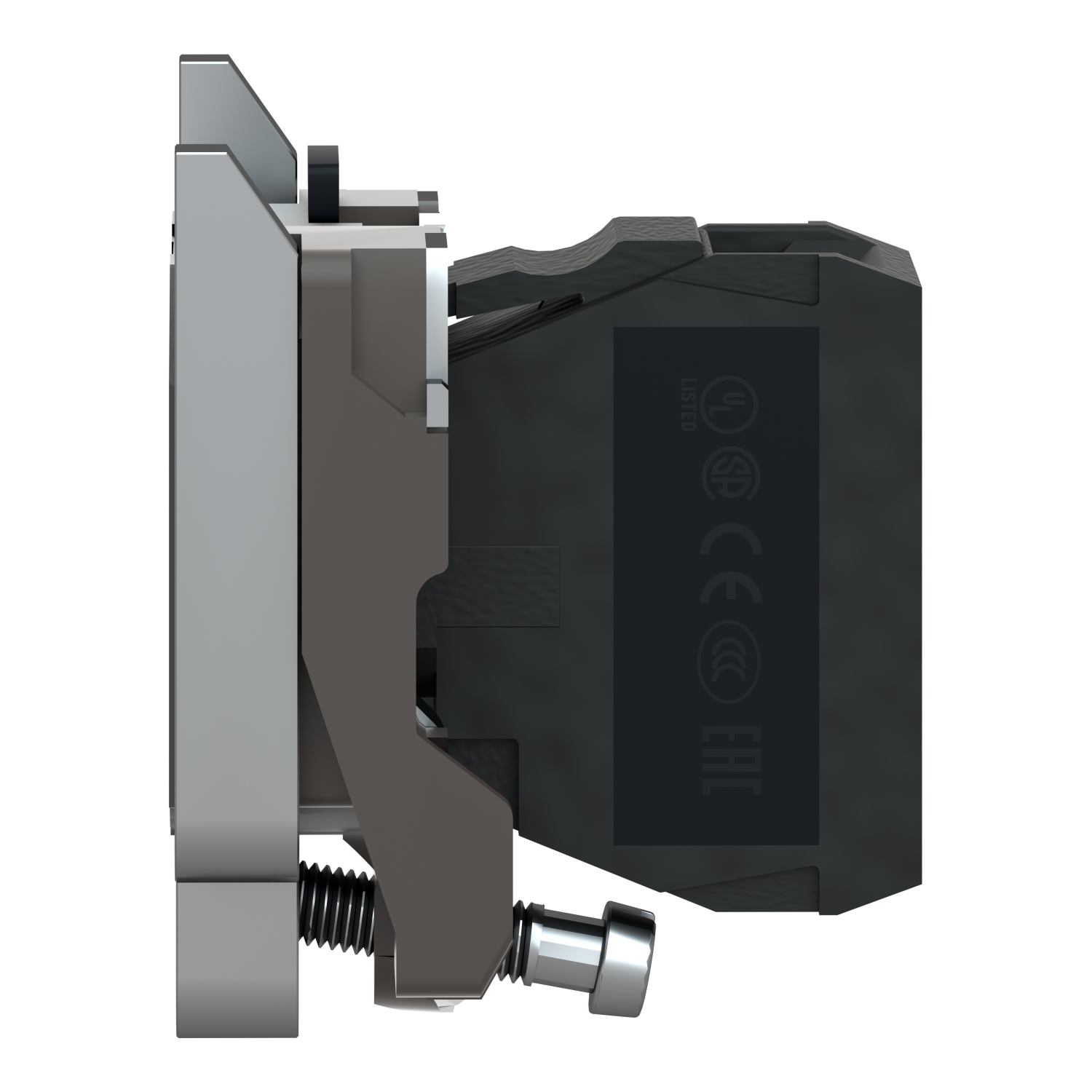

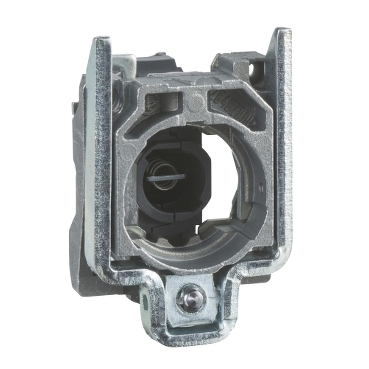

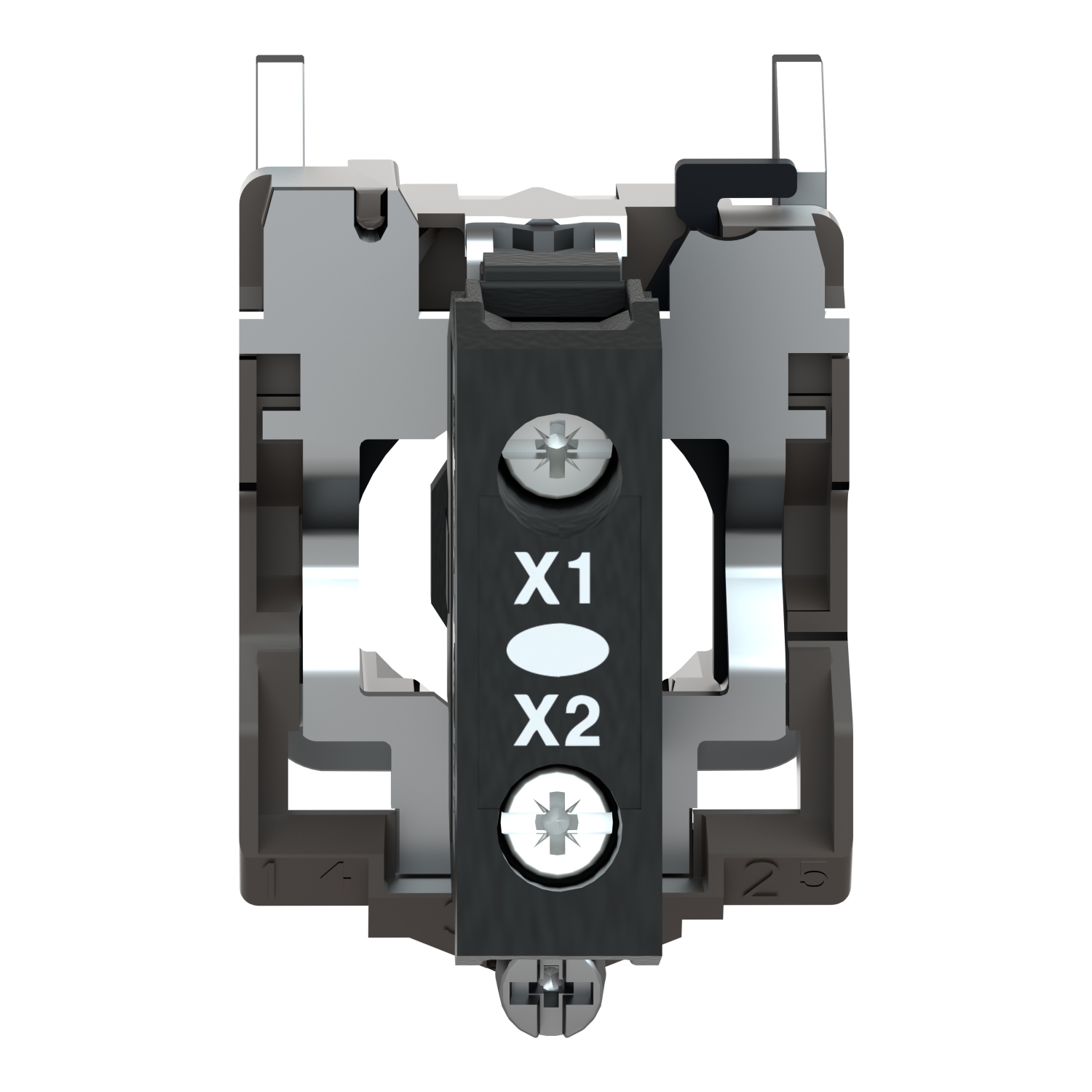

Bloc de Lumini cu Inel pentru Corp/de Fixare pentru bec Ba9S 250V
Documente
Specificatii
| Model/type | |
| With light source | No |
| Lamp holder | BA9s |
| Lamp type | Incandescent lamp |
| With integrated diode | No |
| Mounting/installation | |
| Type of fastening | Front fastening |
| Connection | |
| Connection type auxiliary circuit | Screw connection |
| Electrical | |
| With integrated voltage decreasing resistor | No |
| Rated voltage Ue at AC 50 Hz | 250 V |
| Rated voltage Ue at DC | - |
| Voltage type for actuating | AC |
| Rated voltage Ue at AC 60 Hz | 250 V |
| Options | |
| Transformer integrated | No |
| Colour | |
| Colour light source | - |
| Package 1 | |
| volume | 102,816 cm3 |
| weight | 50,9 g |
| length | 5,4 cm |
| width | 3,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110889628 |
| Package 2 | |
| volume | 405,45 cm3 |
| weight | 258 g |
| length | 26,5 cm |
| width | 3,4 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 53389110889623 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 15,942 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 300 |
| qmin | 300 |
| um | CT |
| gtin | 43389110889626 |
| Package 4 | |
| weight | 138,044 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 2400 |
| qmin | 2400 |
| um | PF |
