Descriere

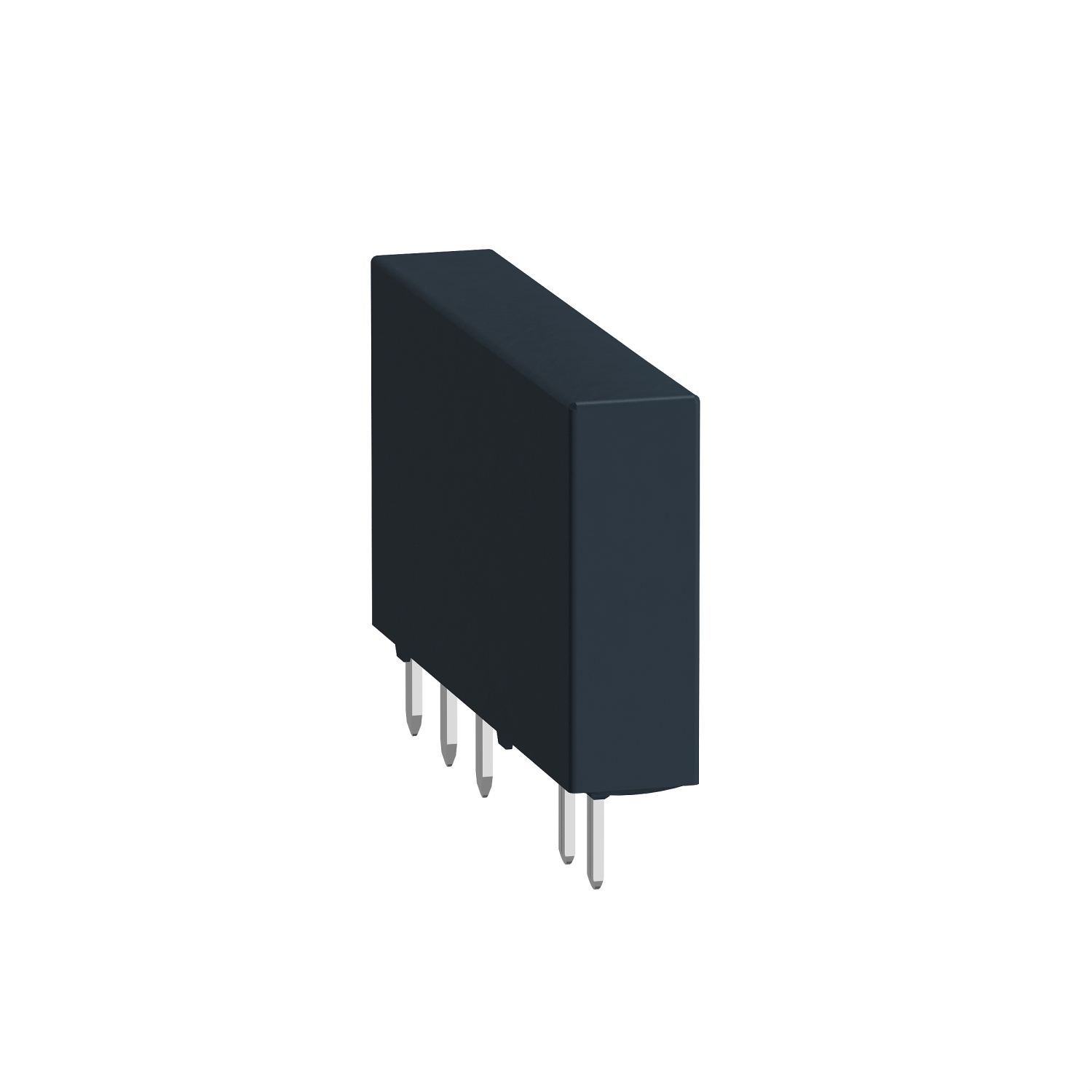

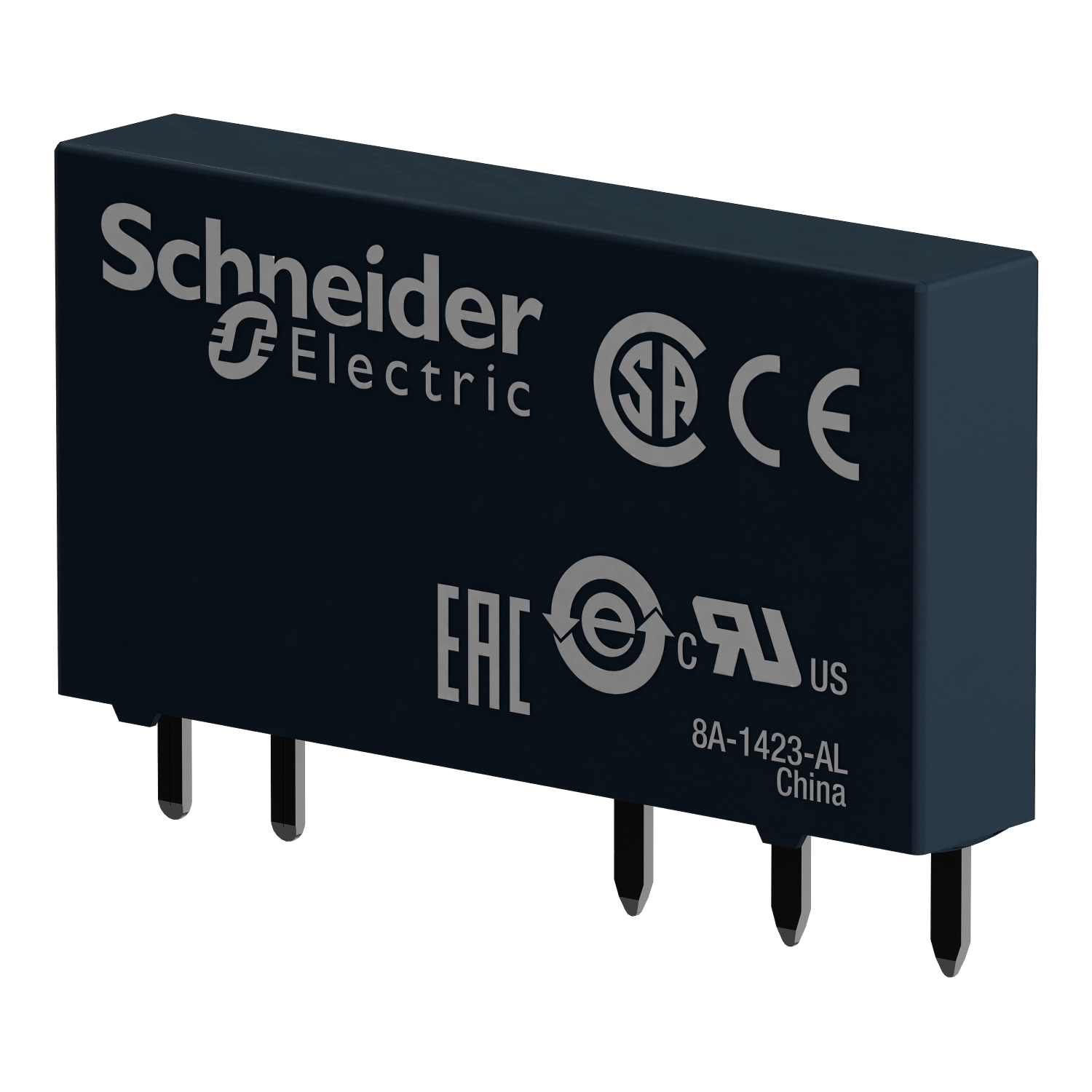

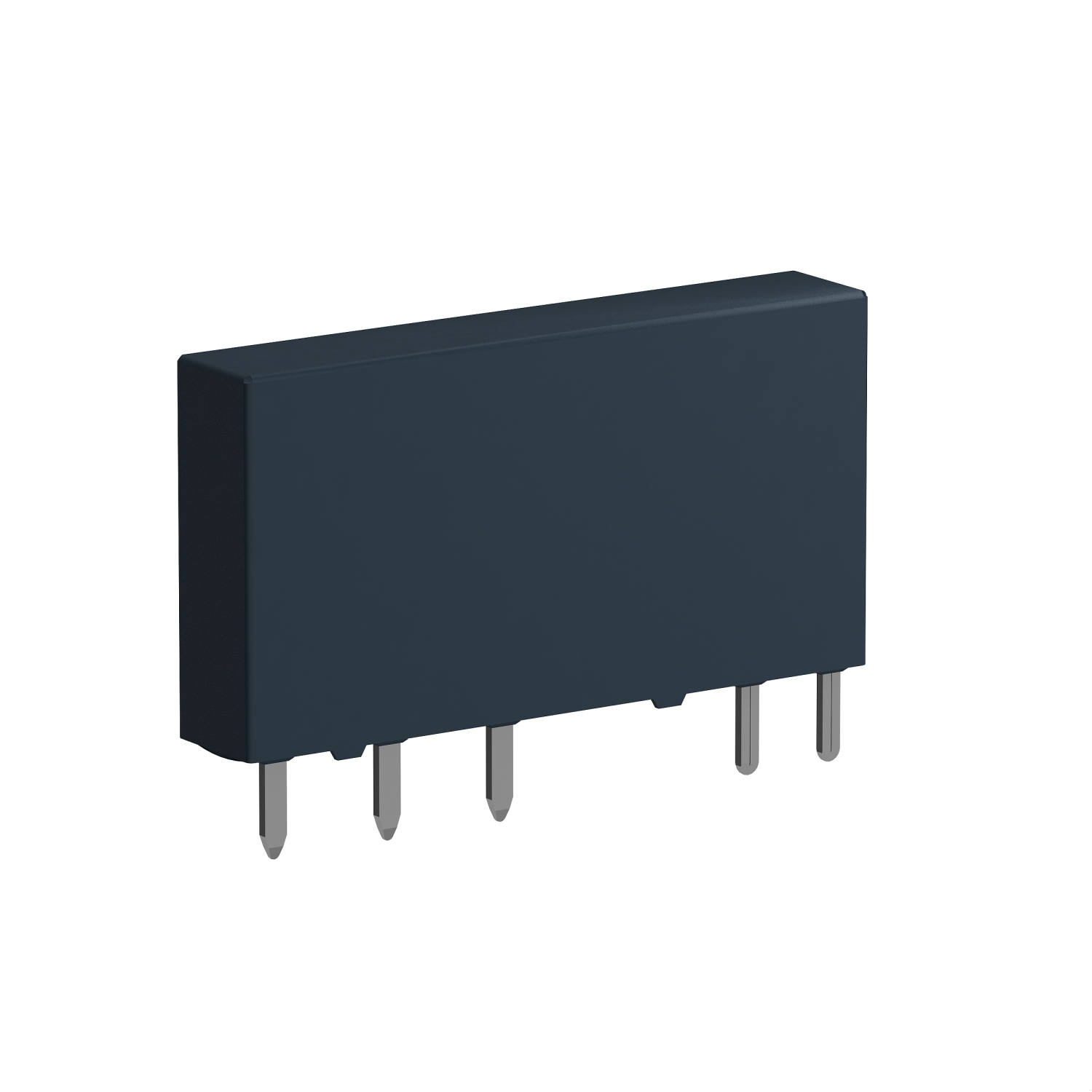

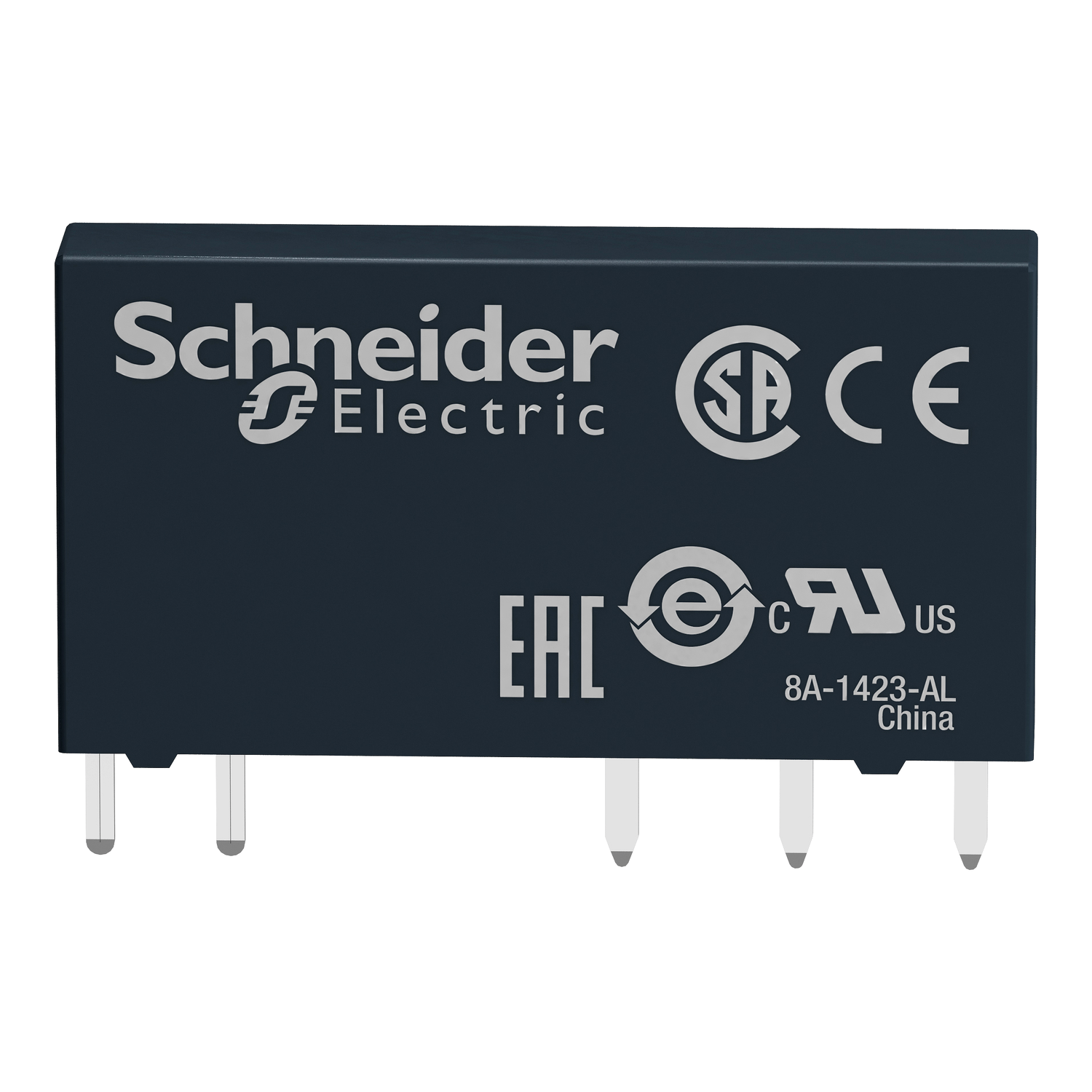

Releu Interfata Miniatura, Zelio Rsl, 1 I/D Standard, 60 V C.C., 6 A
Documente
Specificatii
| Measurements | |
| Width | 5 mm |
| Depth | 18.5 mm |
| Height | 28 mm |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Nominal current | 6 A |
| Rated control supply voltage DC | 60 V |
| Voltage type for actuating | DC |
| Connection | |
| Type of electric connection | Flat plug-in connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Other | |
| Drive, switching attitude | Mono stable |
| Drive, polarization | Polarity free |
| Model/type | |
| With forced-guided contacts | Yes |
| With LED indication | No |
| Type of switch contact | Single contact |
| With detachable clamps | Yes |
| Mounting/installation | |
| Complete with socket | No |
| Material | |
| Material of contact surface | Other |
| Material of contact insert | Other |
| Material contact | Other |
| Protection | |
| Degree of protection (IP) | IP40 |
| Package 1 | |
| volume | 2,1 cm3 |
| weight | 5 g |
| length | 2,8 cm |
| width | 1,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480078019 |
| Package 2 | |
| volume | 51,24 cm3 |
| weight | 69 g |
| length | 30,5 cm |
| width | 2,4 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480078016 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 3,835 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 500 |
| qmin | 500 |
| um | CT |
| gtin | 43606480078017 |
