Descriere

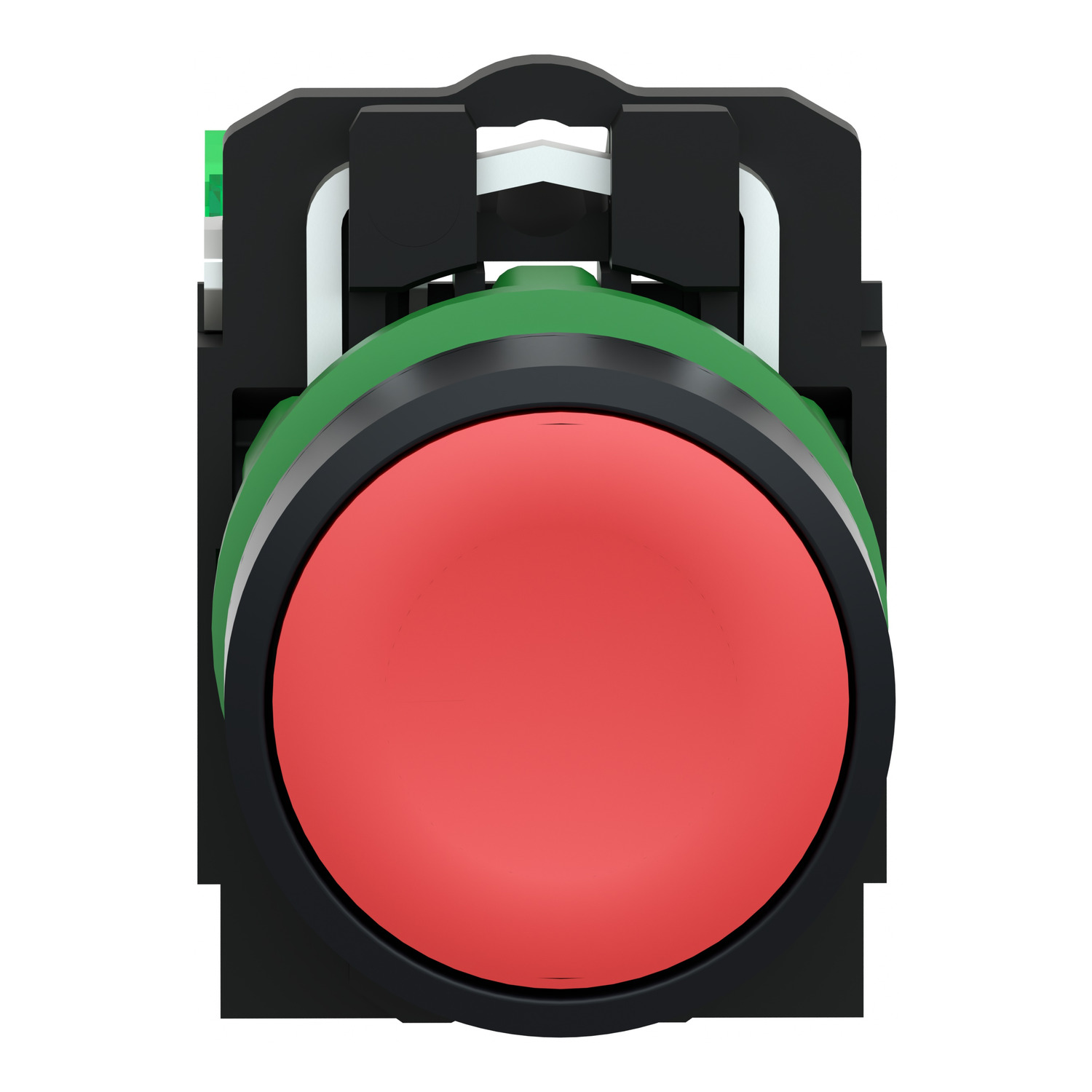

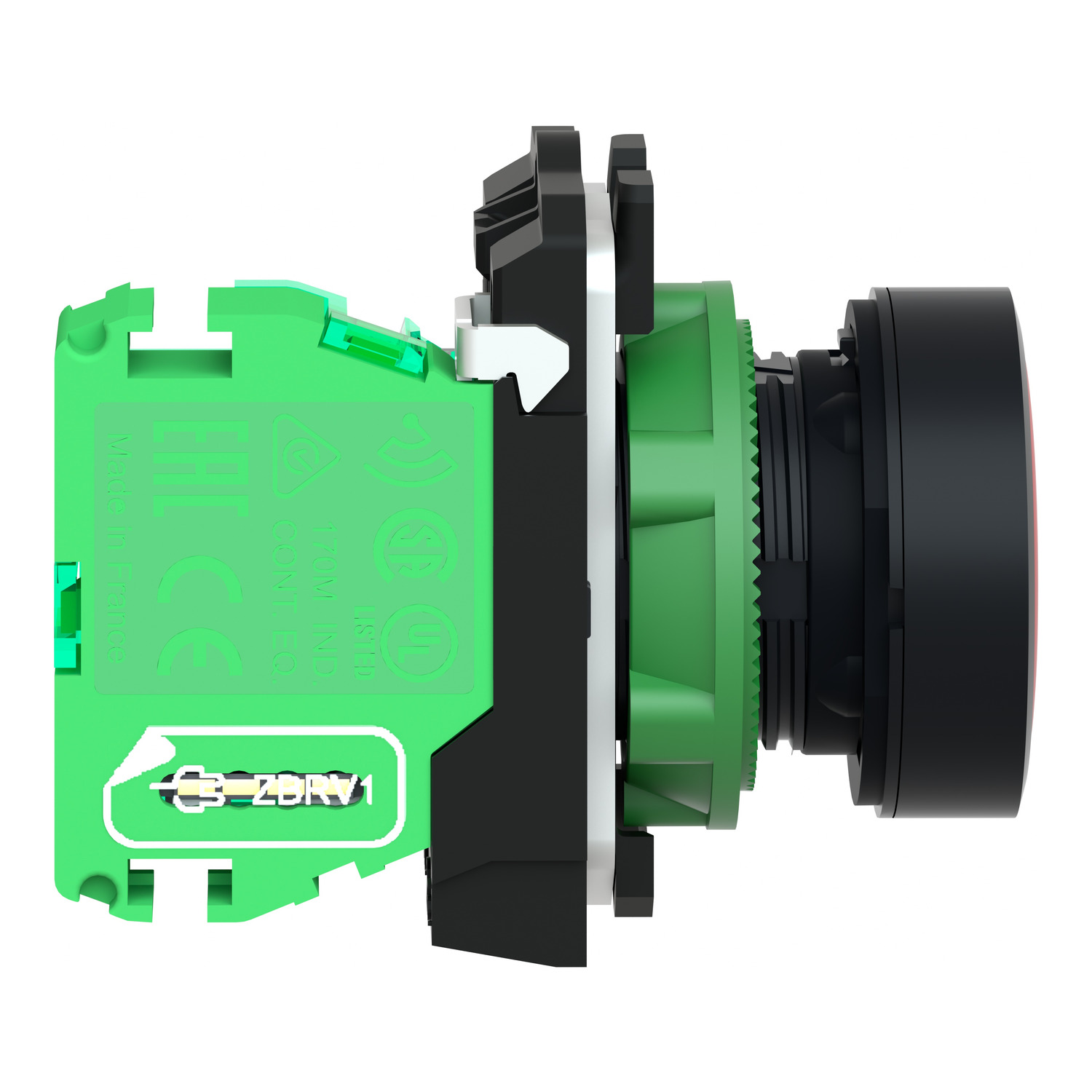

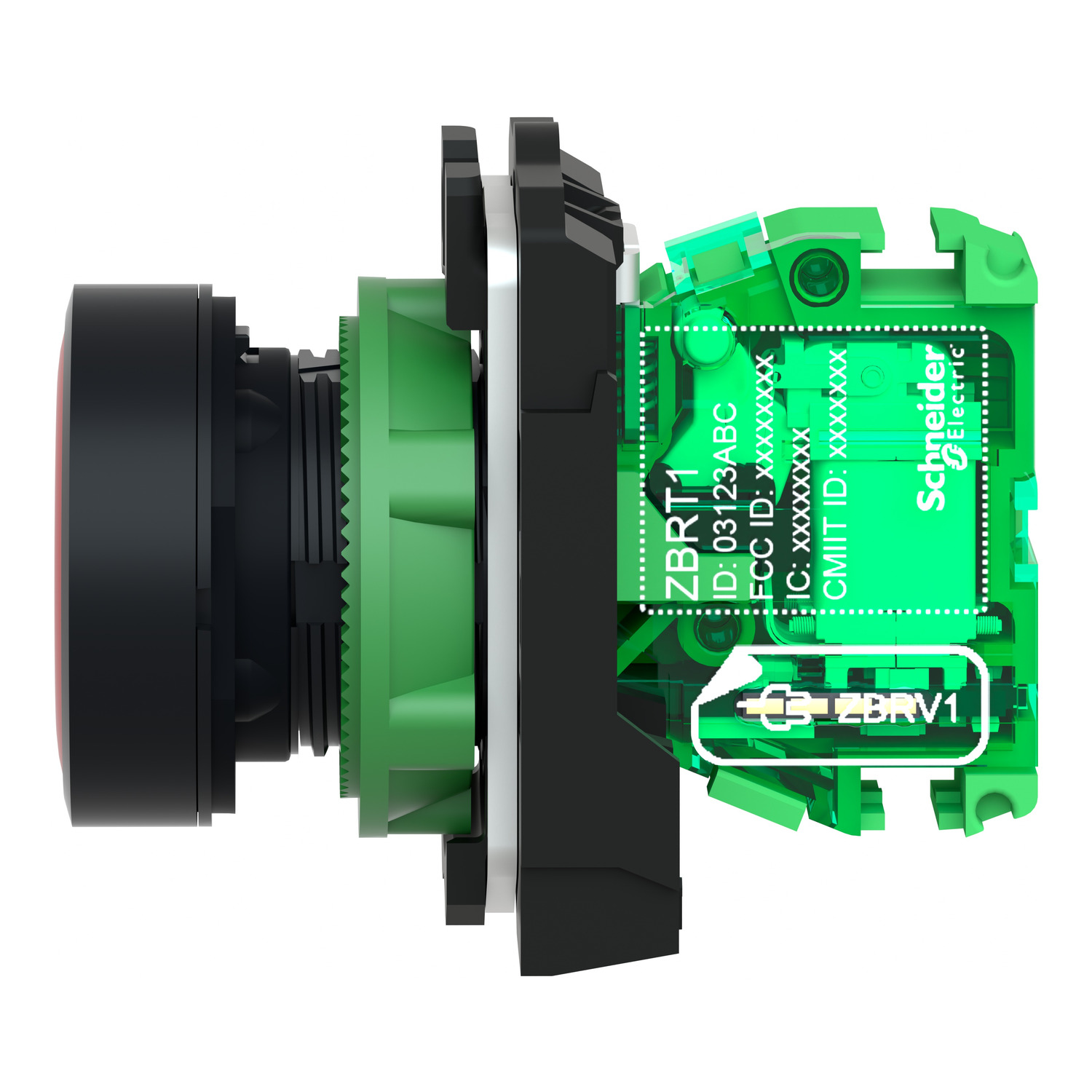

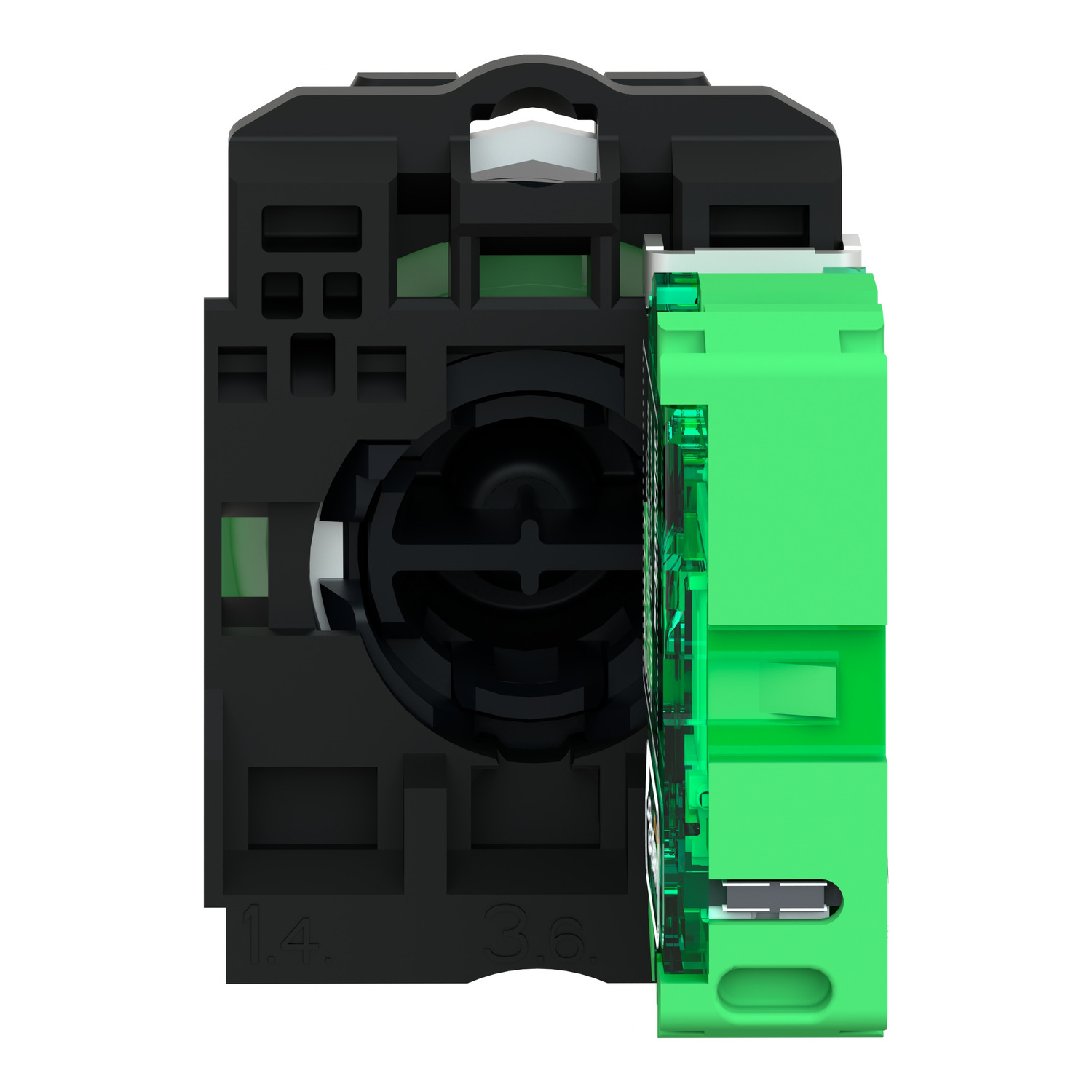

Emitator Xb5, Ø22 Mm, Cap Plastic, Rosu Cap
Documente
Specificatii
| Options | |
| Spring-return | Yes |
| Switching function latching | No |
| Colour | |
| Colour front ring | Grey |
| Colour button | Red |
| Connection | |
| Type of electric connection | Other |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Material | |
| Material front ring | Plastic |
| Measurements | |
| Hole diameter | 22.5 mm |
| Width opening | - |
| Height opening | - |
| Electrical | |
| Supply voltage lamp | - |
| Model/type | |
| Type of button | Flat |
| Construction type lens | Round |
| With front ring | Yes |
| Number of command positions | 1 |
| Application | |
| Suitable for lighting | No |
| Protection | |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | - |
| Package 1 | |
| volume | 156,774 cm3 |
| weight | 38 g |
| length | 8,7 cm |
| width | 5,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480334610 |
| Package 2 | |
| volume | 9000 cm3 |
| weight | 1,151 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 25 |
| qmin | 25 |
| um | CT |
| gtin | 13606480334617 |
Accesorii
