Descriere

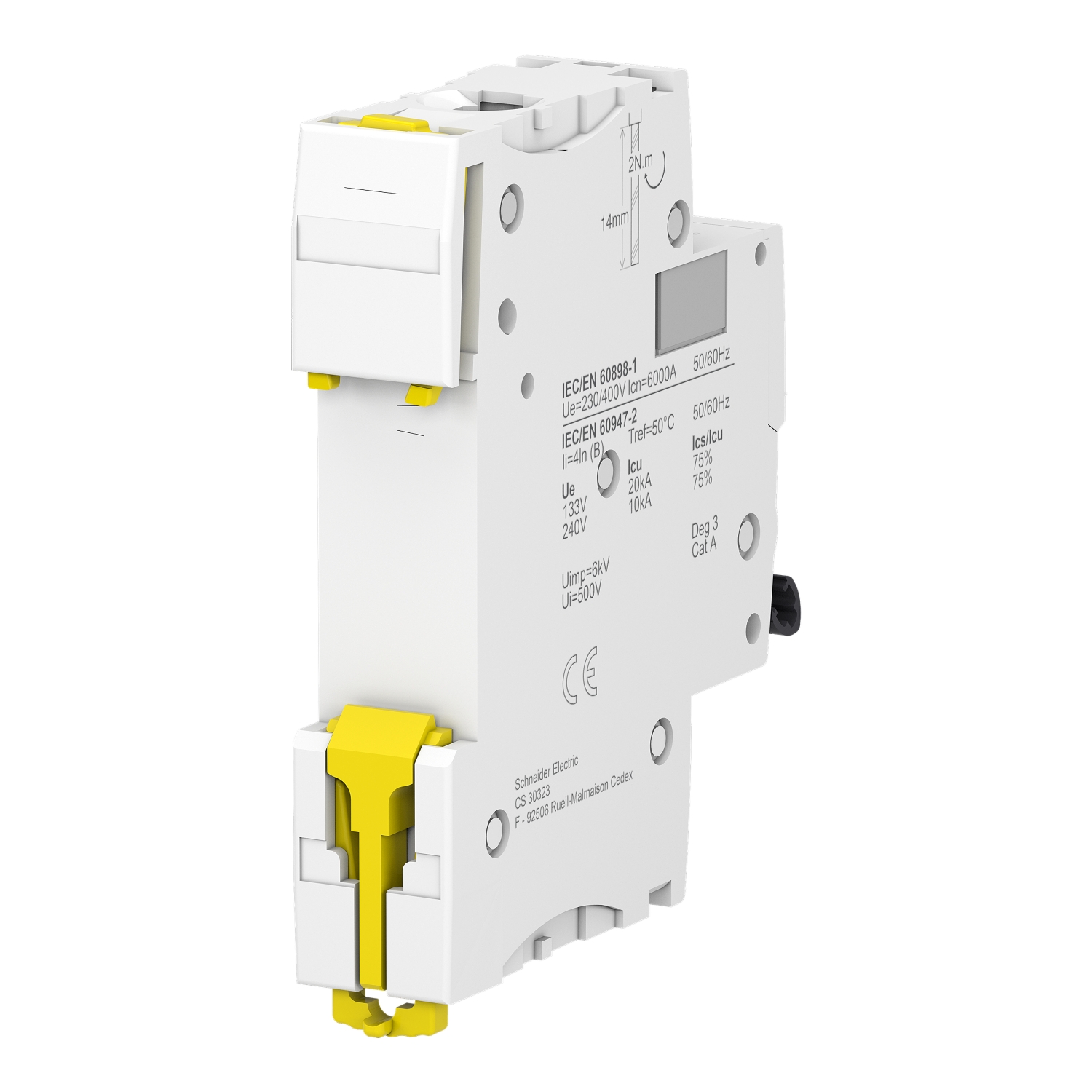

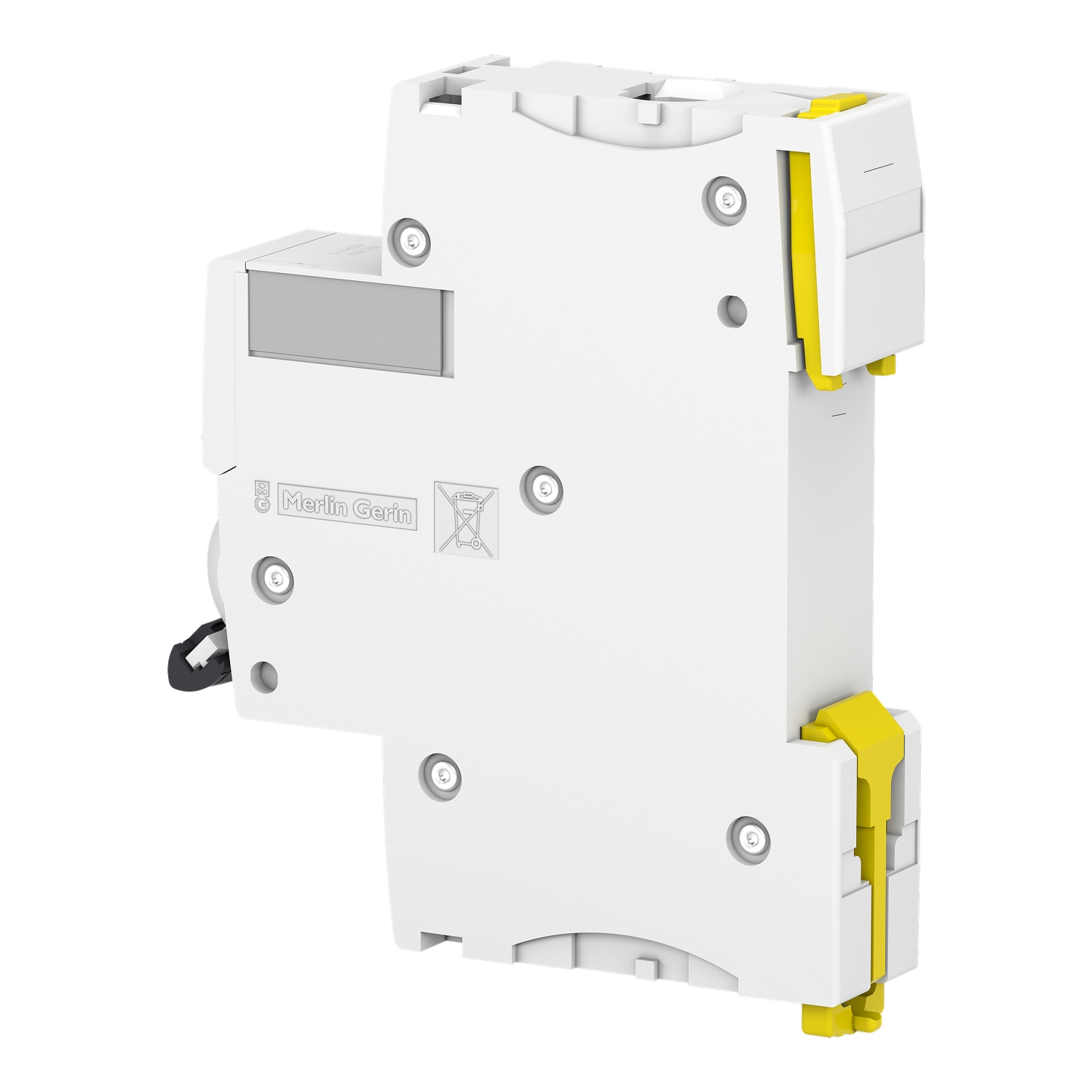

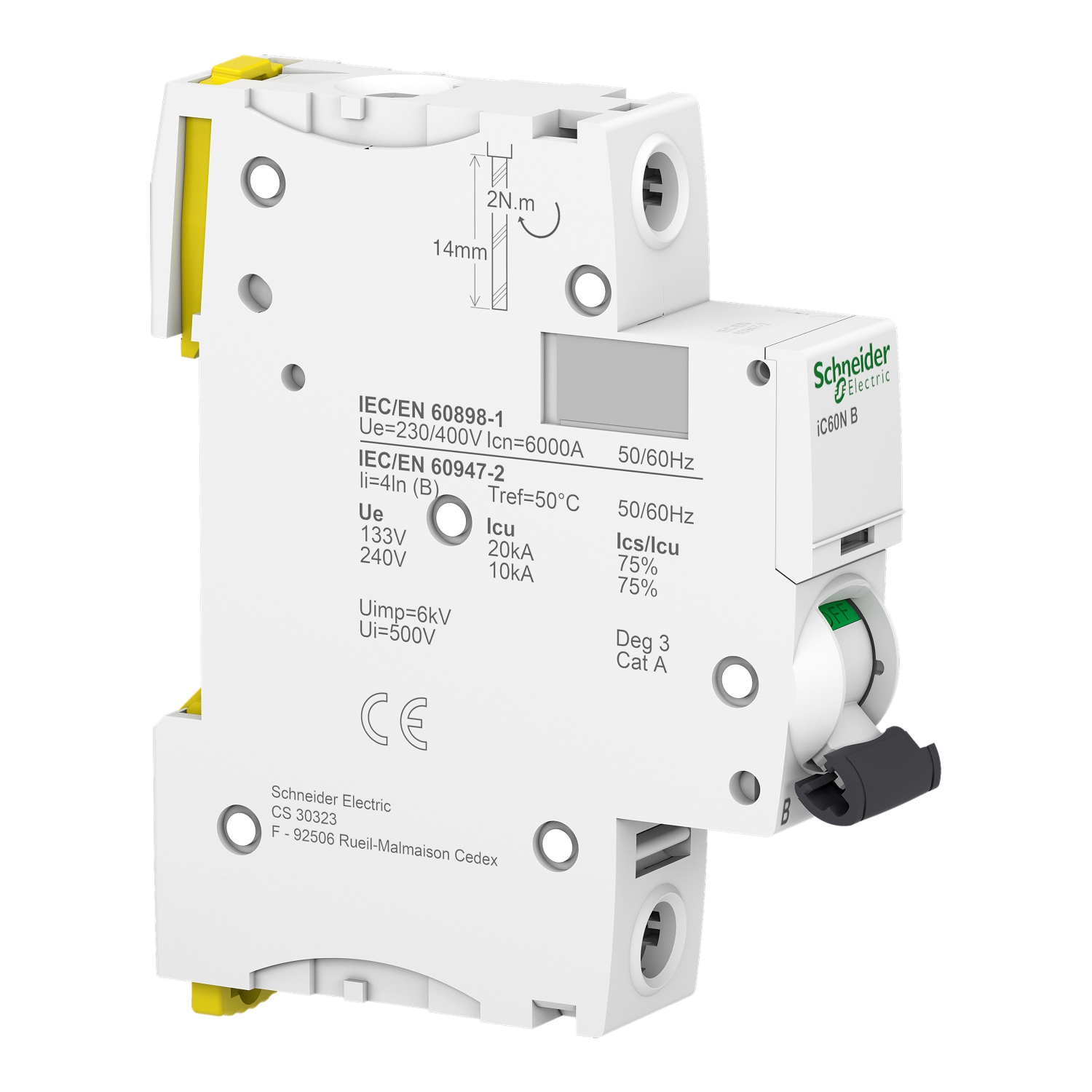

Acti9 Ic60N, Intreruptor Automat Miniatura, 1P, 6A, curba B
Documente
Specificatii
| Measurements | |
| Built-in depth | 44.5 mm |
| Width in number of modular spacings | 1 |
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 3 |
| Model/type | |
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Electrical | |
| Rated insulation voltage Ui | 500 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | - |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 10 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated current | 6 A |
| Rated voltage | 230 V |
| Release characteristic | B |
| Voltage type | AC/DC |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | - |
| Overvoltage category | 4 |
| Current limiting class | 3 |
| Options | |
| Additional equipment possible | Yes |
| Concurrently switching neutral conductor | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Mounting/installation | |
| Flush-mounted installation | No |
| Connection | |
| Connectable conductor cross section solid-core | 1 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Operating conditions | |
| Ambient temperature during operating | -35 °C |
| Package 1 | |
| volume | 114,172 cm3 |
| weight | 108 g |
| length | 9,2 cm |
| width | 7,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480079009 |
| Package 2 | |
| volume | 1836,8 cm3 |
| weight | 1,36 kg |
| length | 22,4 cm |
| width | 10 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606480079006 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 15,436 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 132 |
| qmin | 132 |
| um | CT |
| gtin | 43606480079007 |
