Descriere

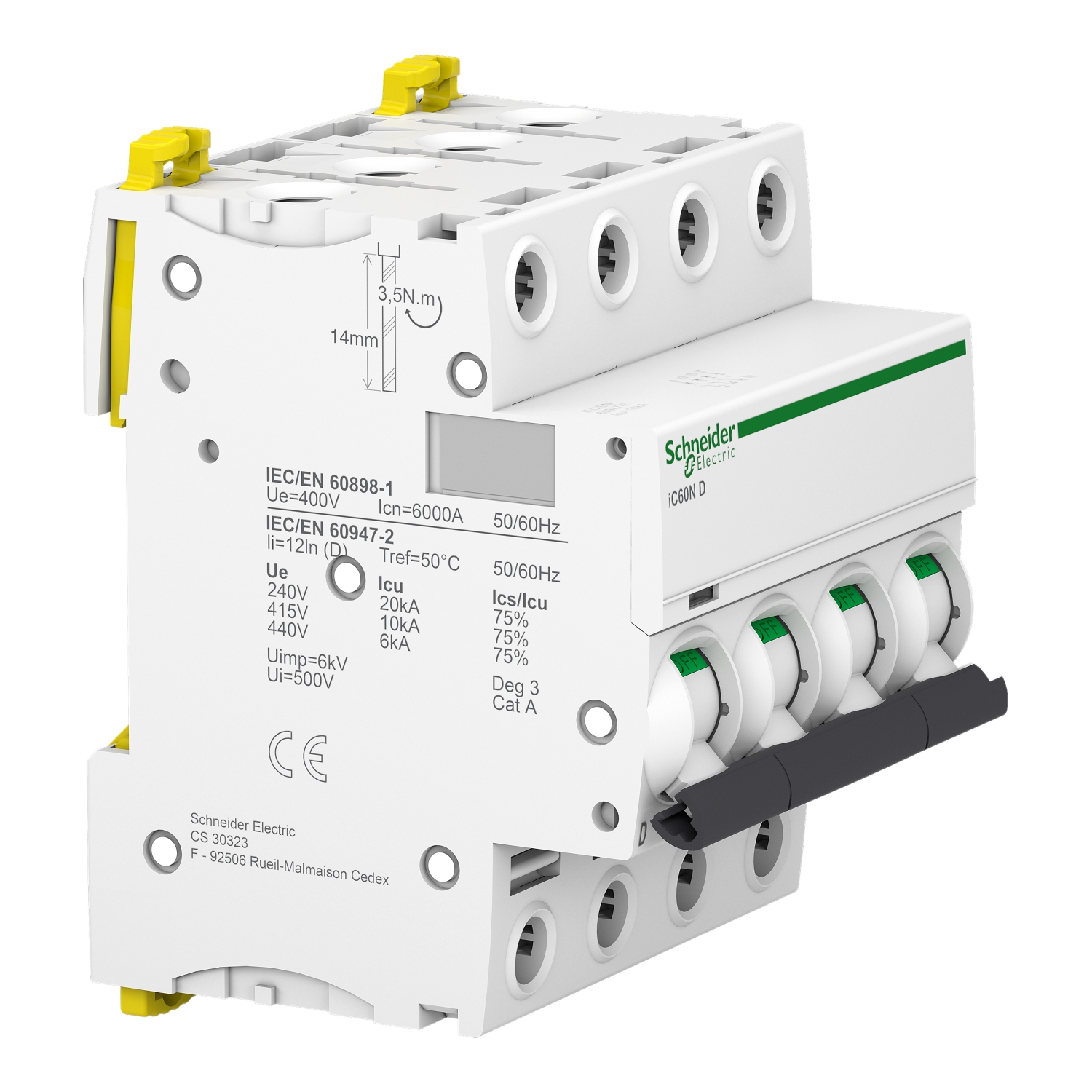

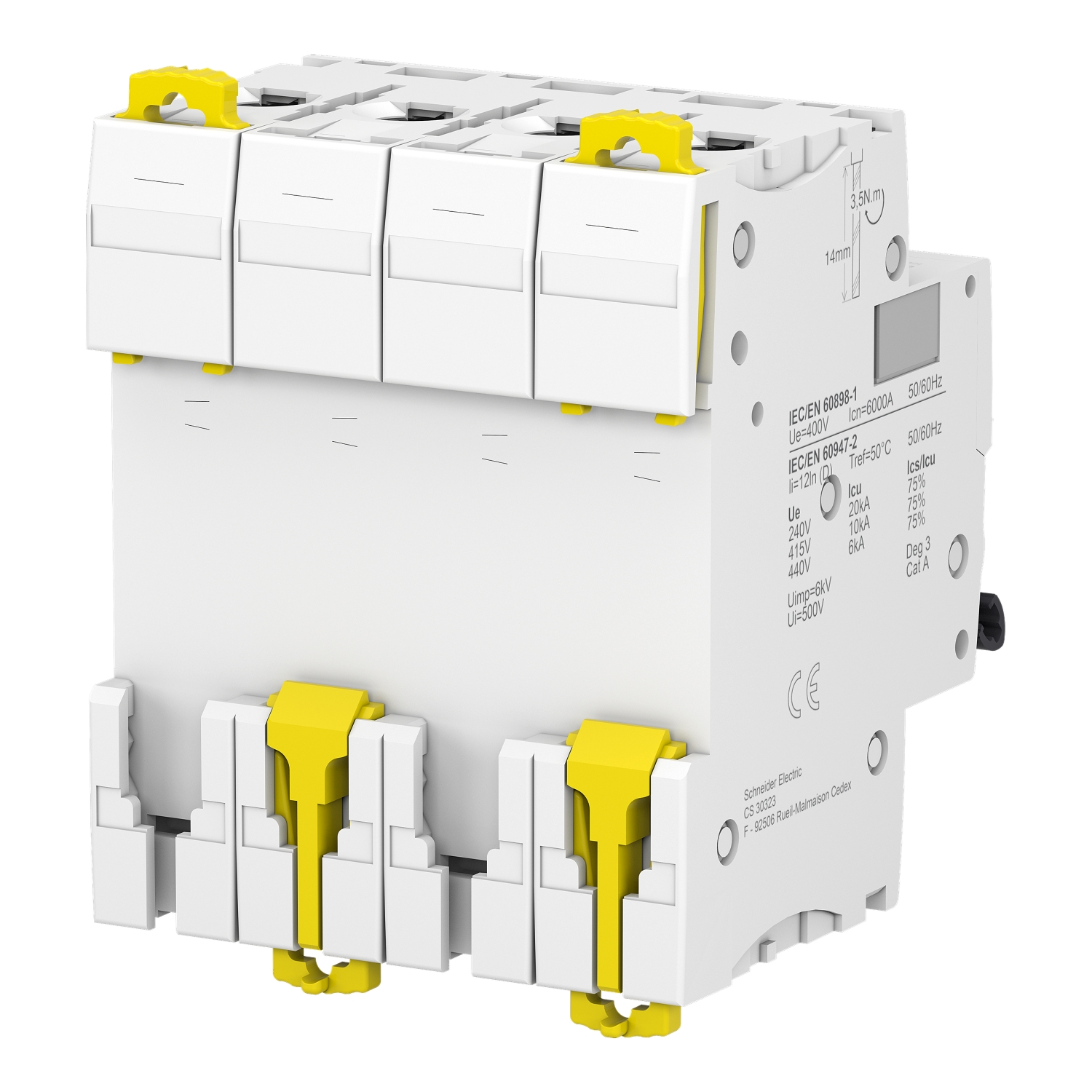

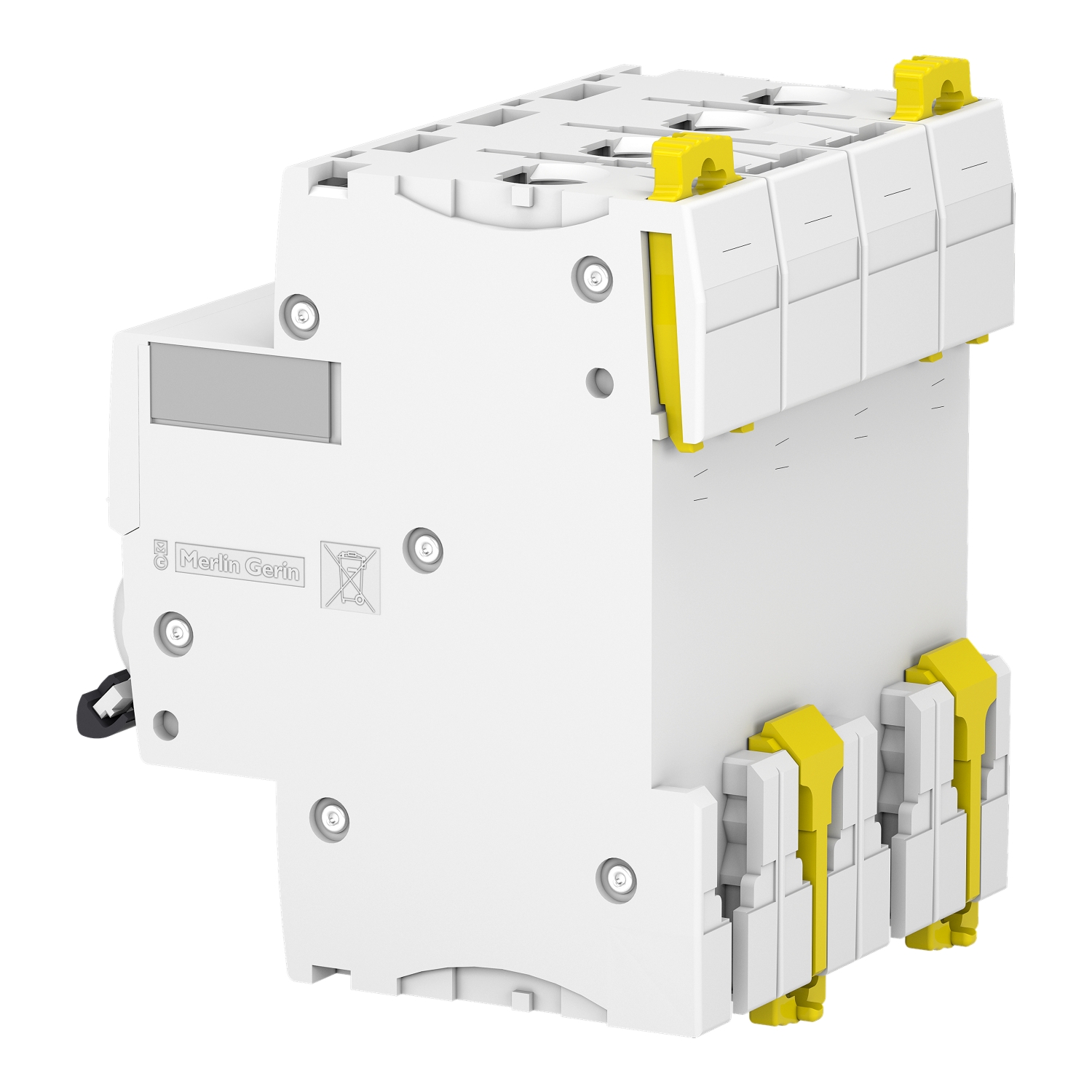

Acti9 Ic60N, Intreruptor Automat Miniatura, 4P, 40A, curba D
Documente
Specificatii
| Measurements | |
| Built-in depth | 44.5 mm |
| Width in number of modular spacings | 4 |
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 3 |
| Electrical | |
| Rated insulation voltage Ui | 500 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 20 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated current | 40 A |
| Rated voltage | 400 V |
| Release characteristic | D |
| Voltage type | AC/DC |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 10 kA |
| Overvoltage category | 4 |
| Current limiting class | 3 |
| Model/type | |
| Number of poles (total) | 4 |
| Number of protected poles | 4 |
| Options | |
| Additional equipment possible | Yes |
| Concurrently switching neutral conductor | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Mounting/installation | |
| Flush-mounted installation | No |
| Connection | |
| Connectable conductor cross section solid-core | 1 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Operating conditions | |
| Ambient temperature during operating | -35 °C |
| Package 1 | |
| volume | 513 cm3 |
| weight | 489 g |
| length | 9,5 cm |
| width | 7,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480081224 |
| Package 2 | |
| volume | 1764 cm3 |
| weight | 1,527 kg |
| length | 22,5 cm |
| width | 9,8 cm |
| qmax | 3 |
| qmin | 3 |
| um | BX |
| gtin | 13606480081221 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 17,612 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 33 |
| qmin | 33 |
| um | CT |
| gtin | 43606480081222 |
Accesorii
Acti9 A9A, Contact auxiliar, iOF, 1 C/O, 100mA-6A, 24+D6351:D6365-415V C.A., 24-130V C.C.
Cod: A9A26904
Schneider Electric
Acti9 A9A, Contact auxiliar, iSD, 1 C/O, 100mA-6A, 24-415V C.A., 24-130V C.C., conexiune pe jos
Cod: A9A26907
Schneider Electric
Acti9 A9A, Contact auxiliar low level, iOF, 1 C/O, 2mA-100mA, 24-250V C.A., 24-220V C.C.
Cod: A9A26914
Schneider Electric
Acti9 A9A, Contact auxiliar, iOF+iOF/iSD, 2 C/O, 100mA-6A, 24-415V C.A., 24-130V C.C.
Cod: A9A26909
Schneider Electric
Acti9 A9A, Contact auxiliar low level, iSD, 1 C/O, 2mA-100mA, 24-250V C.A., 24-220V C.C.
Cod: A9A26917
Schneider Electric
Acti9 A9A, Contact auxiliar low level, iOF+iOF/iSD, 2 C/O, 2mA-100mA, 24-250V C.A., 24-220V C.C.
Cod: A9A26919
Schneider Electric
