Descriere

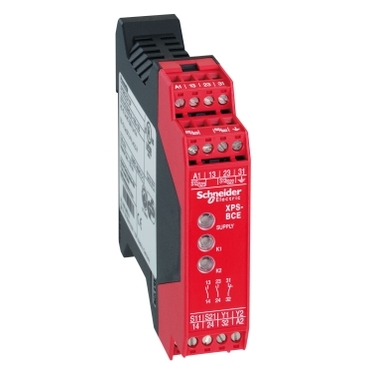

Module Xpsbce - Control Cu Doua Maini - 24 V Ac/Dc
Documente
Specificatii
| Connection | |
| Number of outputs, safety related, delayed, with contact | 0 |
| Type of electric connection | Screw connection |
| Number of outputs, safety related, undelayed, semiconductors | 0 |
| Number of outputs, safety related, undelayed, with contact | 2 |
| Number of outputs, signalling function, delayed, with contact | 0 |
| Number of outputs, safety related, delayed, semiconductors | 0 |
| Number of outputs, signalling function, undelayed, with contact | 1 |
| Number of outputs, signalling function, undelayed, semiconductors | 0 |
| Number of outputs, signalling function, delayed, semiconductors | 0 |
| Model/type | |
| With feedback circuit | Yes |
| Type of switch function of the inputs | Change-over contact |
| Type class for safety demands according to EN 574 | Type III C |
| With start input | Yes |
| With detachable clamps | No |
| Approval/certification | |
| With approval according to UL | Yes |
| SIL according to IEC 61508 | 3 |
| With approval for BG BIA | Yes |
| Performance | |
| Performance level according to EN ISO 13849-1 | Level e |
| Electrical | |
| Voltage type for actuating | AC/DC |
| Rated control supply voltage AC 50 Hz | 24 V |
| Rated control supply voltage AC 60 Hz | 24 V |
| Rated control supply voltage DC | 24 V |
| Measurements | |
| Height | 78 mm |
| Width | 45 mm |
| Depth | 120 mm |
| Mounting/installation | |
| Suitable for rail mounting | Yes |
| Application | |
| Suitable for safety functions | Yes |
| Package 1 | |
| volume | 552 cm3 |
| weight | 254 g |
| length | 12 cm |
| width | 11,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119043014 |
