Descriere

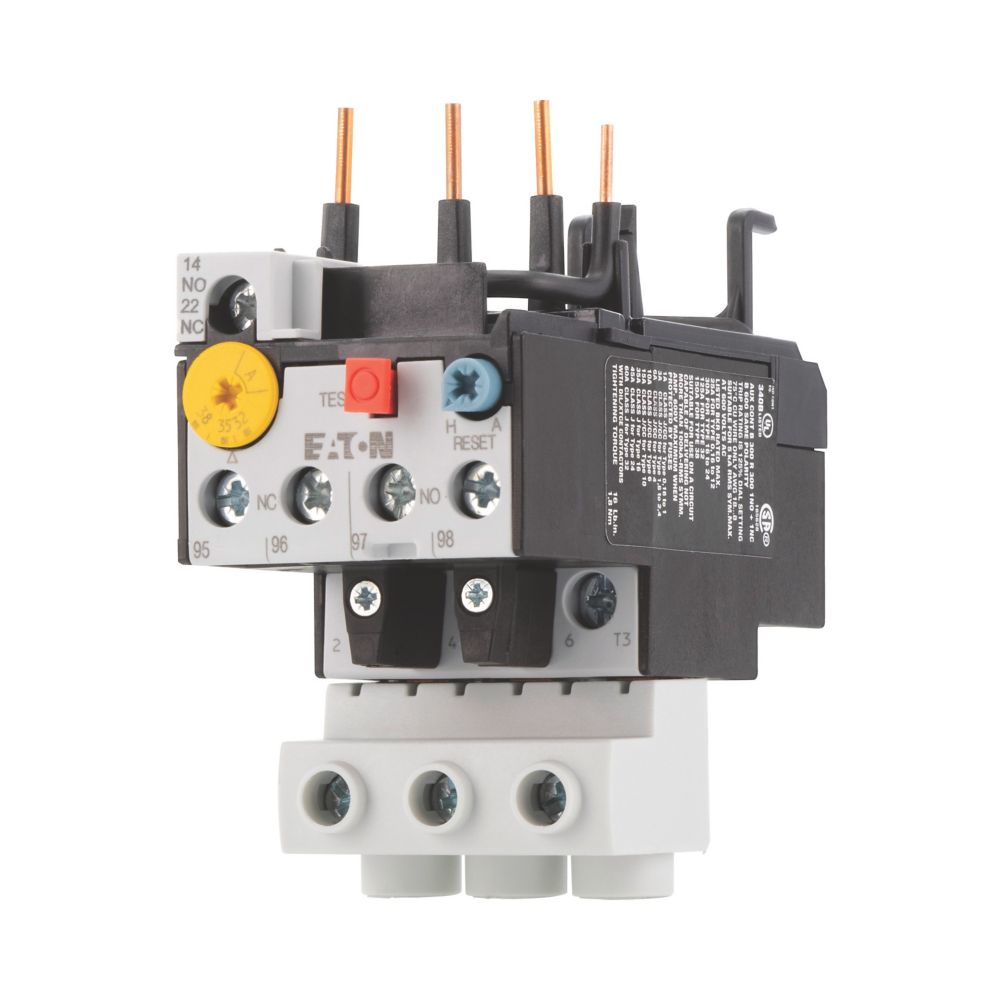

Overload relay, Product range: Overload relay ZB up to 150 A, Accessories: Overload relays, Frame size: ZB32, Phase-failure sensitivity: IEC/EN 60947, VDE 0660 Part 102, Description: Test/off button, Reset pushbutton manual/auto, Trip-free release, Mounting type: Direct mounting, Auxiliary contacts N/O = Normally open: 1 N/O, Auxiliary contacts N/C = Normally closed: 1 N/C, For use with: DILM17, DILM25, DILM32, DILM38, DILMF8, DILMF11, DILMF14, DILMF17, DILMF25, DILMF32, DIULM17, DIULM25, DIULM32, SDAINLM30, SDAINLM45, SDAINLM55, Standards: IEC/EN 60947, VDE 0660, UL, CSA, Degree of Protection: IP20
Specificatii
| Electrical | |
| Adjustable current range | 32 |
| Max. rated operation voltage Ue | 690 |
| Mounting/installation | |
| Mounting method | Direct attachment |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as change-over contact | 0 |
| Other | |
| Release class | CLASS 10 A |
| Options | |
| Reset function input | No |
| Reset function automatic | Yes |
| Reset function push-button | Yes |
| Package 1 | |
| volume | 0,00072 |
| weight | 0,215 |
| length | 0,12 |
| width | 0,1 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081120284 |
| Dimensions of product | |
| Volume | 0,00042336 |
| Weight | 0,192 |
| Length | 0,096 |
| Width | 0,045 |
| Depth | 0,098 |
