Descriere

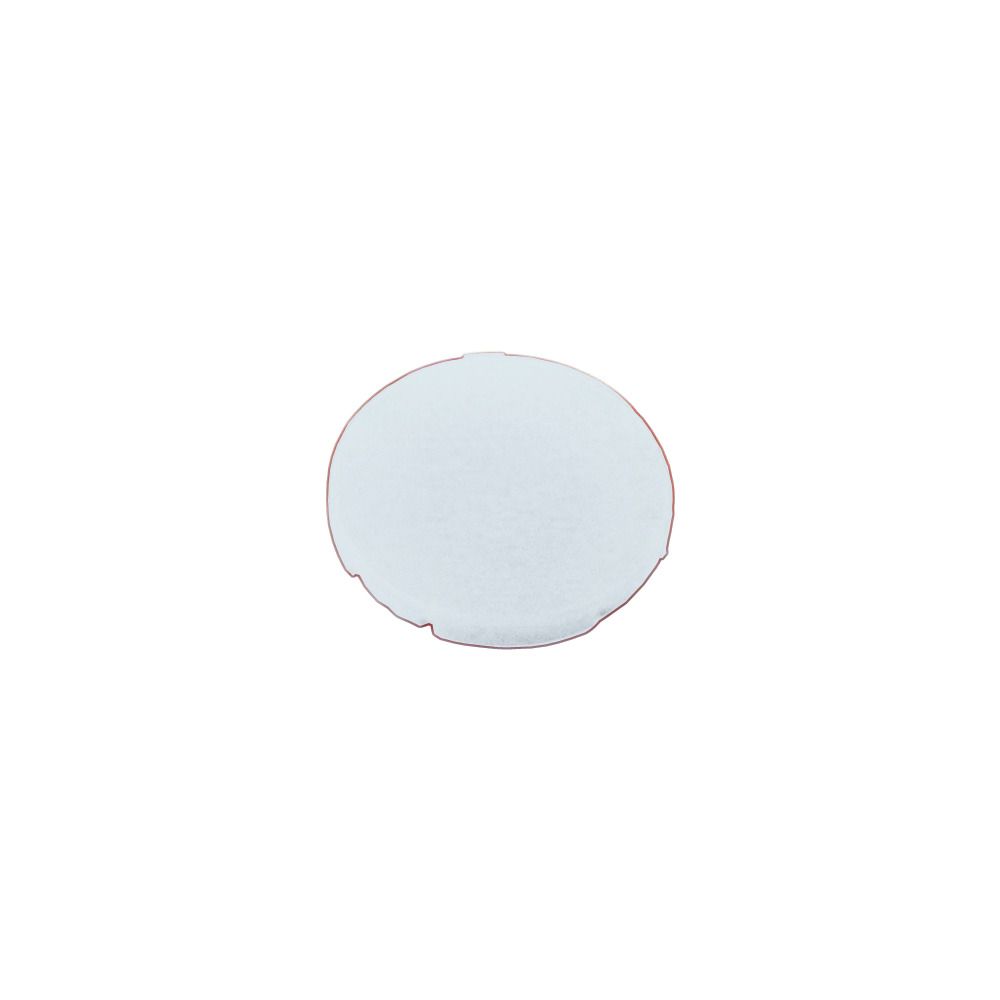

Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Name: with customized inscription using the Label Editor → Data sheet, additional product information (links), Selection to: Blank, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no
Specificatii
| Model/type | |
| Shape | Round |
| Construction type | Flat |
| Imprint | Other |
| Colour | |
| Colour | Other |
| Other | |
| Literal imprint | None |
| Language of the imprint | Other |
| Imprint ISO symbols | None |
| Options | |
| Engravable | No |
| Measurements | |
| Programme diameter | 22 |
| Width | 24 |
| Height | 3 |
| Outer diameter | 22.5 |
| Application | |
| Suitable for push button | Yes |
| Suitable for illuminated push buttons | No |
| Suitable for indicator light | No |
| Suitable for mushroom head push button | No |
| Suitable for signalling lamp | No |
| Suitable for selector switch | No |
| Package 1 | |
| volume | 0,00000173 |
| weight | 0,0021 |
| length | 0,026 |
| width | 0,026 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| Package 2 | |
| volume | 0,00013027 |
| weight | 0,021 |
| length | 0,059 |
| width | 0,048 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| Dimensions of product | |
| Volume | 0,00000173 |
| Weight | 0,002 |
| Length | 0,024 |
| Width | 0,024 |
| Depth | 0,003 |
