Descriere

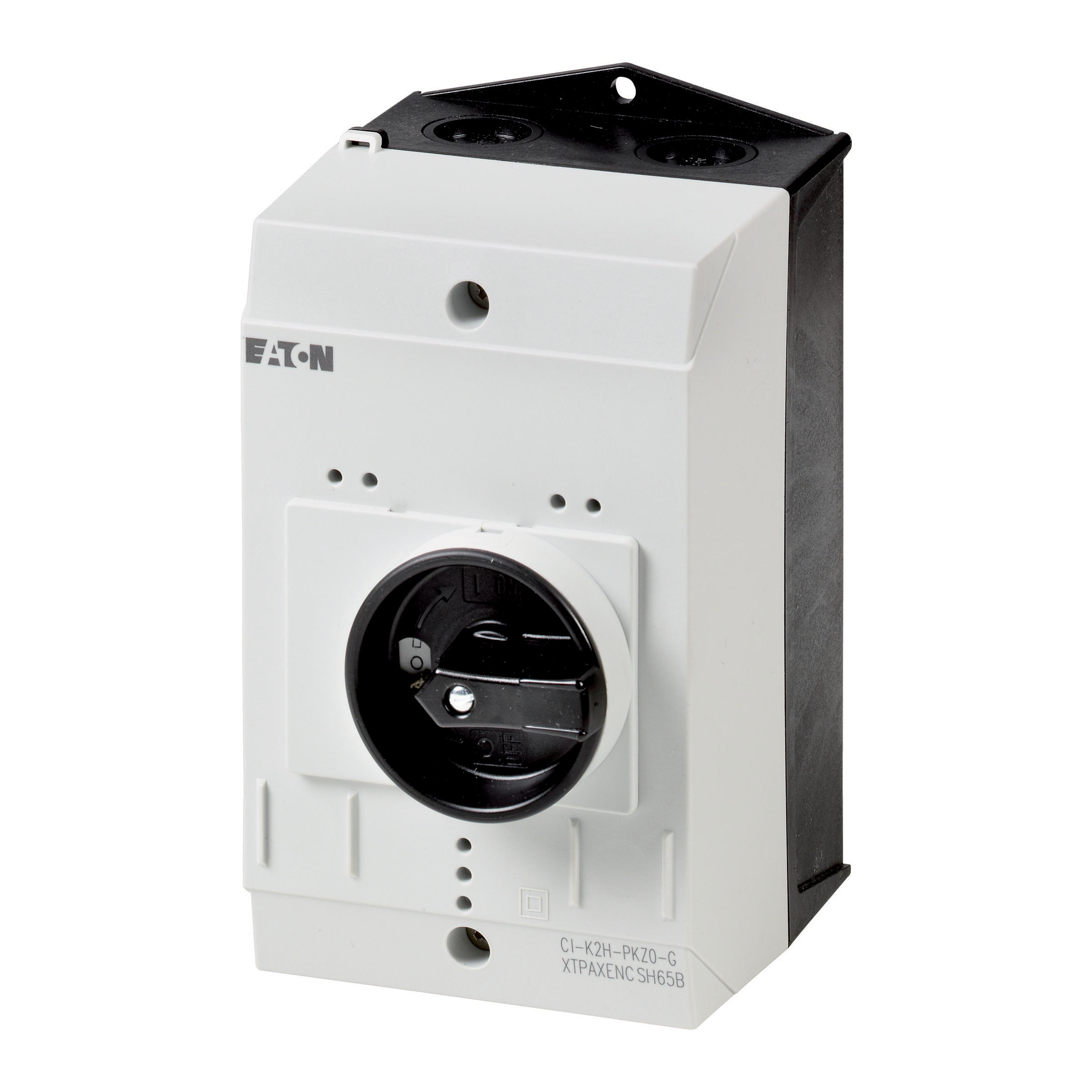

Insulated enclosure for PKZM0 + rotary handle, black/grey, degree of protection IP65, glass-fiber reinforced polycarbonate, enclosure base RAL 9005, black/operator only RAL 7035, light gray, metric cable entry knockouts top, bottom and in the back plate, hard metric cable entry knockouts, control cable entry
Specificatii
| Material | |
| Housing material | Plastic |
| Measurements | |
| Width | 100 |
| Height | 180 |
| Depth | 132 |
| Model/type | |
| With transparent cover | No |
| Model | Surface mounting |
| Application | |
| Suitable for emergency stop | No |
| Protection | |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 0,002218 |
| weight | 0,467 |
| length | 0,183 |
| width | 0,101 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082196547 |
| Dimensions of product | |
| Volume | 0,002376 |
| Weight | 0,415 |
| Length | 0,132 |
| Width | 0,1 |
| Depth | 0,18 |
