Descriere

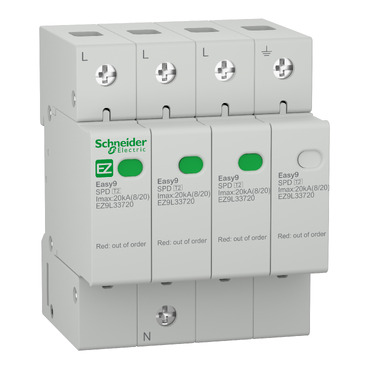

Acest produs Easy9 este un descarcator de supratensiune. Acest produs, conform curentului maxim de descarcare Imax de 20 kA, este recomandat pentru un nivel de risc mediu. Se poate asocia cu un disjunctor cu In 25 A si curba de declansare C. Tensiunea maxima de functionare continua Uc este de 275 V c.a.. Curentul de descarcare nominal In este de 10 kA. Nivelul maxim de protectie la tensiune Up este de 1,3 kV Poate fi montat pe sina DIN pentru instalare modulara. Latimea sa este de 4 module de 9 mm. In conformitate cu standardul SE EN 60529, gradul de protectie este IP40 instalat in cofret modulara. Temperatura de functionare este de la -5°C la 60°C. Temperatura de depozitare este de la -5°C la 70°C. Acest produs este in conformitate cu standardul SR EN 61643-11.
Documente
Specificatii
| Electrical | |
| Integrated short-circuit protection selective to fuse gG | - |
| Nominal discharge surge current (8/20) | 10 kA |
| Voltage protection level L-N | 1.3 kV |
| Number of conductors (without earthing) | 1 |
| Voltage protection level | 1.3 kV |
| Max. continuous voltage DC | - |
| Nominal voltage DC | - |
| Nominal voltage AC | 230 V |
| Max. overcurrent protection device, series connection (fuse) | - |
| Max. overcurrent protection device, parallel connection (fuse) | - |
| Max. discharge surge current (8/20) | 20 kA |
| Max. PV-voltage | - |
| Voltage protection level N-PE | 1.3 kV |
| Max. continuous voltage AC | 275 V |
| Short-circuit breaking capacity (Isccr) | - |
| Options | |
| System configuration TN-C | No |
| Leakage-current free | No |
| System configuration DC | No |
| System configuration TN | No |
| System configuration IT | No |
| System configuration TT | Yes |
| System configuration TN-S | Yes |
| System configuration TN-C-S | No |
| System configuration other | No |
| Protection | |
| Integrated short-circuit protection | No |
| Degree of protection (IP) | IP20 |
| Other | |
| Signalling at the device | Optical |
| Connection | |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) | 35 mm² |
| Mounting/installation | |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Measurements | |
| Construction size | 2 modular spacing |
| Communication | |
| With remote signalling contact | No |
| Model/type | |
| Integrated backup fuse | No |
| Category type 2 | Yes |
| Package 1 | |
| volume | 301 cm3 |
| weight | 213 g |
| length | 10 cm |
| width | 7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480586767 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 12,807 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 57 |
| qmin | 57 |
| um | CT |
| gtin | 43606480586765 |
