Descriere

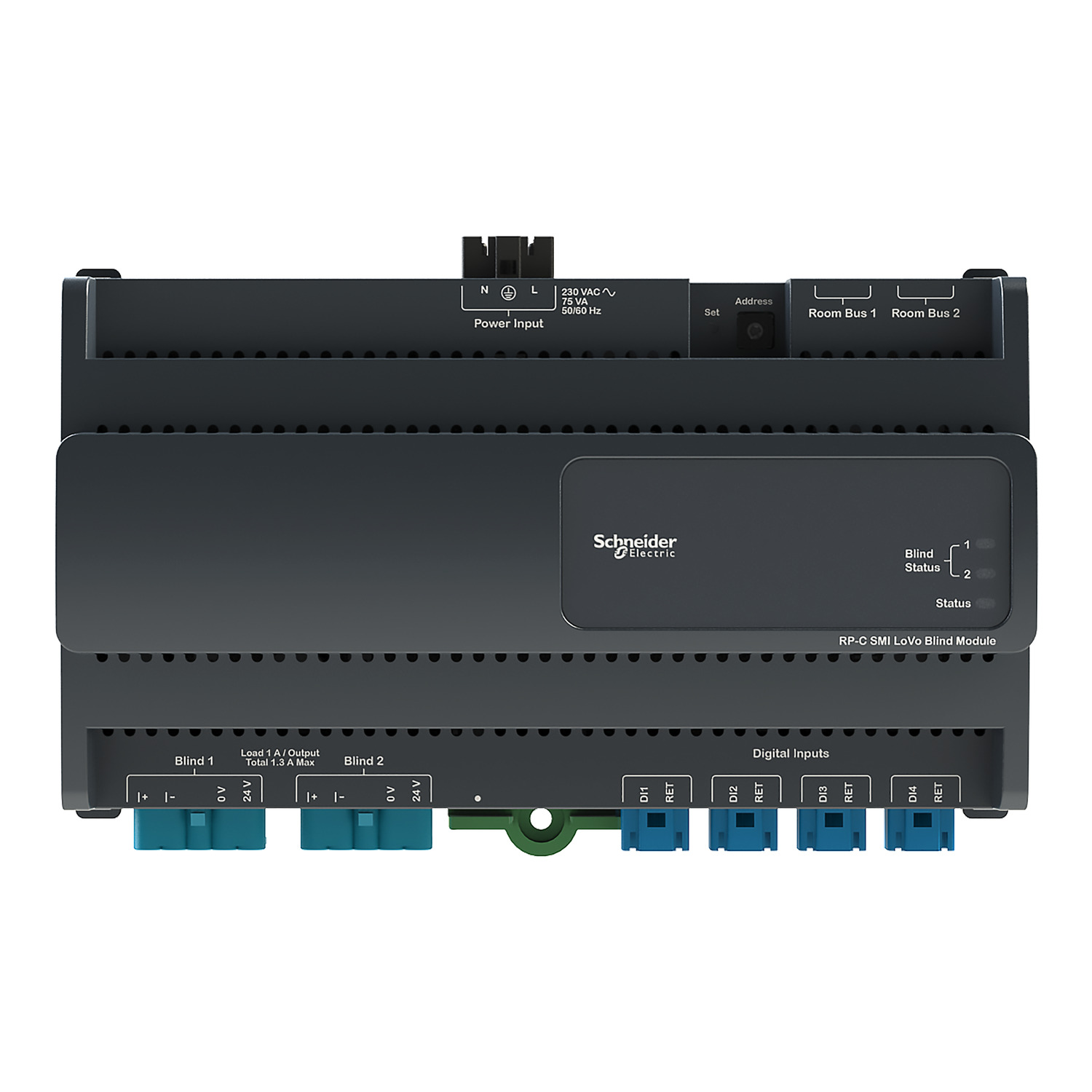

Modul jaluzele SMI LoVo 24V cc, 2 iesiri cu alimentare
Documente
Specificatii
Electrical | |
Output voltage | 24 V |
Max. contact load | - |
Max. contact voltage | - |
Max. power per channel | - |
Supply voltage | 230 V |
Application | |
Suitable for heating | No |
Suitable for cooling | No |
Measurements | |
Width | 198 mm |
Depth | 64 mm |
Height | 110 mm |
Other | |
Reception frequency | - |
Connection | |
Connection for external antenna | No |
Smart control | Yes |
Model/type | |
Number of channels/zone | - |
With time switch clock | - |
Contact type | - |
With extra contact | No |
Options | |
Networkable via radiografic (standard) | No |
Protection | |
Degree of protection (IP) | IP20 |
Communication | |
Networkable via radio (optional) | No |
Package 1 | |
volume | 2037,28 cm3 |
weight | 480 g |
length | 7 cm |
width | 13,6 cm |
qmax | 1 |
qmin | 1 |
um | C62 |
gtin | 3606489856793 |
