Descriere
Earth-leakage add-on protection module VigiPacT, ComPacT NSX 400/630, 200VAC to 440VAC, 30mA to 30A, 4 poles
Documente
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 200 V |
| Rated control supply voltage AC 60 Hz | 200 V |
| Max. rated operation voltage Ue | 440 V |
| Max. power on-delay time | 4000 ms |
| Rated control supply voltage DC | - |
| Rated fault current | 0.03 A |
| Setting/control | |
| Delay adjustable | Yes |
| Package 1 | |
| volume | 4743,76 cm3 |
| weight | 3,306 kg |
| length | 19,7 cm |
| width | 17,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481298669 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 20,537 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 13606481298666 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 93,349 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 24 |
| qmin | 24 |
| um | PF |
Accesorii

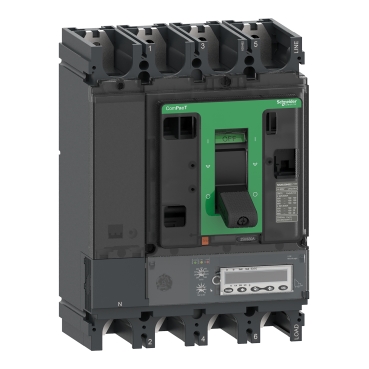

Circuit breaker ComPacT NSX400N, 50 kA at 415 VAC, MicroLogic 2.3 trip unit 400 A, 4 poles 4d
