Descriere
Cofret Mini Kaedra, pentru Prize El., 98 X 310 Mm, 4 Module, 2 deschideri
Documente
Specificatii
| Mounting/installation | |
| With mounting plate | FALSE |
| Mounting method | Surface mounted |
| Measurements | |
| Built-in depth | - |
| Width in number of modular spacings | 4 |
| Built-in height | - |
| Height | 310 mm |
| Inner depth | 61 mm |
| Width | 98 mm |
| Built-in width | - |
| Depth | 98.5 mm |
| Model/type | |
| Type of covering | Door |
| Transparent cover/door | TRUE |
| Cover model | Closed |
| Type of closure | Other |
| Number of rows | 1 |
| With lock | FALSE |
| EMC-version | FALSE |
| Earthing terminal block | FALSE |
| Neutral terminal block | FALSE |
| Options | |
| Extension possible | TRUE |
| Signal passing door | TRUE |
| DIN-rail | TRUE |
| Colour | |
| RAL-number | 7035 |
| Colour | Grey |
| Protection | |
| Degree of protection (IP) | IP65 |
| Material | |
| Housing material | Plastic |
| Package 1 | |
| volume | 2916,79 cm3 |
| weight | 486 g |
| length | 31 cm |
| width | 9,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430131762 |
| Package 2 | |
| volume | 30294 cm3 |
| weight | 4,296 kg |
| length | 40,5 cm |
| width | 34 cm |
| qmax | 8 |
| qmin | 8 |
| um | CT |
| gtin | 23303430131766 |
| Package 3 | |
| volume | 768000 cm3 |
| weight | 104,736 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 192 |
| qmin | 192 |
| um | PF |
| gtin | 73303430131761 |

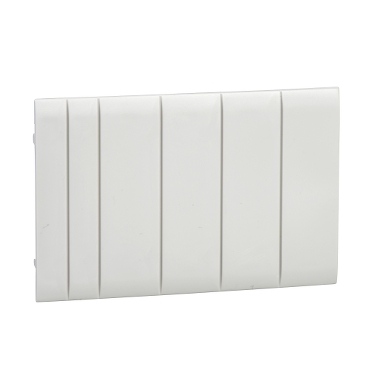

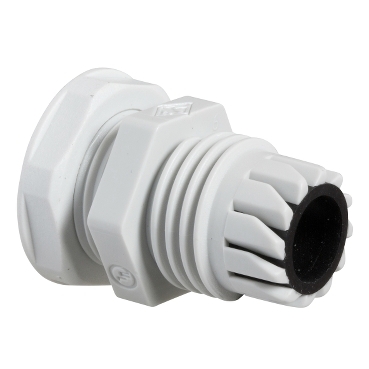

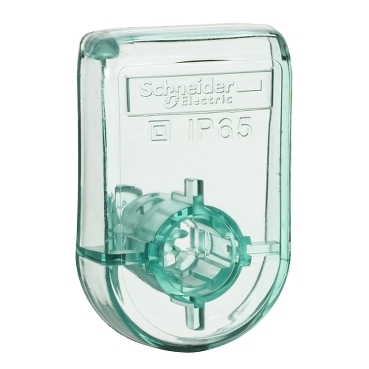

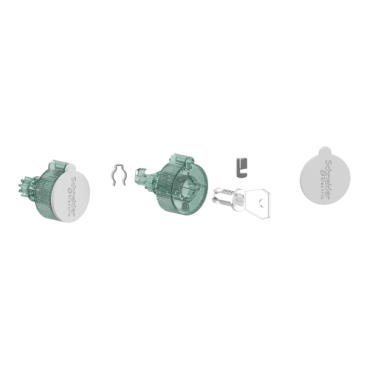

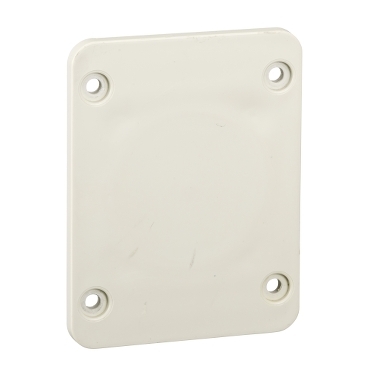

Accesorii
