Descriere

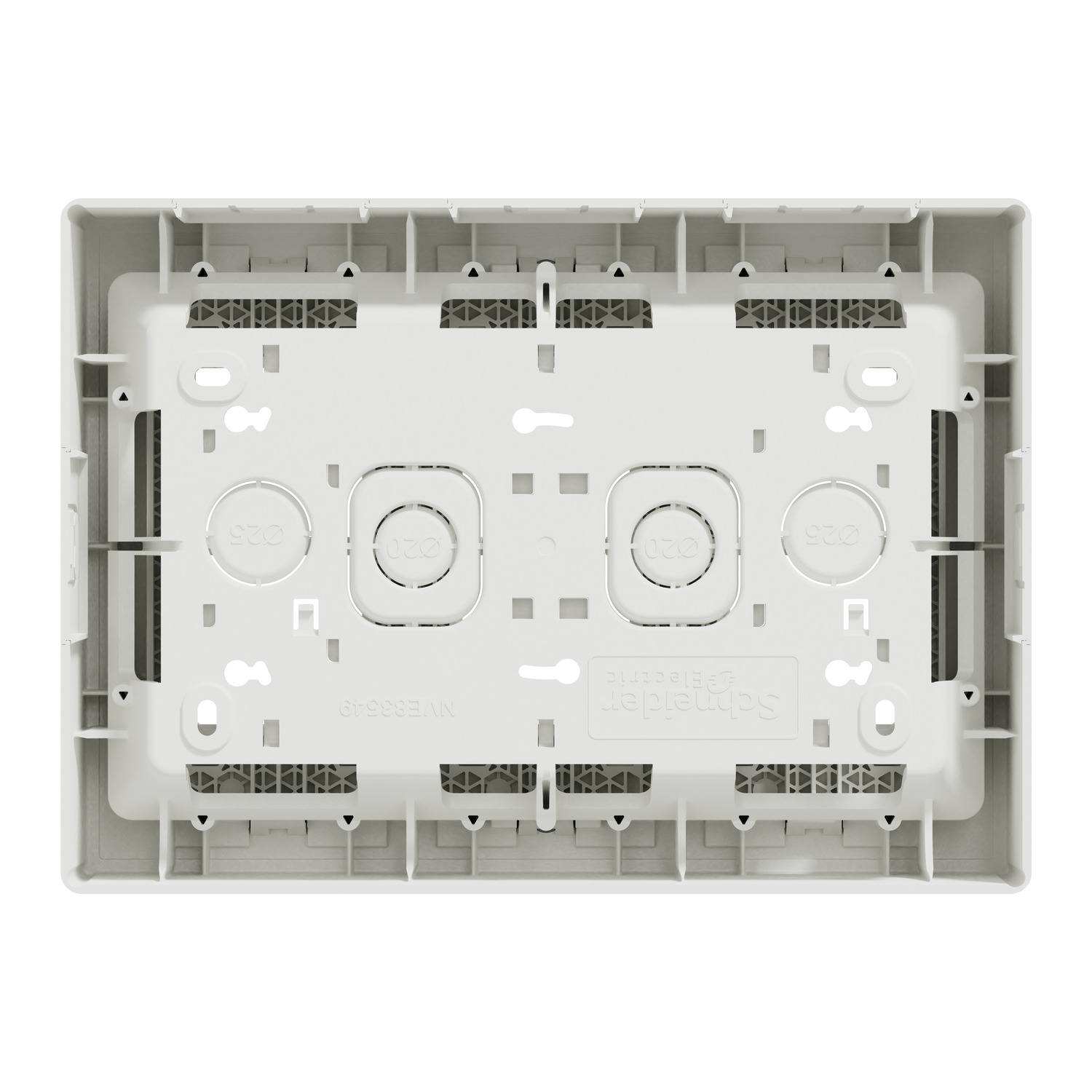

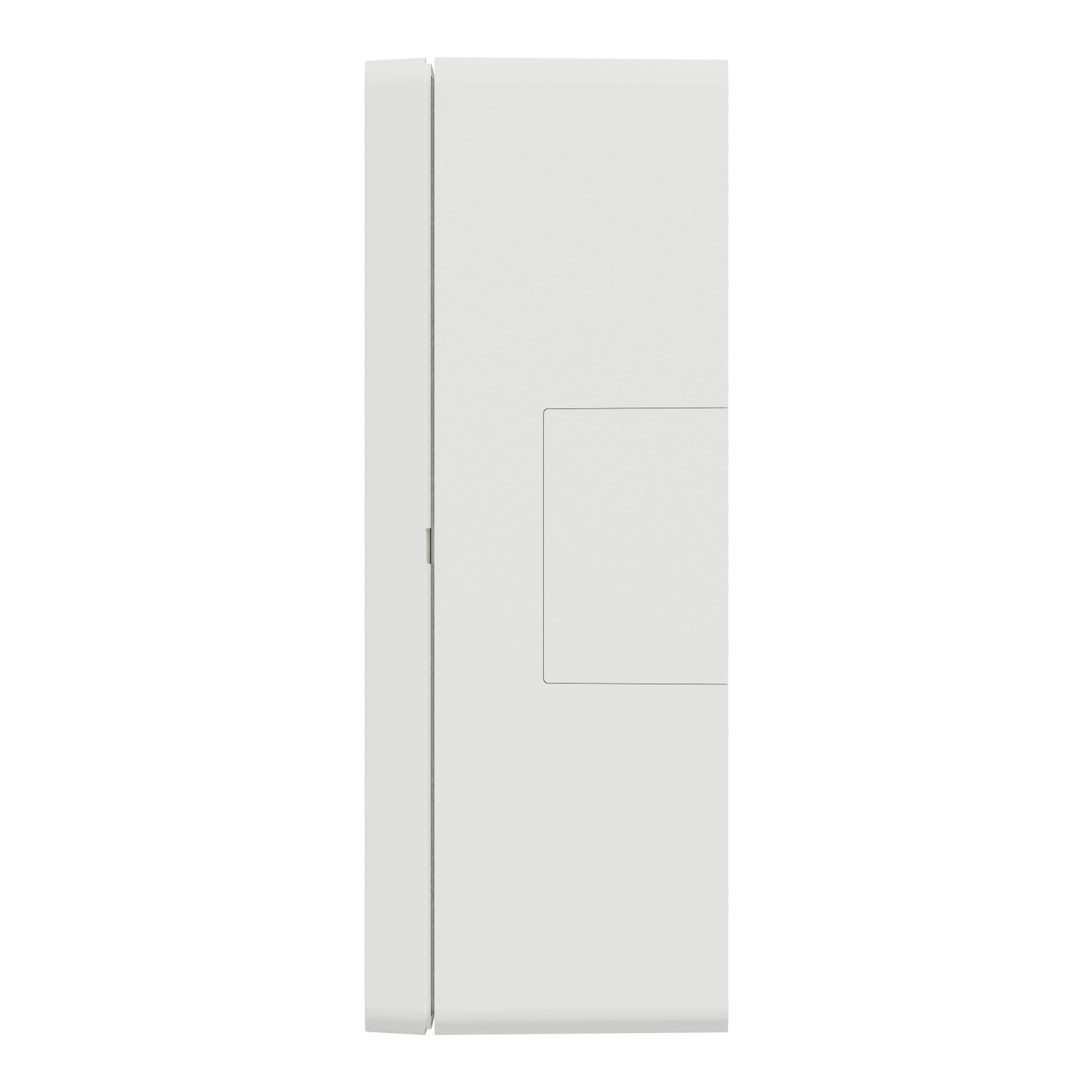

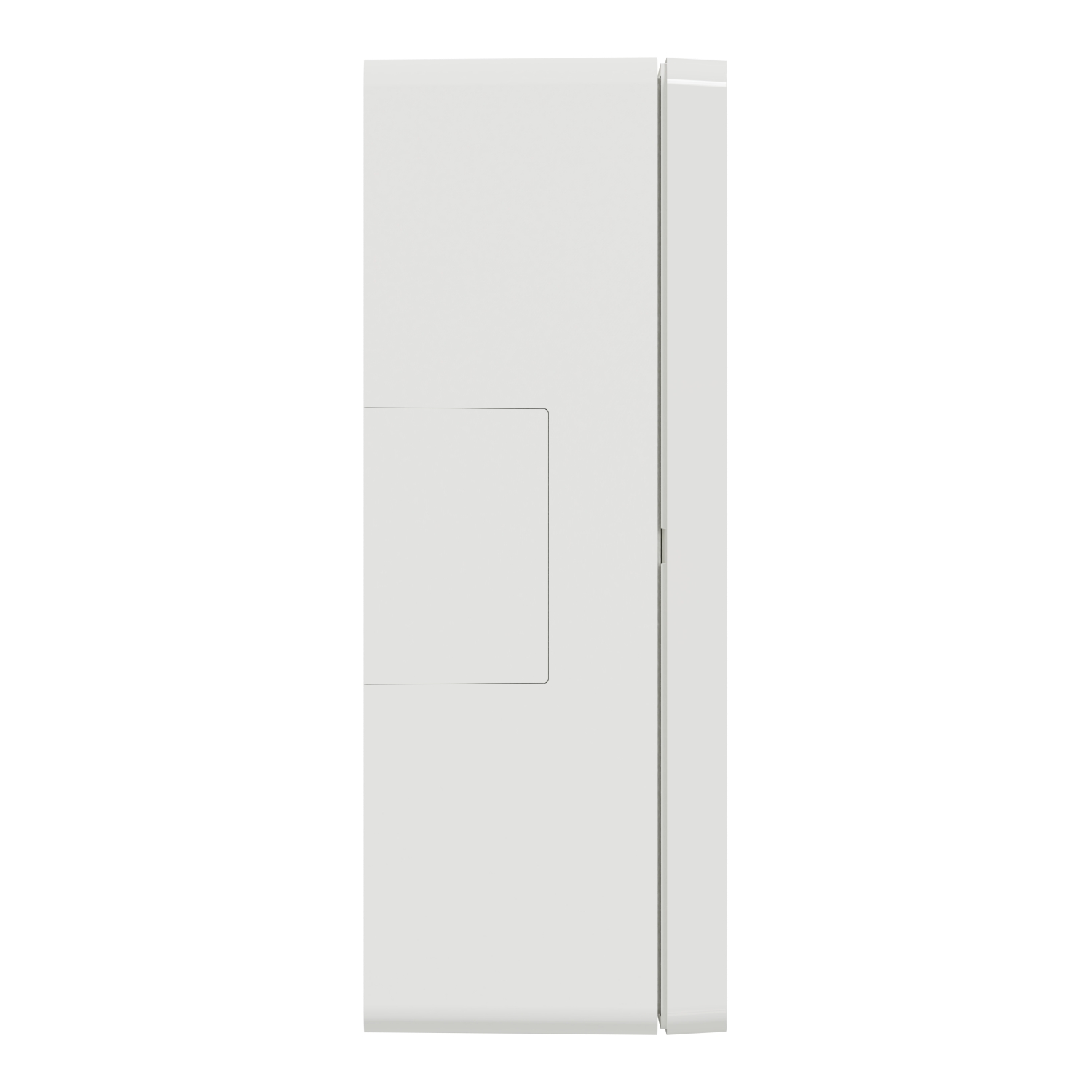

Noua Unica, Post de lucru 3x4m vertical,aparent, alb
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Colour | |
| Colour | White |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Mounting/installation | |
| Mounting direction | Vertical |
| Cross-trunking mounting | Yes |
| Measurements | |
| Device width | 230 mm |
| Device height | 165 mm |
| Device depth | 60 mm |
| Model/type | |
| With cover frame | Yes |
| With duct entry | Yes |
| Assembly arrangement | Surface mounted box |
| With cable entry | Yes |
| Number of modules (module system) | 12 |
| Shape | Rectangular |
| With screw gland entry | No |
| Number of units | 12 |
| Protection | |
| Shock resistant | No |
| Degree of protection (IP) | IP20 |
| Application | |
| Suitable for modular domestic switching devices | Yes |
| Package 1 | |
| volume | 3515,5 cm3 |
| weight | 607 g |
| length | 25 cm |
| width | 17,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489452124 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 9,271 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 14 |
| qmin | 14 |
| um | CT |
| gtin | 43606489452122 |
