Descriere

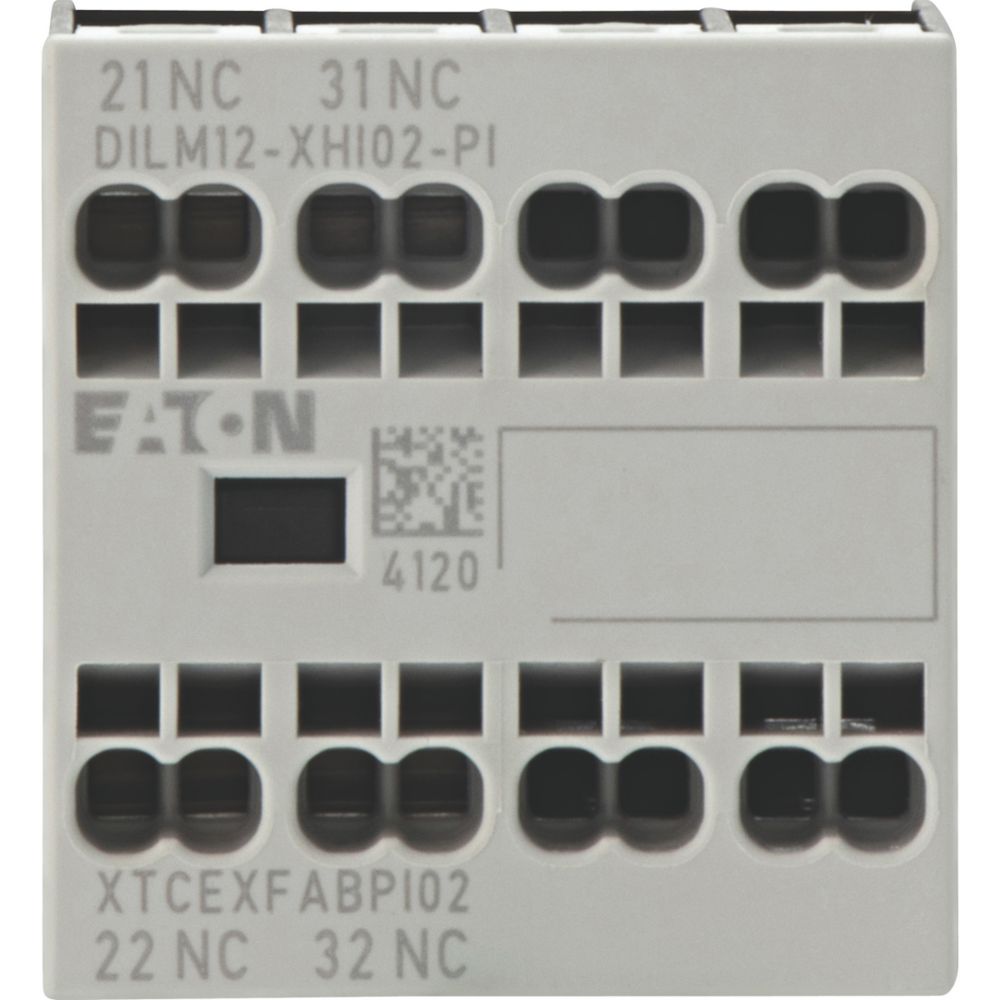

Auxiliary contact module, with interlocked opposing contacts, Function: for standard applications, 2 pole, Connection technique: Push in terminals, Ith 16 A, Rated operational current AC-15 220 V 230 V 240 V: Ie= 4 A, Rated operational current AC-15 380 V 400 V 415 V: Ie= 4 A, Contacts N/C = Normally closed: 2 NC, Mounting type: Front fixing, For use with: DILA…-PI, DILM7…-PI, DILM9…-PI, DILM12…-PI, DILM15…-PI, DILMP20…-PI, Type: Front mounting auxiliary contact
Specificatii
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 2 |
| Type of electric connection | Spring clamp connection |
| Model/type | |
| Number of fault-signal switches | 0 |
| Model | Clip-on |
| Lamp holder | None |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 4 |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 0,00007387 |
| weight | 0,0426 |
| length | 0,056 |
| width | 0,038 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081978632 |
| Package 2 | |
| volume | 0,00039406 |
| weight | 0,213 |
| length | 0,17 |
| width | 0,038 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 4015081979110 |
| Dimensions of product | |
| Volume | 0,00007387 |
| Weight | 0,039 |
| Length | 0,054 |
| Width | 0,036 |
| Depth | 0,038 |
