Descriere
Maner rotativ extins, ComPacT NSX 400/630, rosu, lungimea arborelui între 209 si 600 mm, IP55
Documente
Specificatii
| Protection | |
| Degree of protection (NEMA) | - |
| Model/type | |
| With axis extension | Yes |
| With handle red/yellow | Yes |
| With door interlock | No |
| Options | |
| Lockable | Yes |
| Package 1 | |
| volume | 7760 cm3 |
| weight | 889 g |
| length | 48,5 cm |
| width | 16 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482004139 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 5,539 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 43606482004137 |
| Package 3 | |
| volume | 979200 cm3 |
| weight | 78,5 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 60 |
| qmin | 60 |
| um | PF |
| gtin | 73606482004138 |
Accesorii

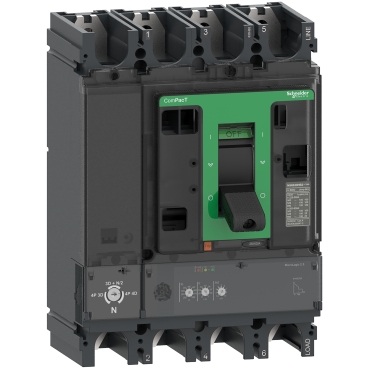

Circuit breaker ComPacT NSX400N, 50 kA at 415 VAC, MicroLogic 2.3 trip unit 400 A, 4 poles 4d
Cod: C40N42D400
Schneider Electric
circuit breaker ComPacT NSX630F, 36 kA at 415 VAC, MicroLogic 2.3 trip unit 630 A, 4 poles 4d
Cod: C63F42D630
Schneider Electric
