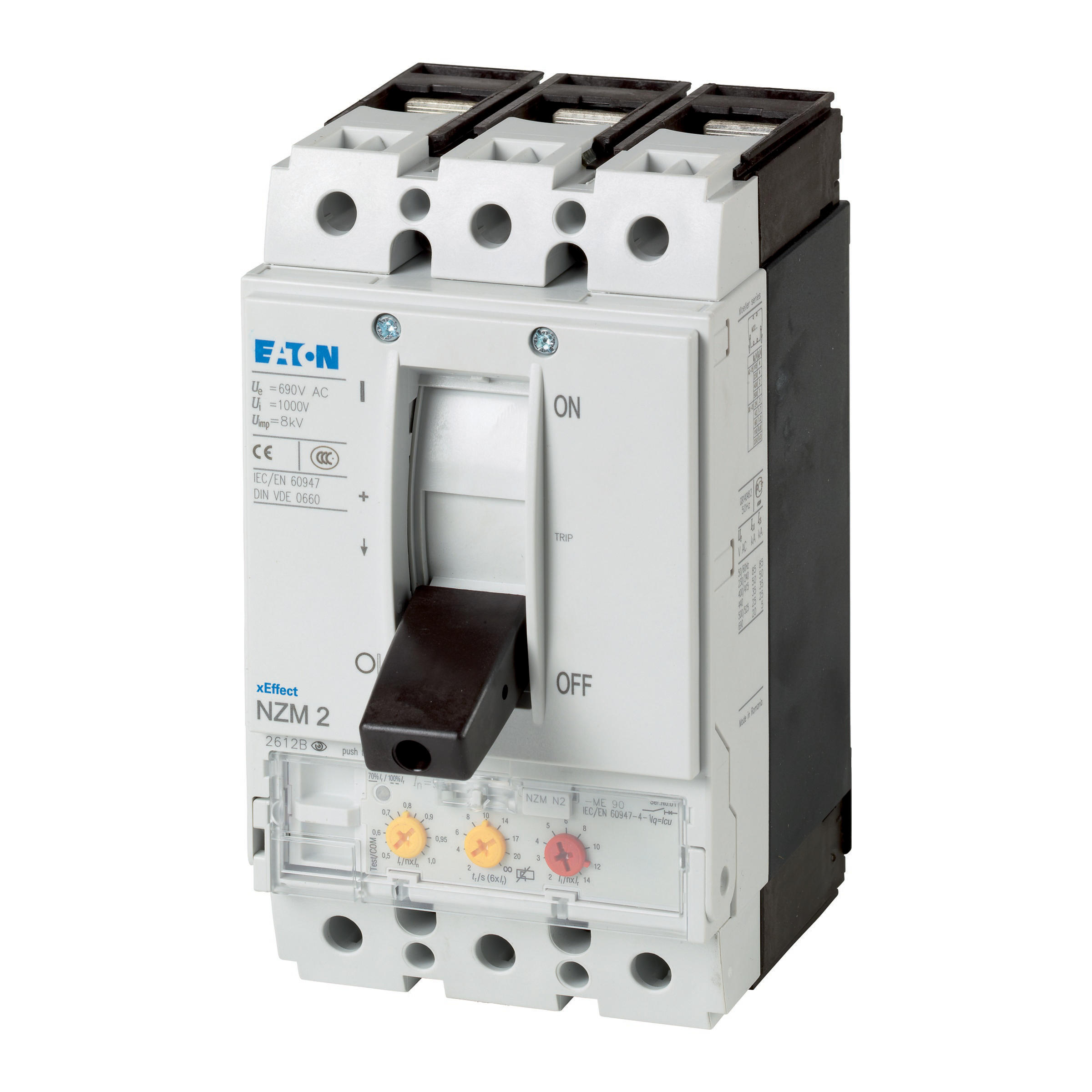

Circuit-breakers of the NZM..-ME..NA series cover all applications with only four compact sizes and are suitable for the IEC market. The mounting is always flexible due to the modular function groups. With electronic release for the motor protection with phase failure sensitivity. Notes: switches conform to UL/CSA as well as the IEC regulations. IEC switching performance values are contained on the rating plate. 100% rated. For use in motor circuits with contactor. additional motor protective characteristics (calibration) to UL508, CSA-C22.2 No. 14-05 . Adjustable overload releases Ir, adjustable time delay setting to overcome current peaks tr:2-20s at 6xIr
Documente
Specificatii
| Electrical | |
| Overload release current setting | 45 |
| Adjustment range undelayed short-circuit release | 90 |
| Rated operating voltage | 690 |
| Rated permanent current Iu | 90 |
| Rated operation power at AC-3, 230 V | 22 |
| Rated operation power at AC-3, 400 V | 45 |
| Power loss | - |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 35 |
| Model/type | |
| With thermal overload protection | Yes |
| Type of control element | Rocker lever |
| With integrated auxiliary switch | No |
| Options | |
| Phase failure sensitive | Yes |
| Other | |
| Switch off technique | Electronic |
| Device construction | Built-in device fixed built-in technique |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Protection | |
| Degree of protection (IP) | IP20 |
| Measurements | |
| Height | 195 |
| Width | 105 |
| Depth | 149 |
