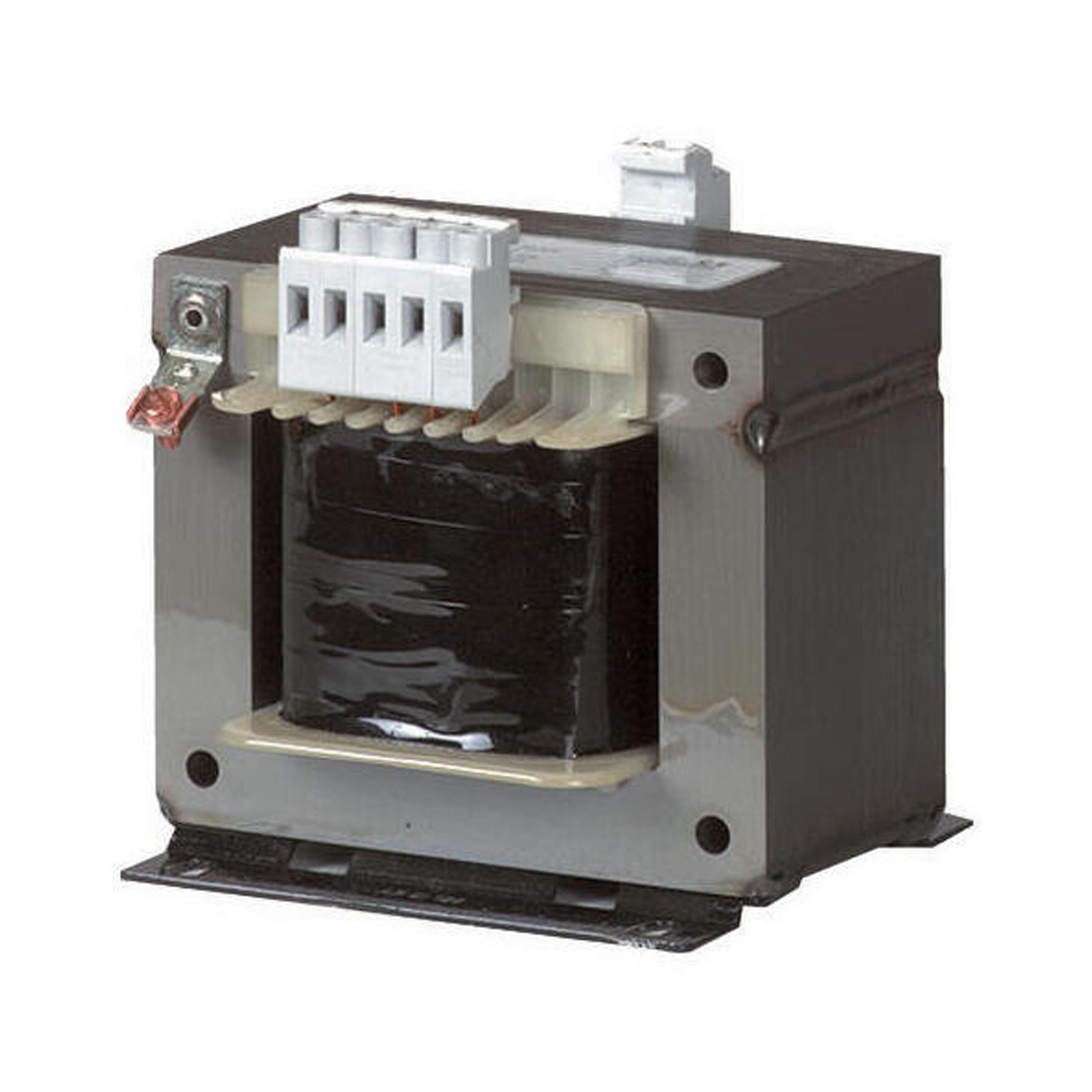

Control transformer, Product range: Single-phase control transformers ST..., Basic function: Single-phase STN control transformers, Rated input voltage: 230± 5 % V, Rated output voltage: 24 V, Rated power: 0.06 kVA, Short-time rating: 0.095 kVA, Degree of Protection: IP00, Standards Built and tested to: IEC/EN 61558-2-2, VDE 0570 Part 2-2, Suitable for use to: IEC/EN 60204-1, ÖVE-EN 13, VDE 0113, VDE 0100 Part 410
Specificatii
| Model/type | |
| Built as safety transformer | No |
| Built as isolating transformer | No |
| Built as energy saving transformer | No |
| Electrical | |
| Primary voltage 1 | 230 |
| Primary voltage 2 | 0 |
| Primary voltage 3 | 0 |
| Primary voltage 4 | 0 |
| Primary voltage 5 | 0 |
| Primary voltage 6 | 0 |
| Primary voltage 7 | 0 |
| Primary voltage 8 | 0 |
| Primary voltage 9 | 0 |
| Primary voltage 10 | 0 |
| Secondary voltage 1 | 24 |
| Secondary voltage 2 | 0 |
| Secondary voltage 3 | 0 |
| Secondary voltage 4 | 0 |
| Secondary voltage 5 | 0 |
| Secondary voltage 6 | 0 |
| Secondary voltage 7 | 0 |
| Secondary voltage 8 | 0 |
| Secondary voltage 9 | 0 |
| Secondary voltage 10 | 0 |
| Rated apparent power | 60 |
| Power consumption in standby mode | 21 |
| Relative short circuit voltage | 11 |
| Performance | |
| Power | - |
| Material | |
| Type of insulation material according to IEC 85 | B |
| Conductor material | Copper |
| Options | |
| Short-circuit-proof | No |
| Ring core | No |
| Suitable for distribution board | No |
| Measurements | |
| Width | 66 |
| Height | 78 |
| Depth | 79 |
| Protection | |
| Degree of protection (IP) | IP00 |
| Mounting/installation | |
| Suitable for mounting on PCB | No |
| Package 1 | |
| volume | 0,00176929 |
| weight | 1,275 |
| length | 0,119 |
| width | 0,126 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082049355 |
| Dimensions of product | |
| Volume | 0,00040669 |
| Weight | 1,125 |
| Length | 0,079 |
| Width | 0,066 |
| Depth | 0,078 |
