Descriere

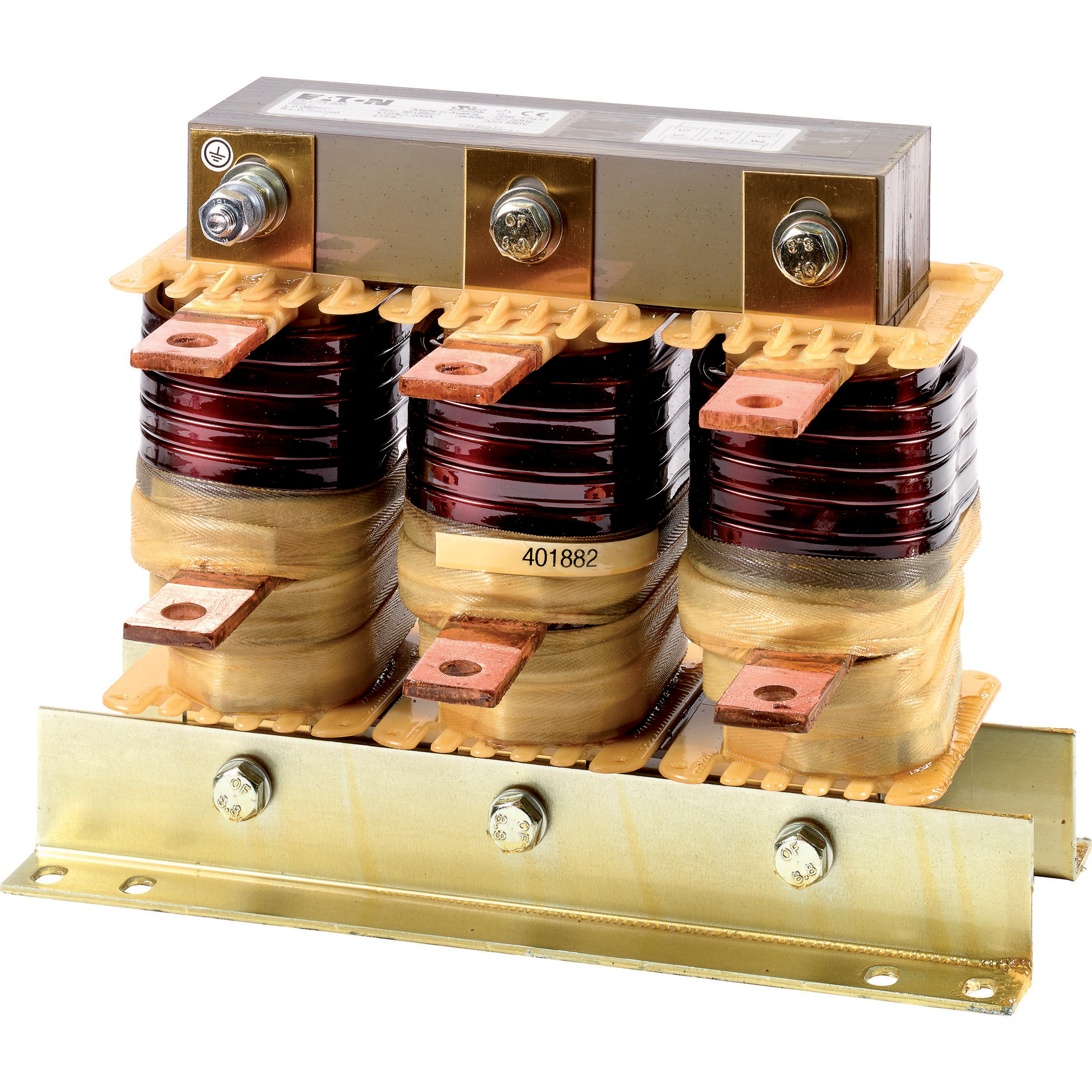

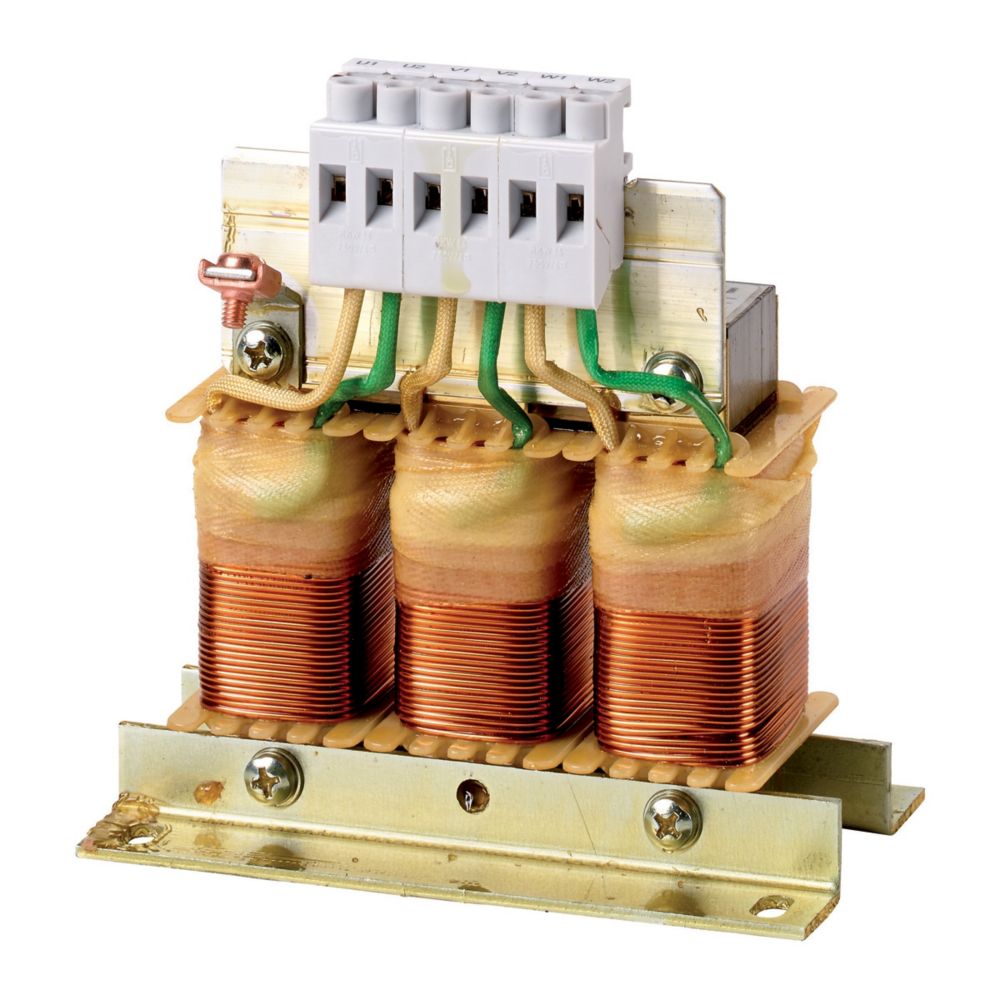

Main choke, rated operating voltage 480 V AC, three-phase, uk =4%
Specificatii
| Application | |
| Suitable as interference suppression reactance coil | No |
| Suitable as net reactance coil | Yes |
| Suitable as commutation reactance coil | No |
| Suitable as ripple filter choke | No |
| Suitable as output reactance coil | No |
| Model/type | |
| Number of poles, primary side | 3 |
| Other | |
| Rated clock frequency | 0 |
| Rated operating frequency | 50 |
| Rated inductance | 0.31 |
| Resonance frequency | 0 |
| Electrical | |
| Max. rated operation voltage Ue | 550 |
| Rated current AC | 60 |
| Max. rated current (Ith) at rated voltage DC | 60 |
| Relative short circuit voltage | 2.5 |
| Protection | |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 0,005861 |
| weight | 7,083 |
| length | 0,145 |
| width | 0,235 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082695071 |
| Dimensions of product | |
| Volume | 0,002703 |
| Weight | 5,9 |
| Length | 0,105 |
| Width | 0,195 |
| Depth | 0,132 |
