Descriere

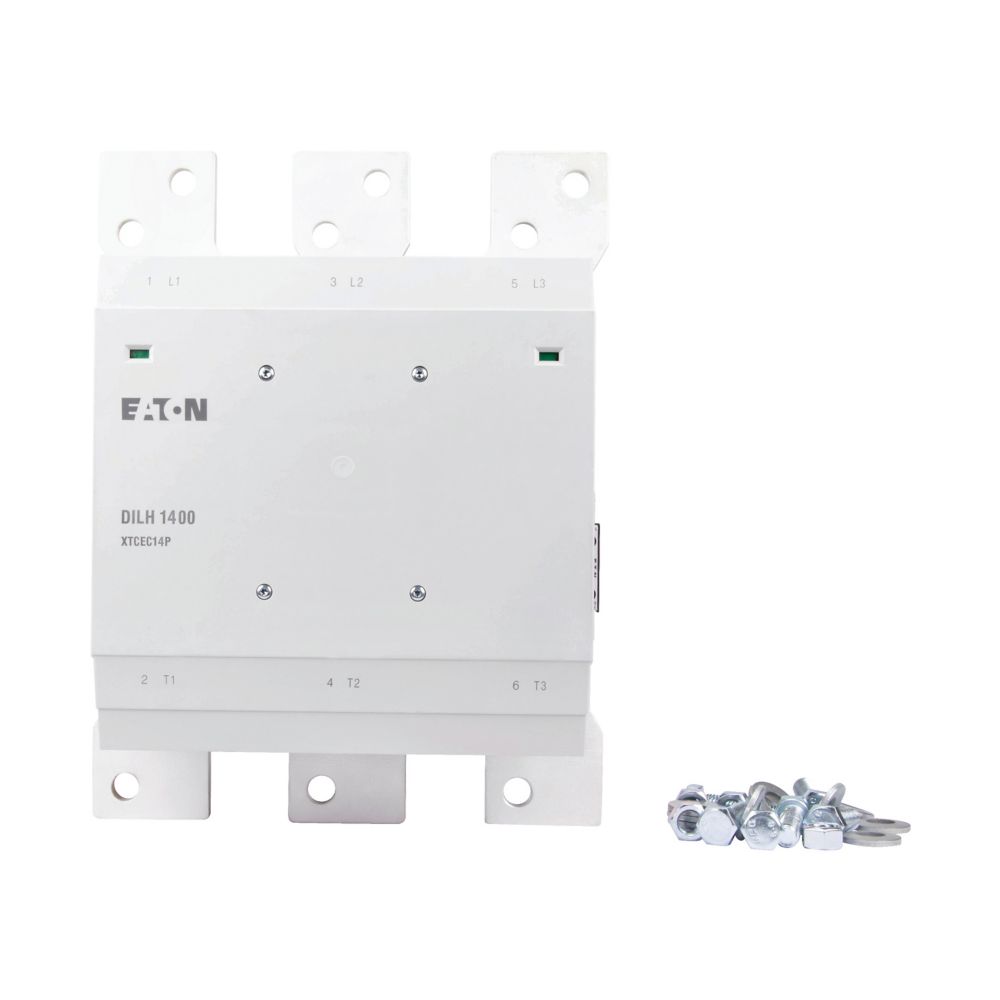

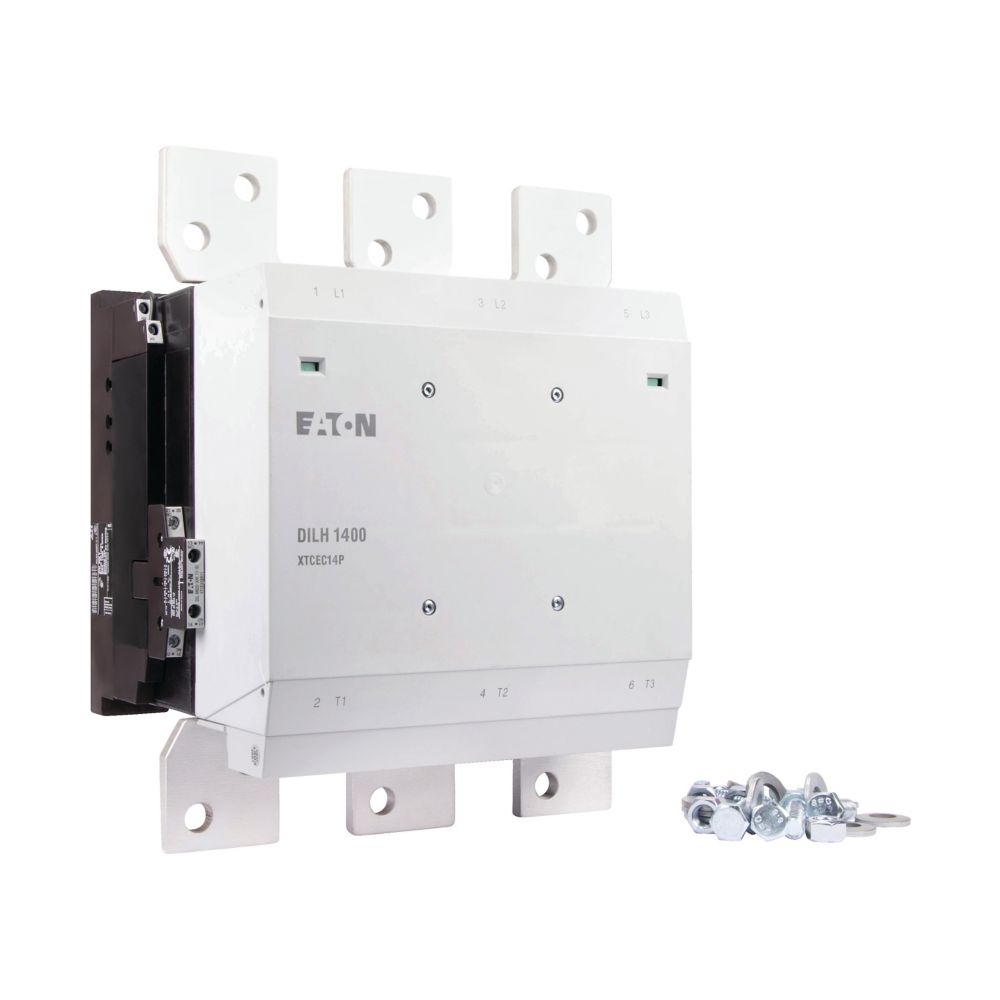

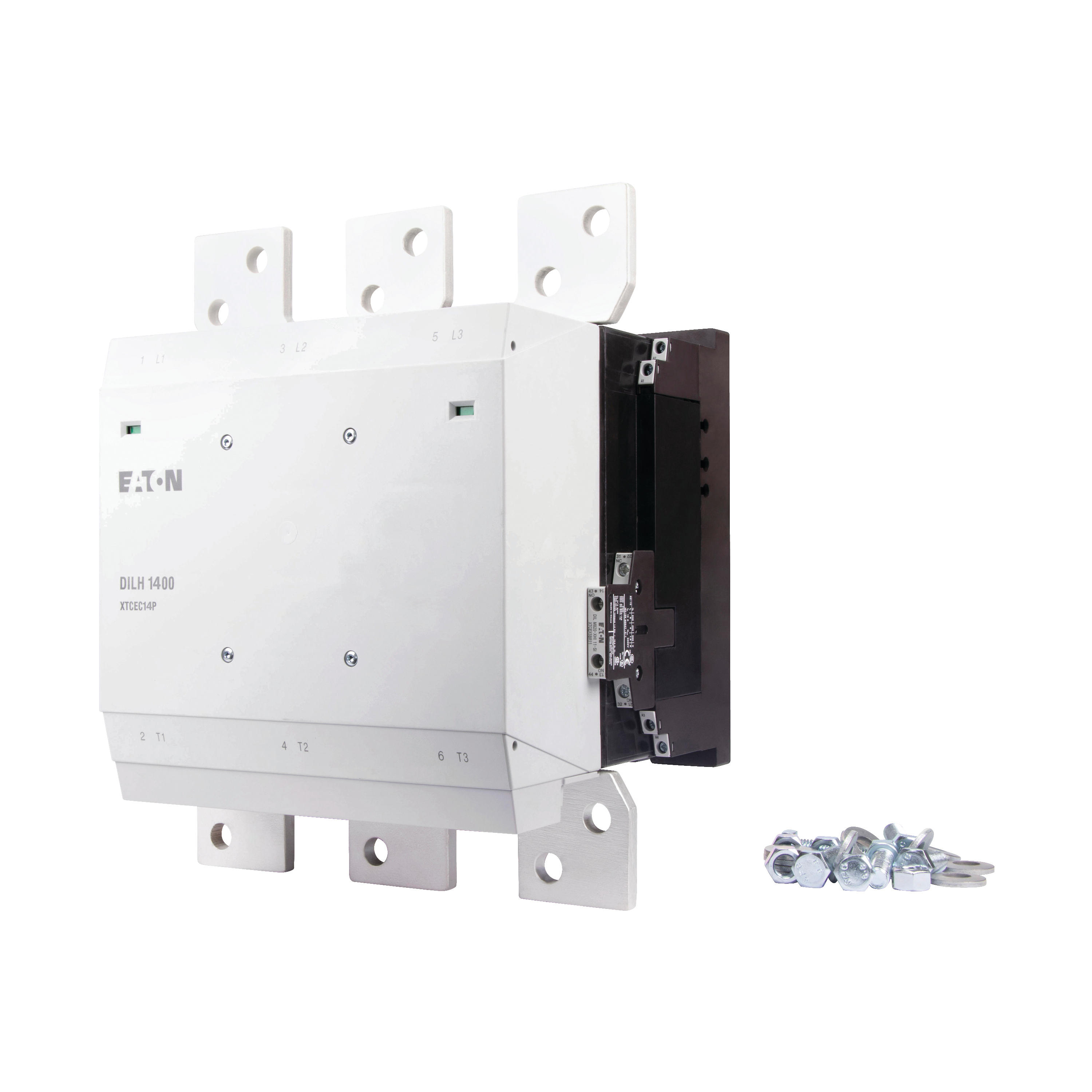

Contactor, Application: Mains contactors for resistive loads from 1000 A, AC -1 contactors greater than 1000 A, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, Connection technique: Screw connection, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 1714 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 3500 A, For use with: DILM820-XHI…, Instructions: integrated suppressor circuit in actuating electronics, 660 V, 690 V or 1000 V: not directly reversing, Voltage AC/DC: AC and DC operation
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 |
| Rated control supply voltage AC 60 Hz | 230 |
| Rated control supply voltage DC | 230 |
| Voltage type for actuating | AC/DC |
| Operating voltage AC 50 Hz | 230 |
| Operating voltage AC 60 Hz | 230 |
| Rated operation current Ie at AC-1, 400 V | - |
| Rated operation current Ie at AC-3, 400 V | 0 |
| Rated operation power at AC-3, 400 V | 0 |
| Rated operation current Ie at AC-4, 400 V | 0 |
| Rated operation power at AC-4, 400 V | 0 |
| Rated operation power NEMA | 0 |
| Connection | |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection of main circuit | Rail connection |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Options | |
| Suitable for distribution board | No |
| Measurements | |
| Width | 260 |
| Height | 342 |
| Depth | 232 |
| Package 1 | |
| volume | 0,034936 |
| weight | 16,007 |
| length | 0,267 |
| width | 0,305 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082724412 |
| Dimensions of product | |
| Volume | 0,020629 |
| Weight | 14,4 |
| Length | 0,232 |
| Width | 0,26 |
| Depth | 0,342 |
