Descriere

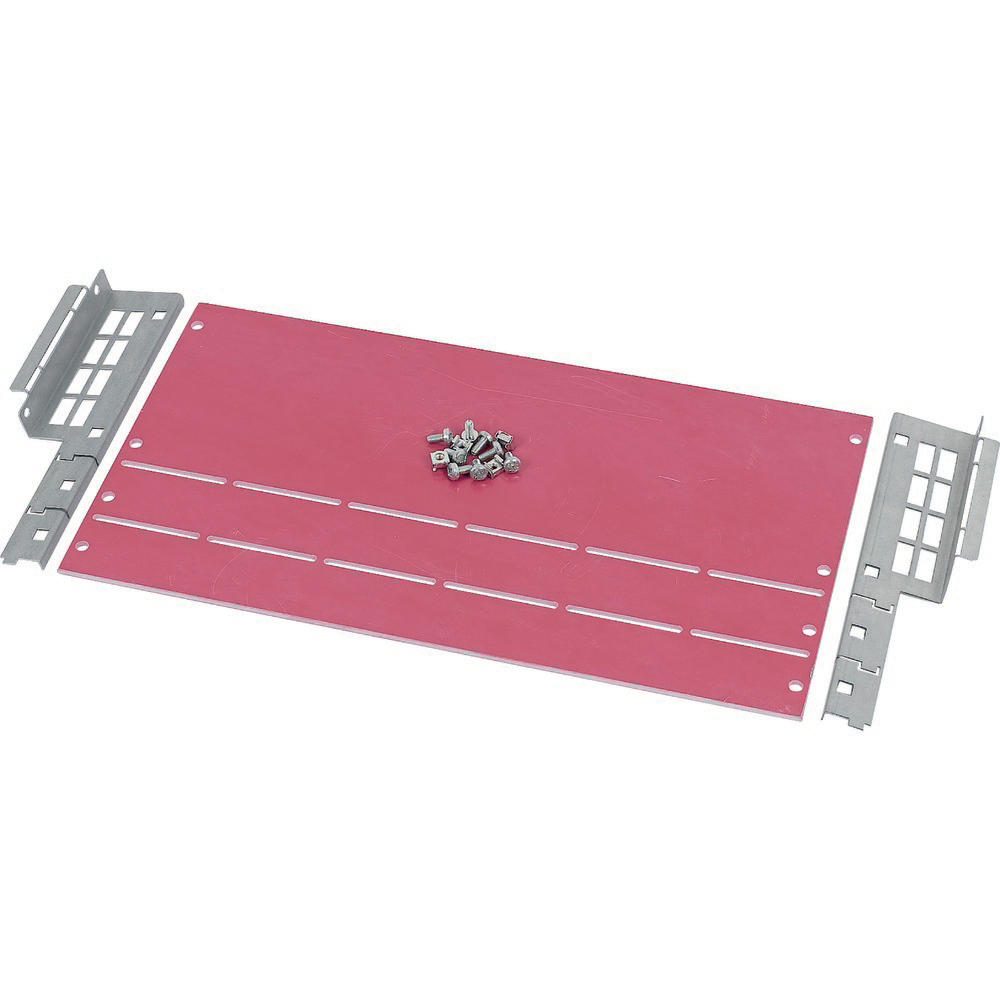

Eaton xEnergy Main LV systems LV switchgear. Partition, IZMX connection-/busbar back area, horizontal, WxD=425x200mm
Specificatii
| Measurements | |
| Modular spacing | 12.5 |
| Suitable for enclosure building width | 425 |
| Suitable for enclosure building depth | 200 |
| Width | 270 |
| Height | 50 |
| Number of height units | 0 |
| Material | |
| Material | Plastic |
| Surface finishing | Other |
| Colour | |
| Colour | Red |
| RAL-number | 0 |
| Model/type | |
| With cable entry | No |
| With lock | No |
| Construction type | Individual part |
| Options | |
| For internal separation form 2a | Yes |
| For internal separation form 2b | Yes |
| For internal separation form 3a | Yes |
| For internal separation form 3b | Yes |
| For internal separation form 4a | Yes |
| For internal separation form 4b | Yes |
| Package 1 | |
| volume | 0,004253 |
| weight | 1,77 |
| length | 0,315 |
| width | 0,27 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081299508 |
| Dimensions of product | |
| Volume | 0,004253 |
| Weight | 1,2 |
| Length | 0,315 |
| Width | 0,27 |
| Depth | 0,05 |
