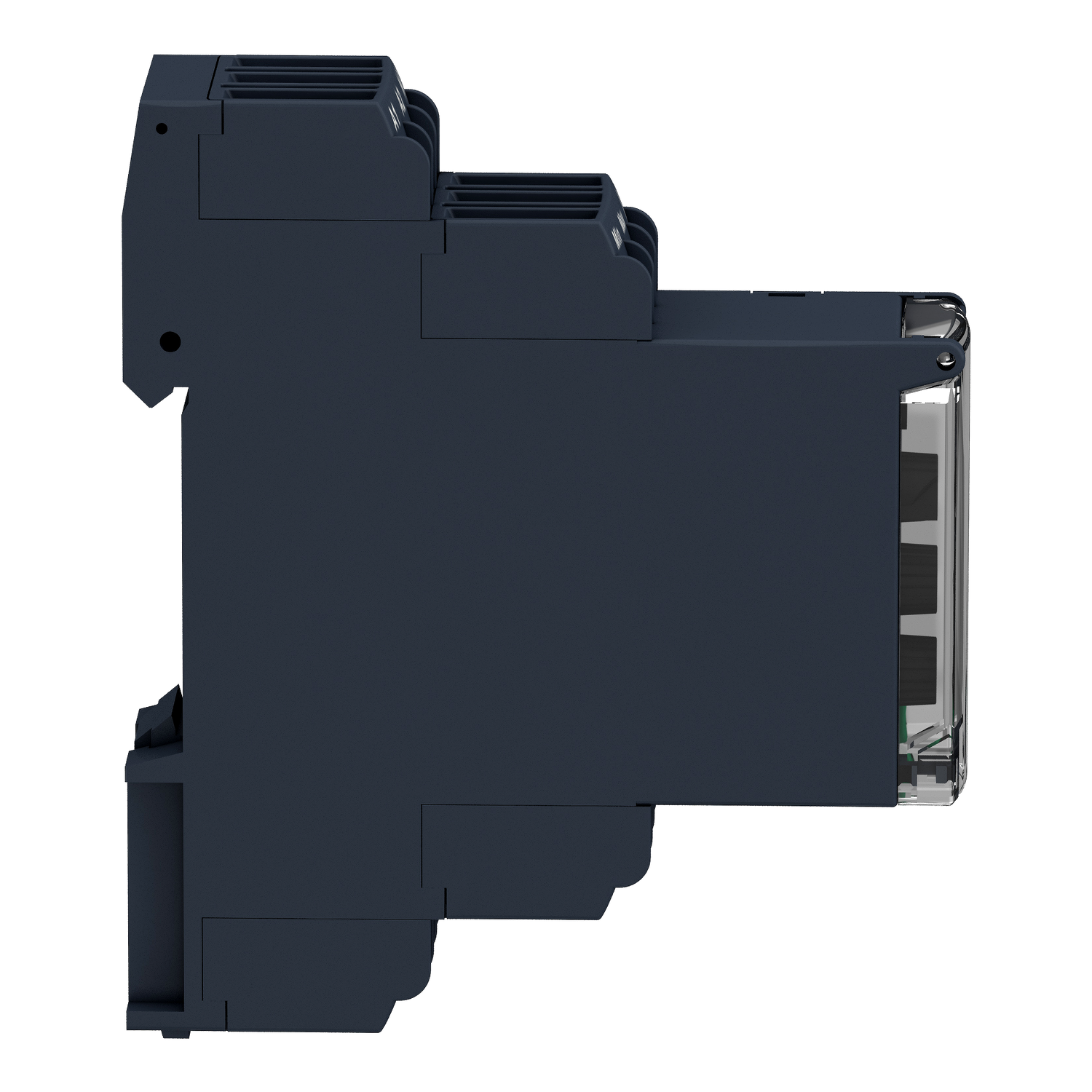

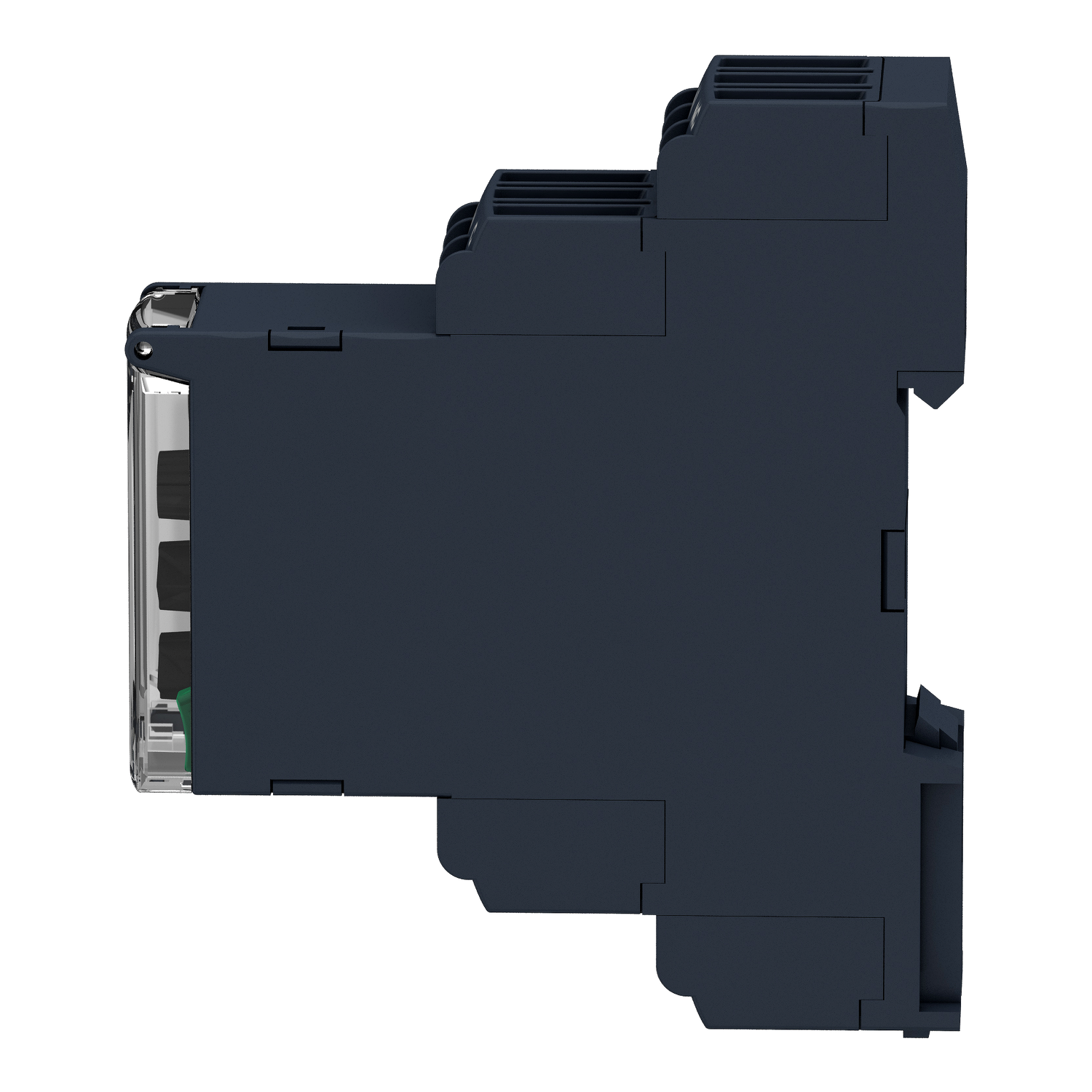

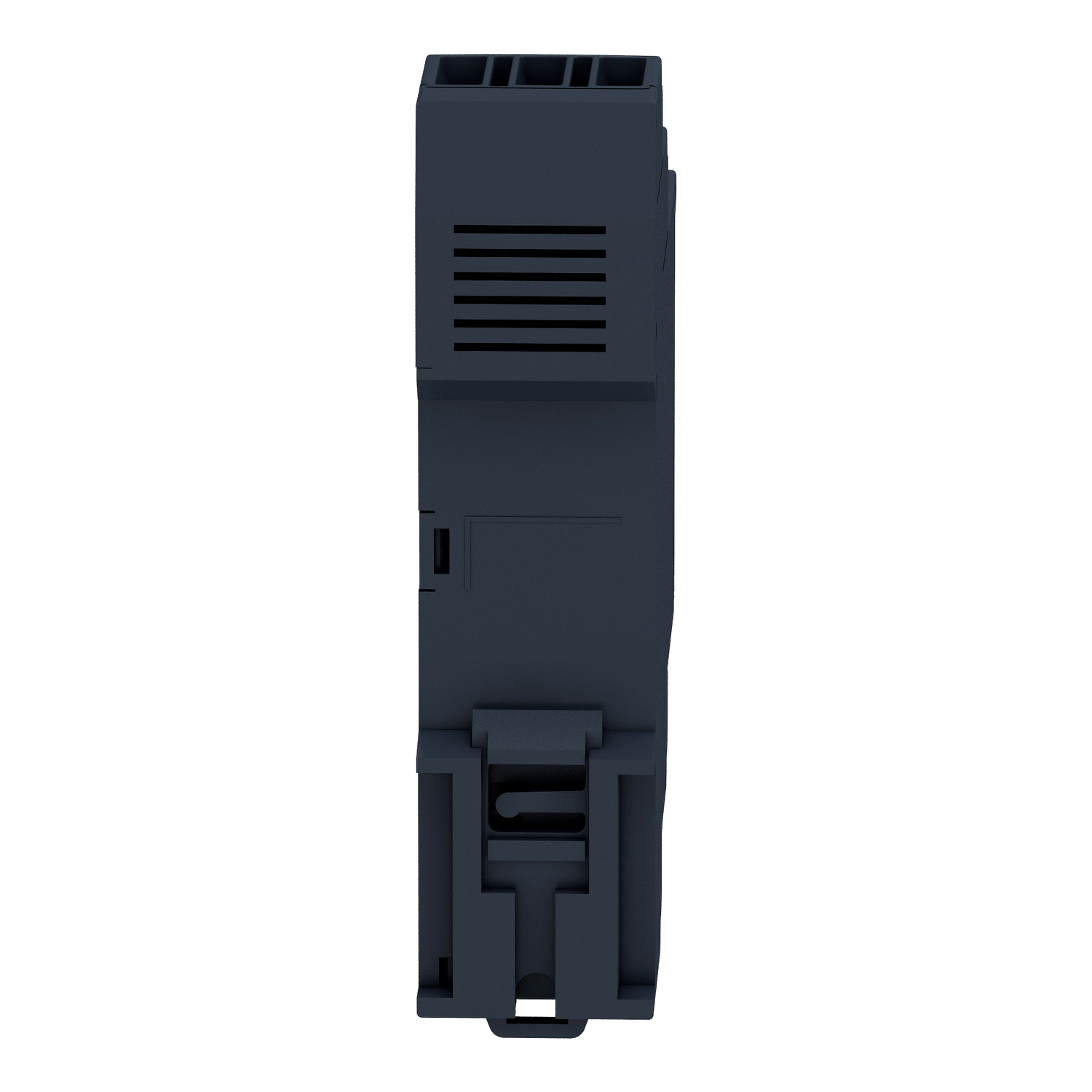

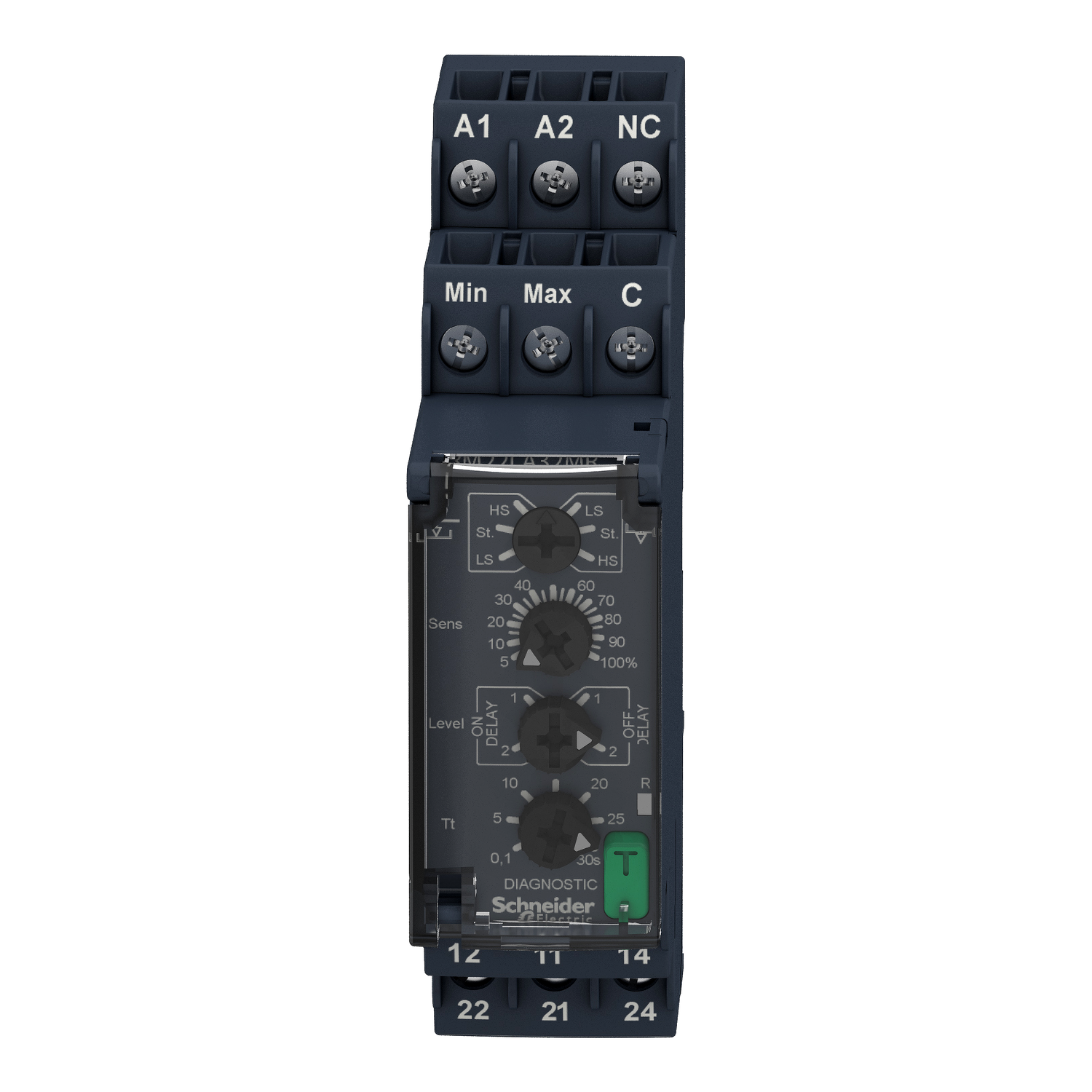

Zelio Control RM22 -releu pt control nivel - 2OF - 24 la 240Vca/cc
Documente
Specificatii
| Measurements | |
| Width | 22.5 mm |
| Depth | 73 mm |
| Height | 90 mm |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 24 V |
| Rated control supply voltage AC 60 Hz | 24 V |
| Voltage type for actuating | AC/DC |
| Rated control supply voltage DC | 24 V |
| Setting/control | |
| Response value sensitivity adjustable | Yes |
| Min. adjustable operate delay time | 0.1 s |
| Min. adjustable off-delay time | 0.1 s |
| Options | |
| Cascadable | No |
| Connection | |
| Type of electric connection | Screw connection |
| Number of inputs for electrodes | 3 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 2 |
| Number of contacts as normally closed contact | 2 |
| Other | |
| Physical measurement principle | Conductive |
| Model/type | |
| With detachable clamps | No |
| Operating conditions | |
| Max. permitted operate delay time | 30 s |
| Max. permitted off-delay time | 30 s |
| Package 1 | |
| volume | 202,54 cm3 |
| weight | 122 g |
| length | 9,5 cm |
| width | 8,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480792342 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,492 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 43606480792340 |
| Package 3 | |
| volume | 288000 cm3 |
| weight | 95,14 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 640 |
| qmin | 640 |
| um | PF |
