Descriere

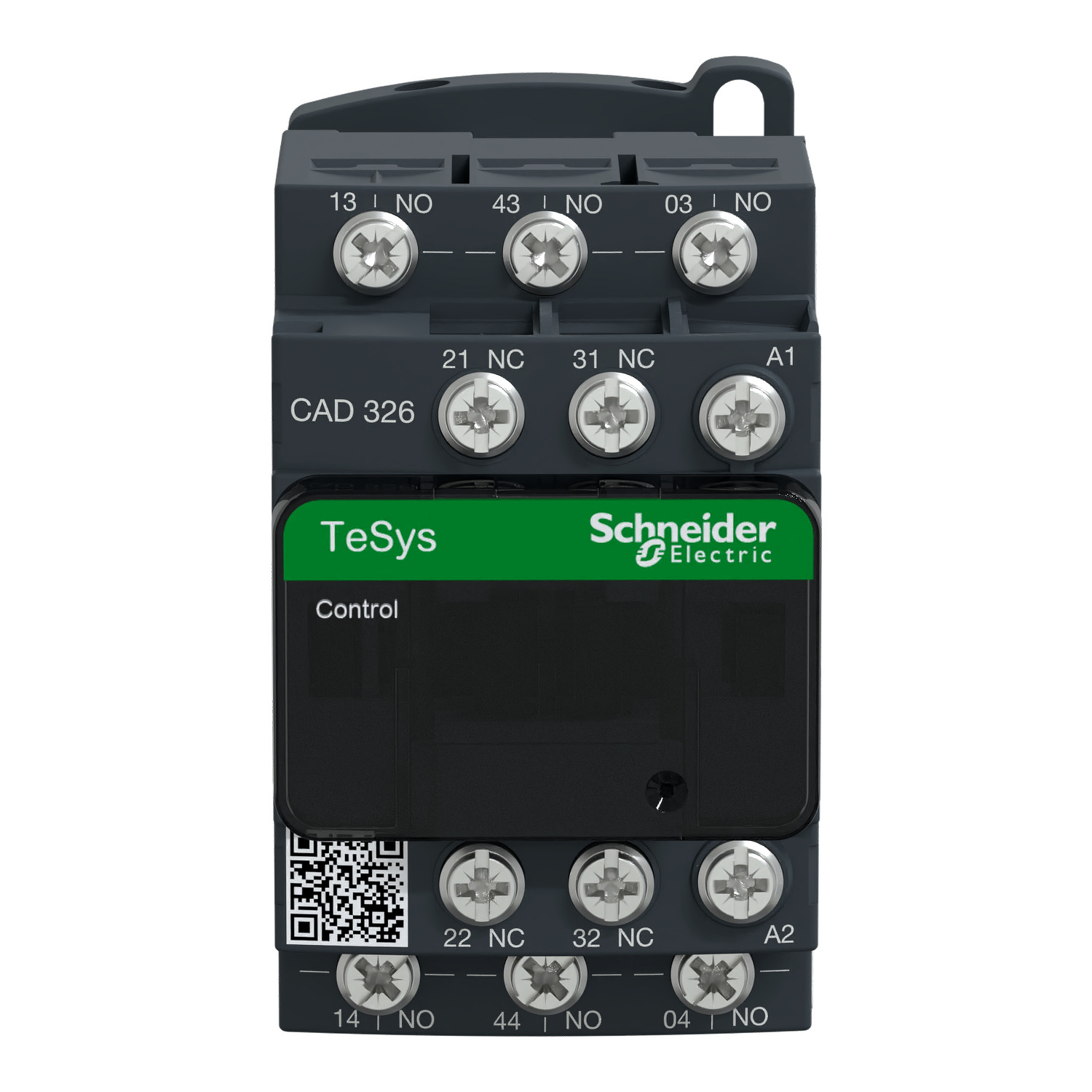

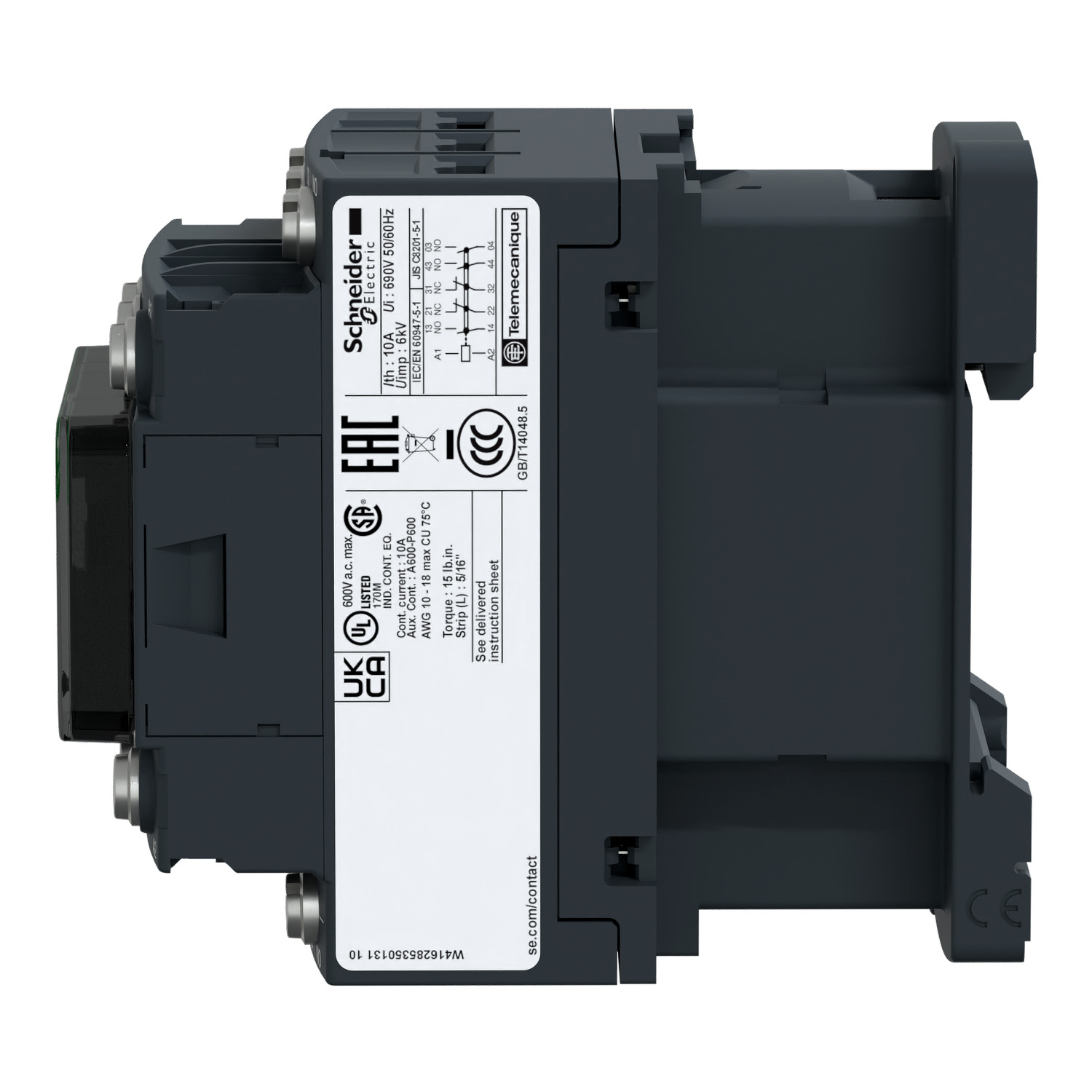

Contactor auxiliar TeSys D - 3 ND + 2 NI - <= 690 V - bobină standard 220 V ca
Documente
Specificatii
| Application | |
| Suitable for manual operation | No |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 220 V |
| Rated control supply voltage AC 60 Hz | 220 V |
| Rated operation current Ie, 400 V | 10 A |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Connection | |
| Interface | No |
| Connection type auxiliary circuit | Other |
| Number of auxiliary contacts as normally closed contact | 2 |
| Number of auxiliary contacts as normally open contact | 3 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally closed contact, delayed switching | 0 |
| Number of auxiliary contacts as normally open contact, leading | 0 |
| Model/type | |
| With LED indication | No |
| Mounting/installation | |

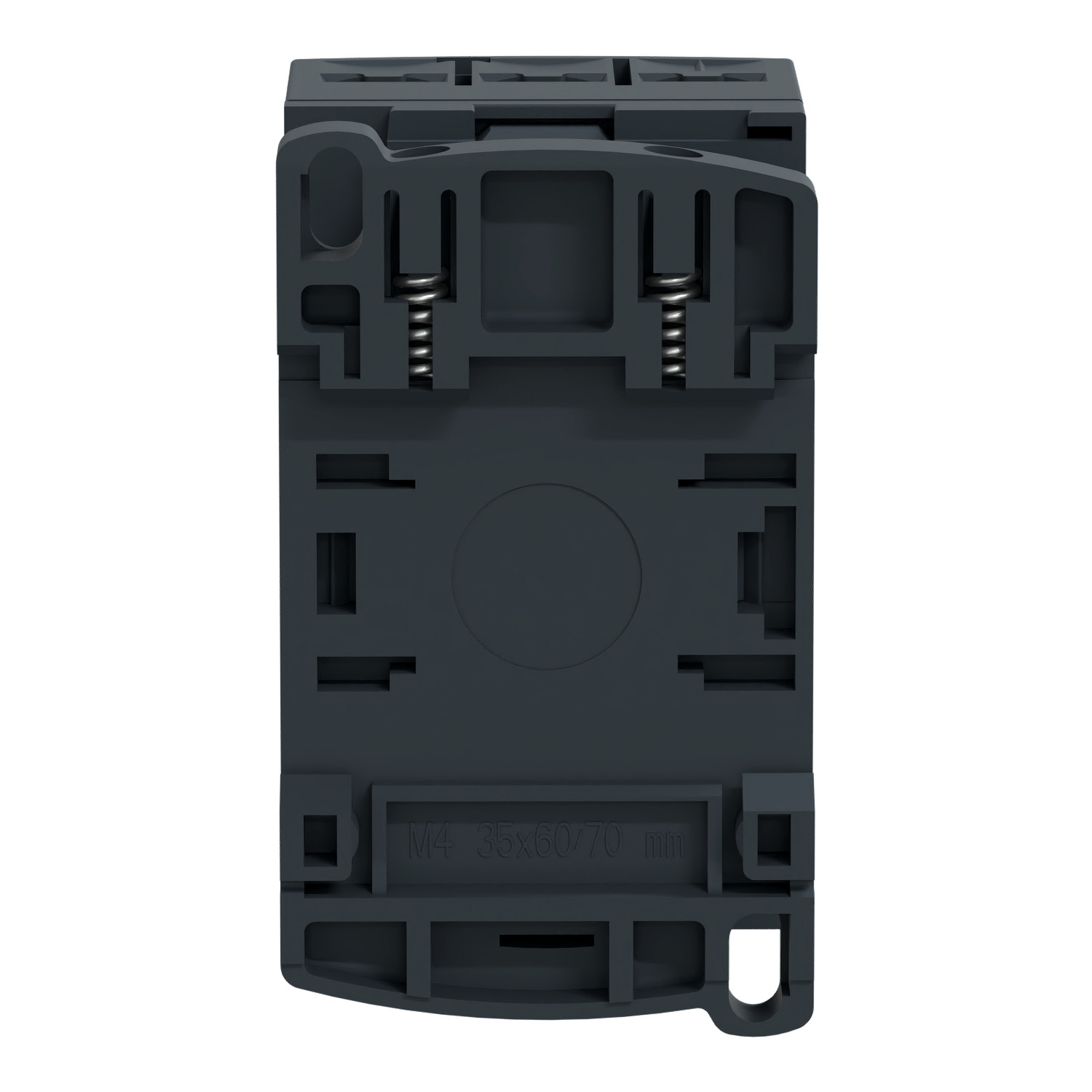

| Mounting method | DIN-rail/screw |
| Package 1 | |
| volume | 616,55 cm3 |
| weight | 368 g |
| length | 11,8 cm |
| width | 9,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110632064 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 6,317 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 16 |
| qmin | 16 |
| um | CT |
| gtin | 13389110632061 |
