Descriere

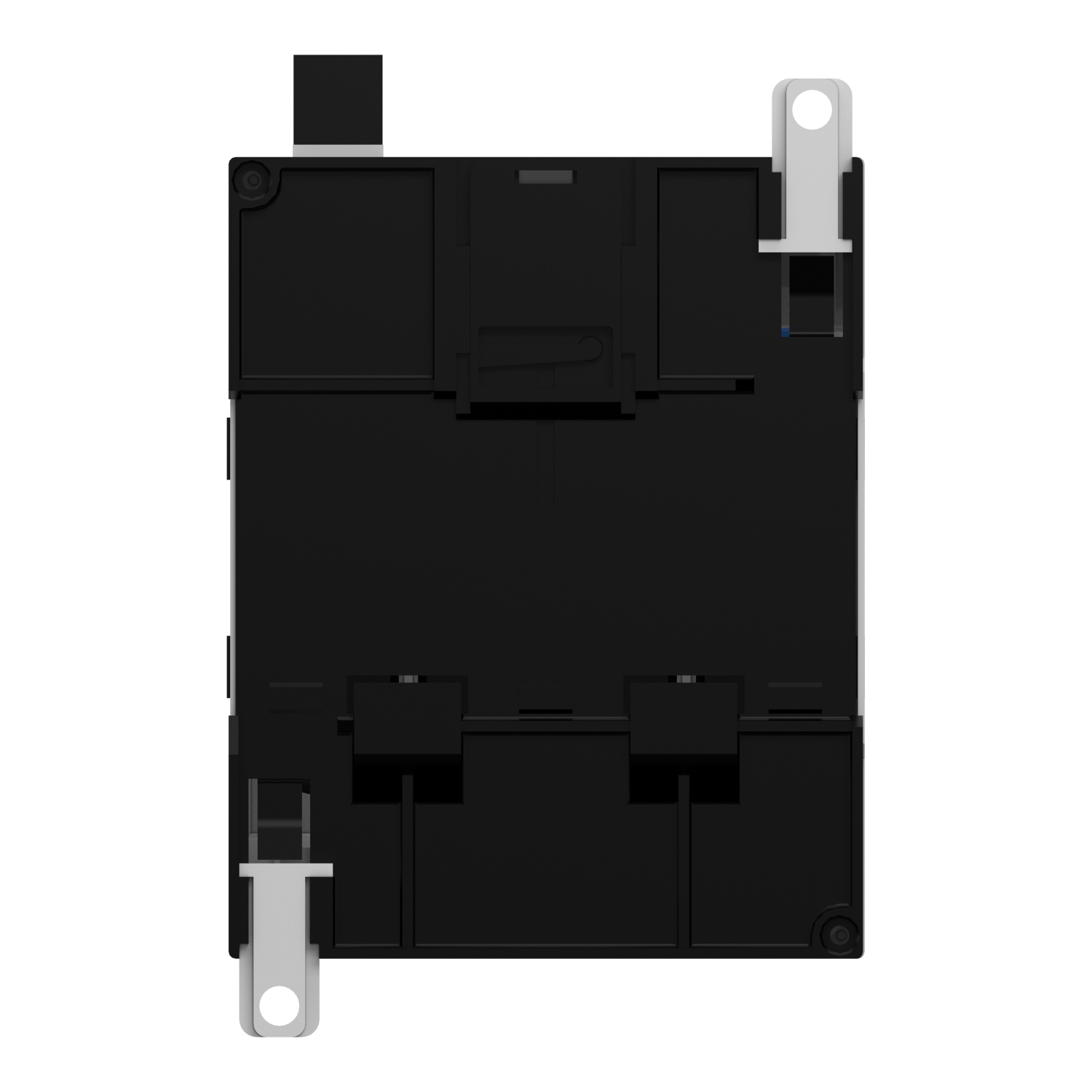

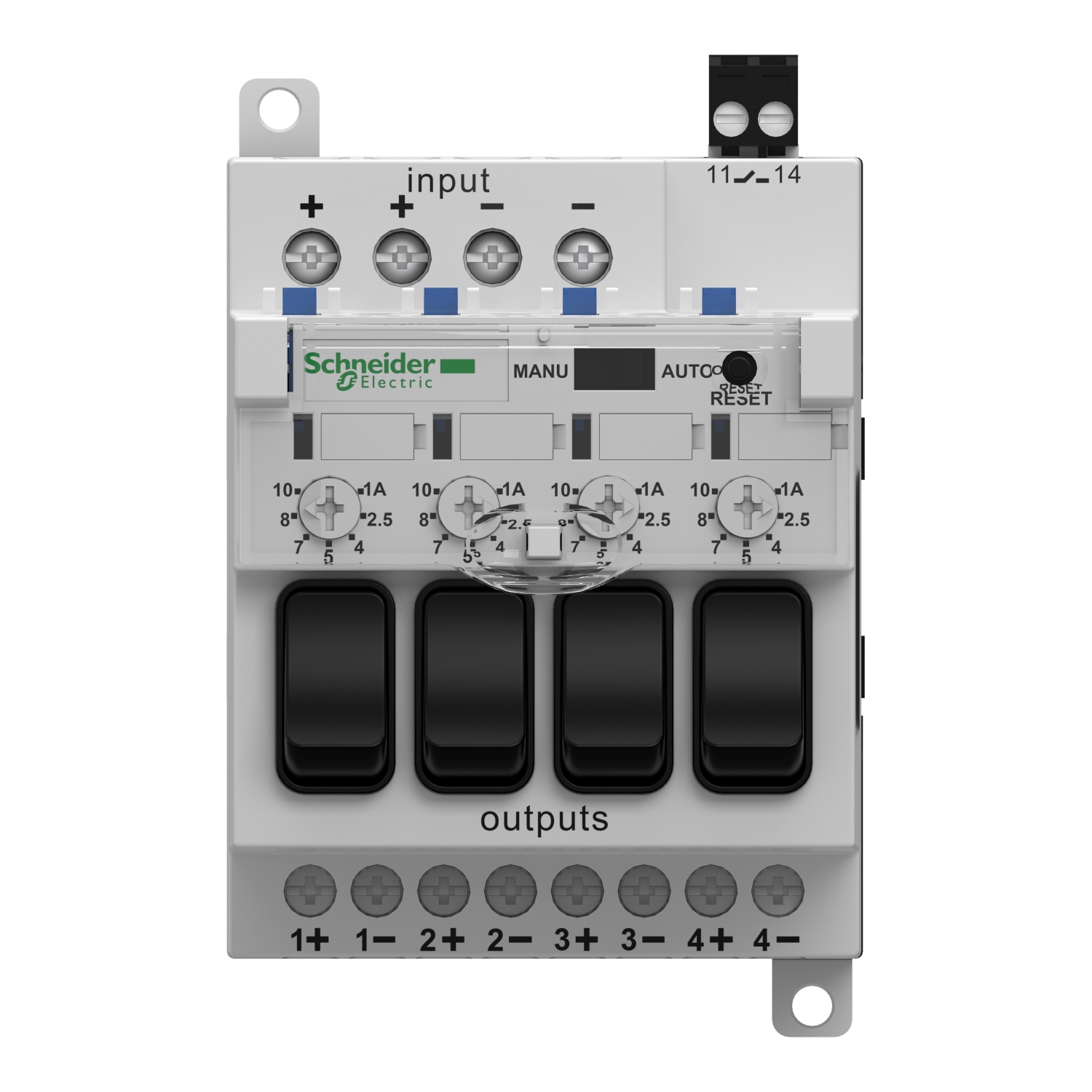

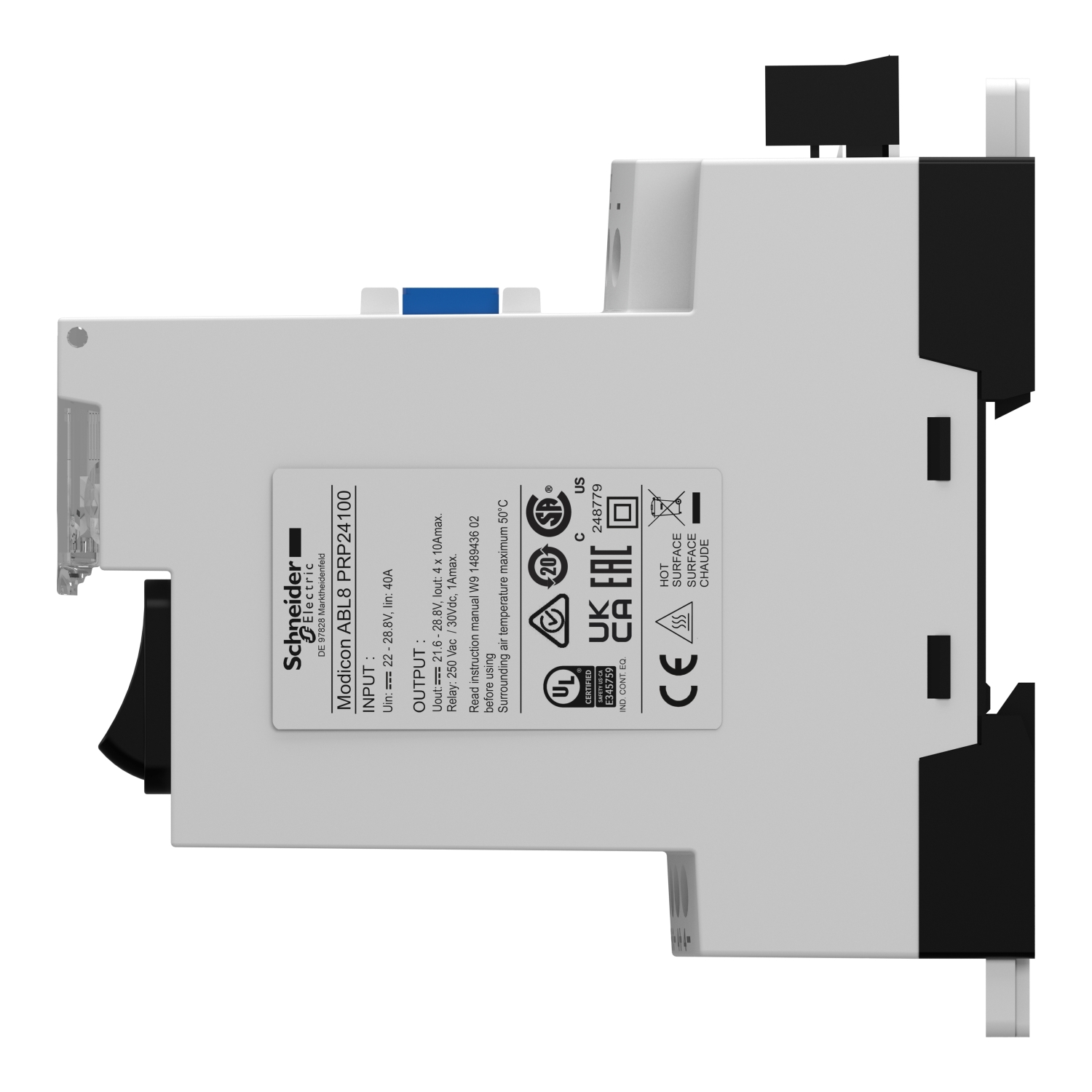

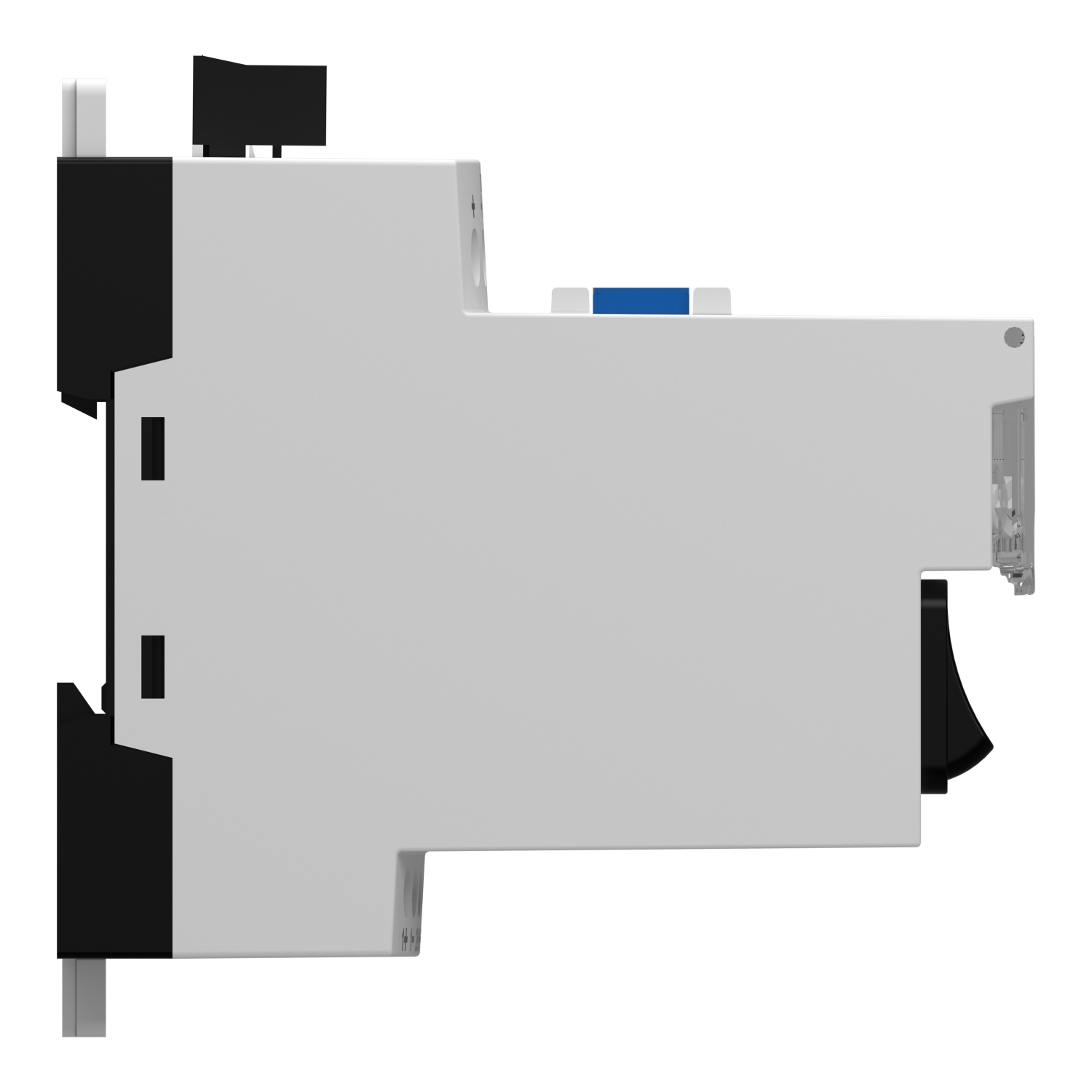

Modul De Protectie Electronica - 28 - 28.8 V Dc - 10 A - Pentru Smps Reglementat
Documente
Specificatii
| Electrical | |
| Three-phase overcurrent possible | FALSE |
| Three-phase under current possible | FALSE |
| Current measuring range | 10 A |
| Single-phase overcurrent possible | FALSE |
| Single-phase under current possible | FALSE |
| Voltage type for actuating | AC/DC |
| Rated control supply voltage AC 50 Hz | 19 V |
| Rated control supply voltage AC 60 Hz | 19 V |
| Rated control supply voltage DC | 24 V |
| Options | |
| Contains function DC-voltage under current | TRUE |
| External current transformer | FALSE |
| Single-phase hysteresis possible | FALSE |
| Three-phase hysteresis possible | FALSE |
| Function DC-current hysteresis | FALSE |
| Contains function DC-voltage overcurrent | TRUE |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 4 |
| Measurements | |
| Height | 110 mm |
| Width | 71 mm |
| Depth | 103 mm |
| Operating conditions | |
| Max. permitted delay-on energization time | - |
| Max. permitted off-delay time | - |
| Model/type | |
| With detachable clamps | TRUE |
| Setting/control | |
| Min. adjustable delay-on energization time | - |
| Min. adjustable off-delay time | - |
| Package 1 | |
| volume | 1863 cm3 |
| weight | 570 g |
| length | 13,5 cm |
| width | 10 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119406918 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 12,49 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 43389119406916 |

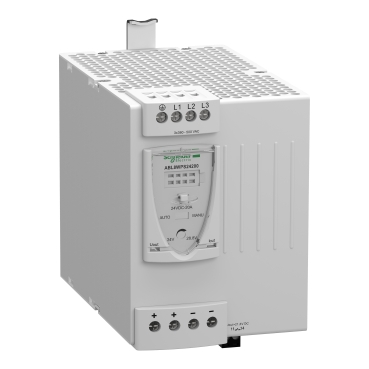

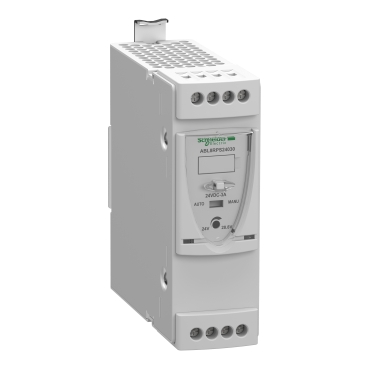

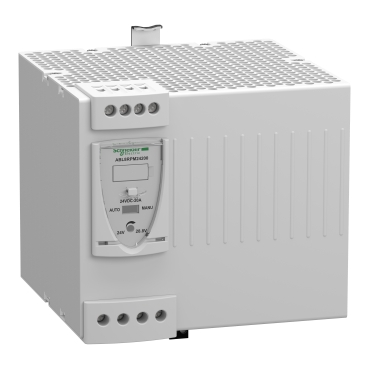

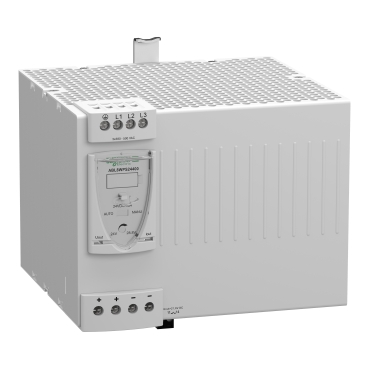

Recomandari
