Descriere

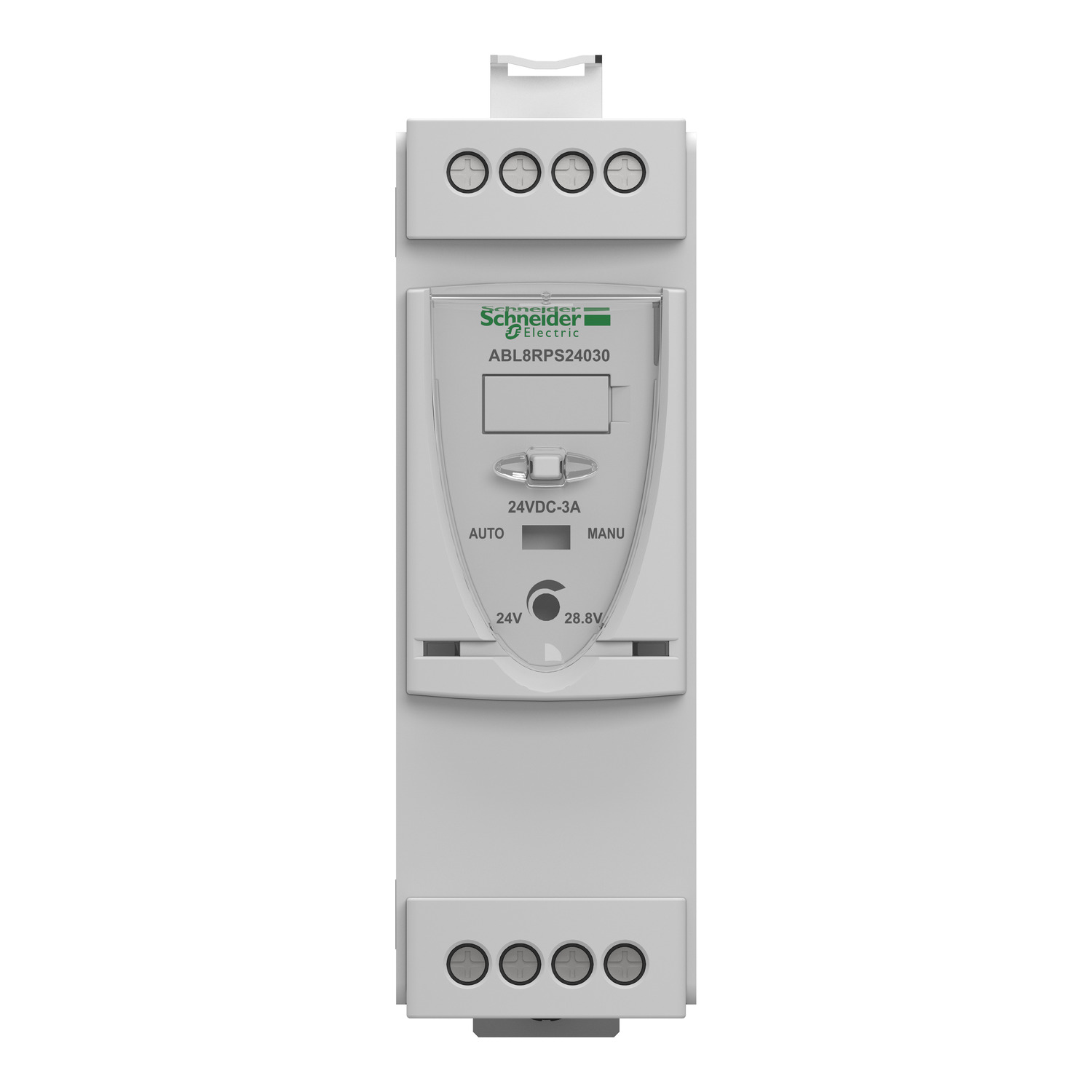

Sursa Alim. In Comutatie - 1 Sau 2 Faze - 200 - 500 V C.A. - 24 V - 3 A
Documente
Specificatii
| Connection | |
| Type of electric connection | Screw connection |
| Mounting/installation | |
| Direct mounting possible | Yes |
| Suitable for rail mounting | Yes |
| Wall mounting possible | No |
| Electrical | |
| Voltage type (supply voltage) | AC/DC |
| 2nd secondary output voltage | - |
| Nominal value output current 2 | - |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Rated supply voltage AC 50 Hz | 100 V |
| Nominal value output current 1 | 3 A |
| Power output | 72 W |
| Rated supply voltage AC 60 Hz | 100 V |
| Nominal value output current 3 | - |
| Rated supply voltage DC | - |
| Nominal value output voltage 1 | 24 V |
| Nominal value output voltage 3 | - |
| Nominal value output voltage 2 | - |
| Max. output current 1 | 3 A |
| Output voltage stabilized | Yes |
| 3rd secondary output voltage | - |
| Power consumption | - |
| 1st secondary output voltage | 24 V |
| Secondary voltage adjustable | Yes |
| Options | |
| Stabilized | Yes |
| Suitable for distribution board | No |
| Short-circuit-proof | Yes |
| Measurements | |
| Width in number of modular spacings | - |
| Built-in height | - |
| Height | 143 mm |
| Width | 45 mm |
| Built-in width | - |
| Depth | 125 mm |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | - |
| Application | |
| Suitable for safety functions | Yes |
| Package 1 | |
| volume | 1555,125 cm3 |
| weight | 776 g |
| length | 14,5 cm |
| width | 16,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119405607 |
| Package 2 | |
| volume | 360000 cm3 |
| weight | 106,12 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 120 |
| qmin | 120 |
| um | PF |
| gtin | 43389119405605 |

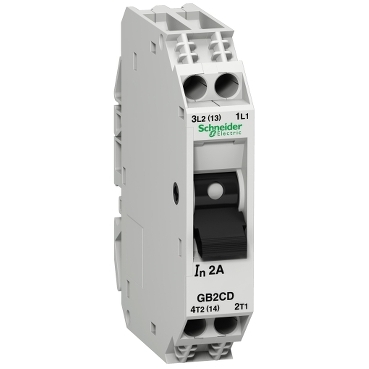

Accesorii
