Descriere
Acest produs Acti9 este o bara colectoare tip pieptene orizontala decupabila pentru aparate Acti9 iC40. Este dedicat instalatiilor trifazate. Tipul de distributie este (N, L1), (N, L2), (N, L3). Este adecvat pentru 4 aparate 3P+N, fara dispozitive auxiliare asociate. Lungimea este de 218mm. Numarul total de module de 18mm este de 12. Curentul operational nominal Ie la 40°C este de 80 A. Tensiunea de izolare nominala Ui este de 400 V c.a.. Tensiunea operationala nominala Ue este 230 V c.a. (faza/neutru) si 400 V (faza/faza). Culoarea dispozitivului este alba (RAL 9003). Gradul de poluare este de 3. Gradul de protectie este IP20 cu piese la capete si capace pentru dinti. In conformitate cu standardul IEC 60695-2-1, rezistenta la incendiu se autostingere la 960°C in decurs de 30 s. Este in conformitate cu standardul EN/IEC 61439-1.
Documente
Specificatii
| Measurements | |
| Length | 276 mm |
| Cross section | - |
| Width in number of modular spacings | 12 |
| Module width | 9 mm |
| Colour | |
| Colour | White |
| Options | |
| Insulated | Yes |
| Connection | |
| Type of electric connection | Pin |
| Electrical | |
| Number of phases | 3 |
| Rated surge voltage | - |
| Conditioned rated short-circuit current Iq | - |
| Rated permanent current Iu | 80 A |
| Number of poles | 4 |
| Max. rated operation voltage Ue | 400 V |
| Rated short-time withstand current lcw | - |
| Application | |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | Yes |
| Suitable for number of devices | 4 |
| Package 1 | |
| volume | 247,296 cm3 |
| weight | 147 g |
| length | 27,6 cm |
| width | 2,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489443542 |
| Package 2 | |
| volume | 3269,6 cm3 |
| weight | 1,842 kg |
| length | 30,5 cm |
| width | 16 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606489443549 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 107,5 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 600 |
| qmin | 600 |
| um | CT |
| gtin | 43606489443540 |

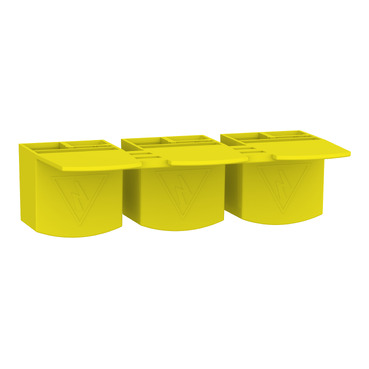

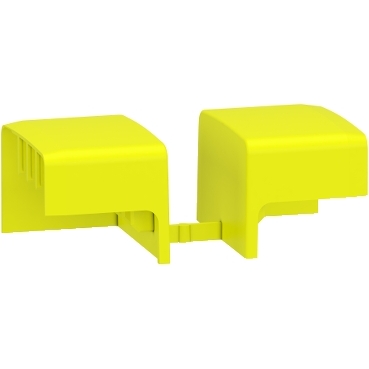

Accesorii

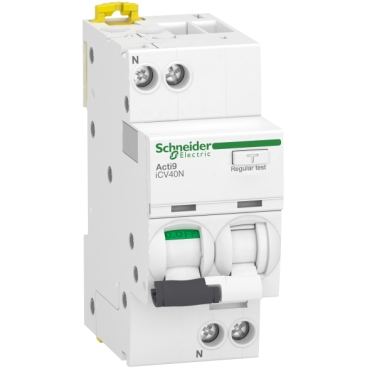

Esidual current breaker with overcurrent protection (RCBO), Acti9 iCV40, 1P+N, 16 A, C Curve
Residual current breaker with overcurrent protection (RCBO), Acti9 iCV40, 1P+N, 10 A, C Curve

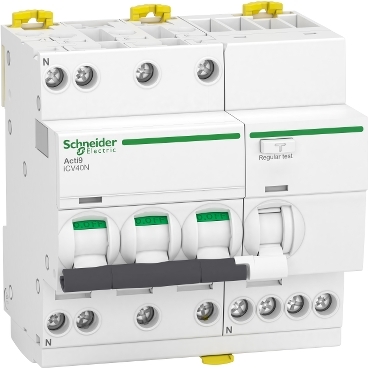

Residual current breaker with overcurrent protection (RCBO), Acti9 iCV40N, 3P+N, 40A, C curve, 6000A

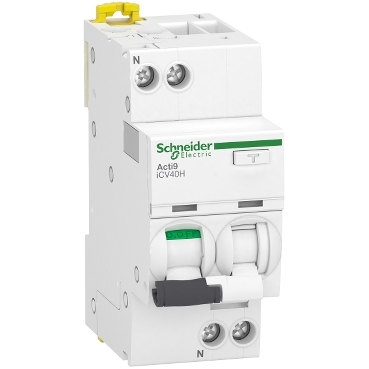

Residual current breaker with overcurrent protection (RCBO), Acti9 iCV40H, 1P+N, 20A, B curve
