Descriere

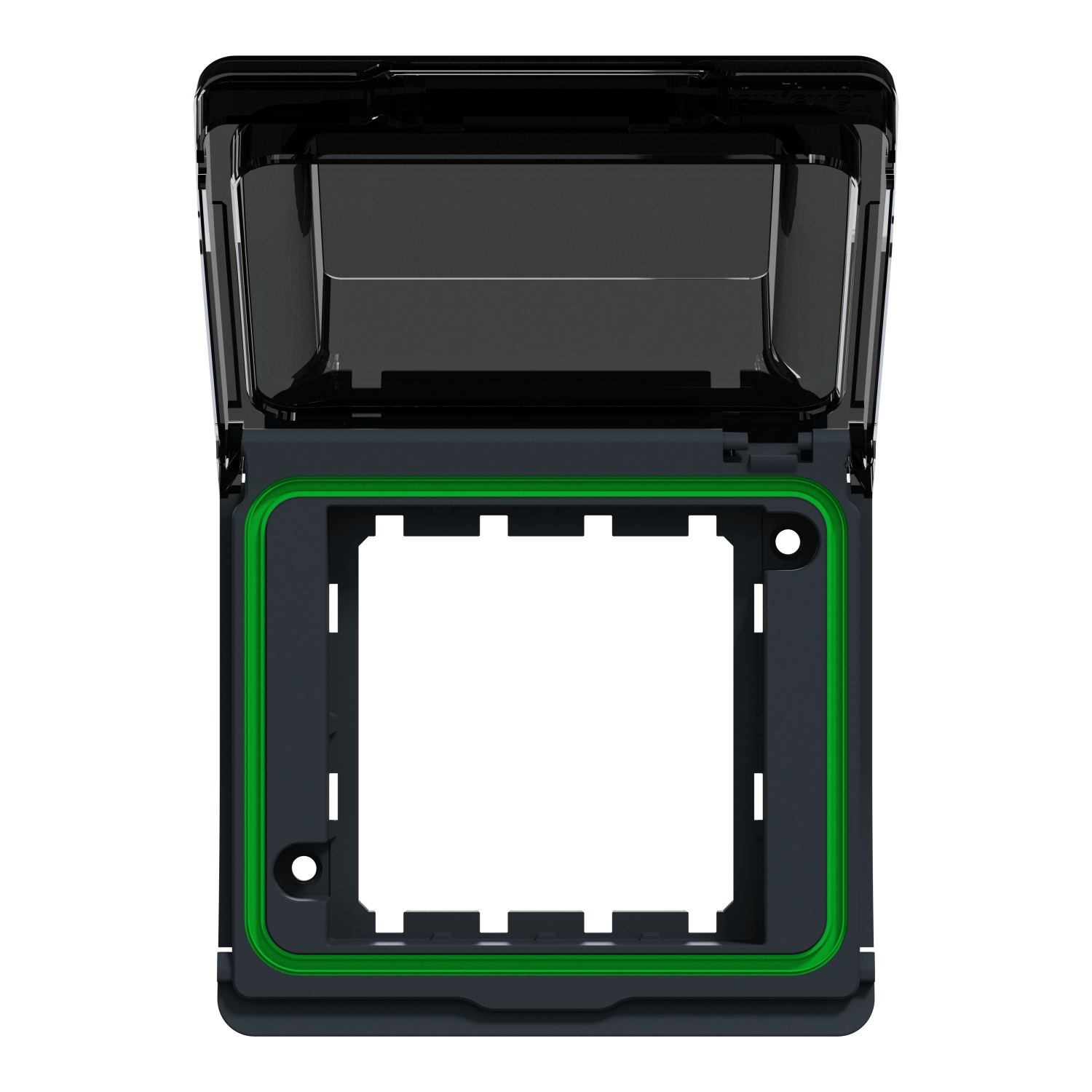

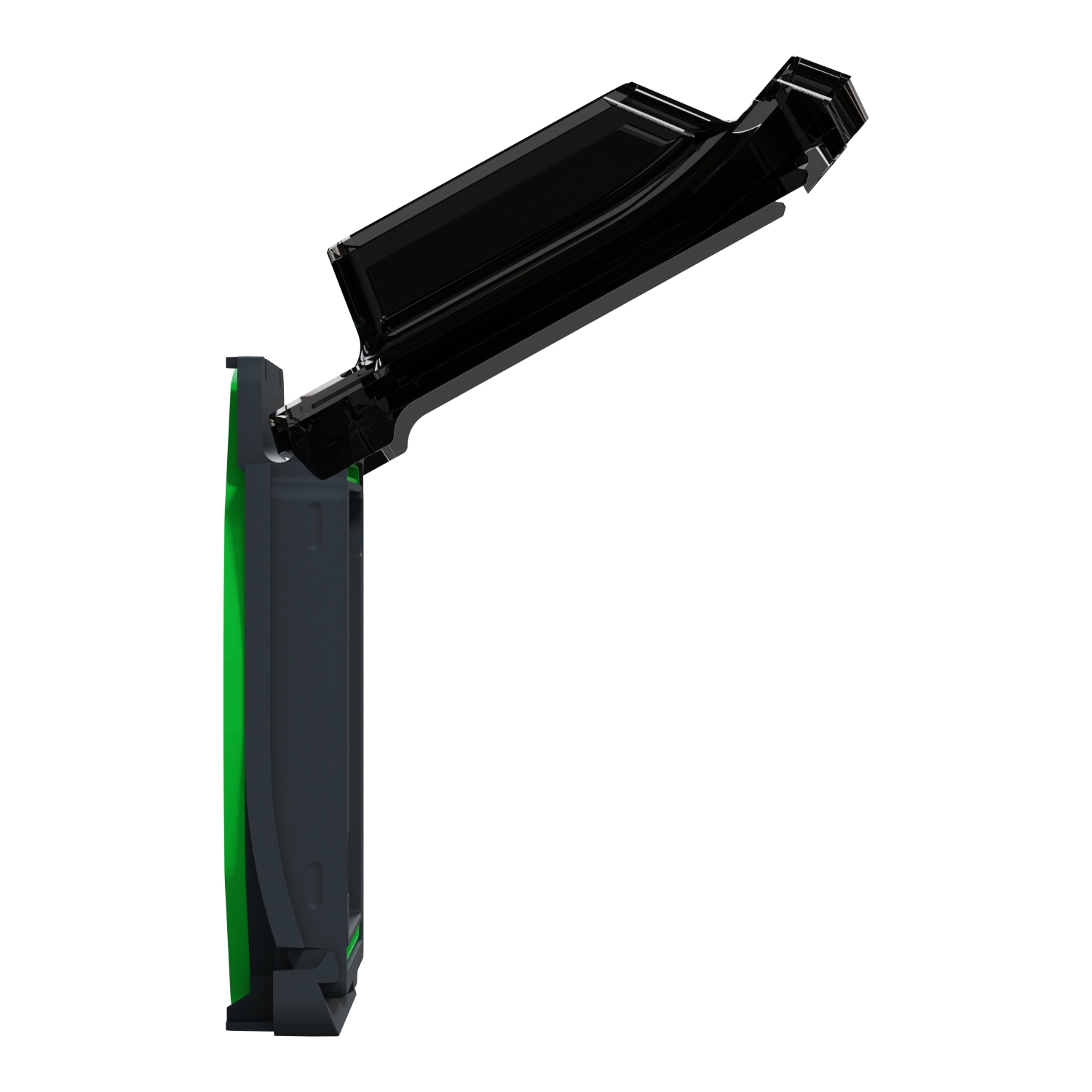

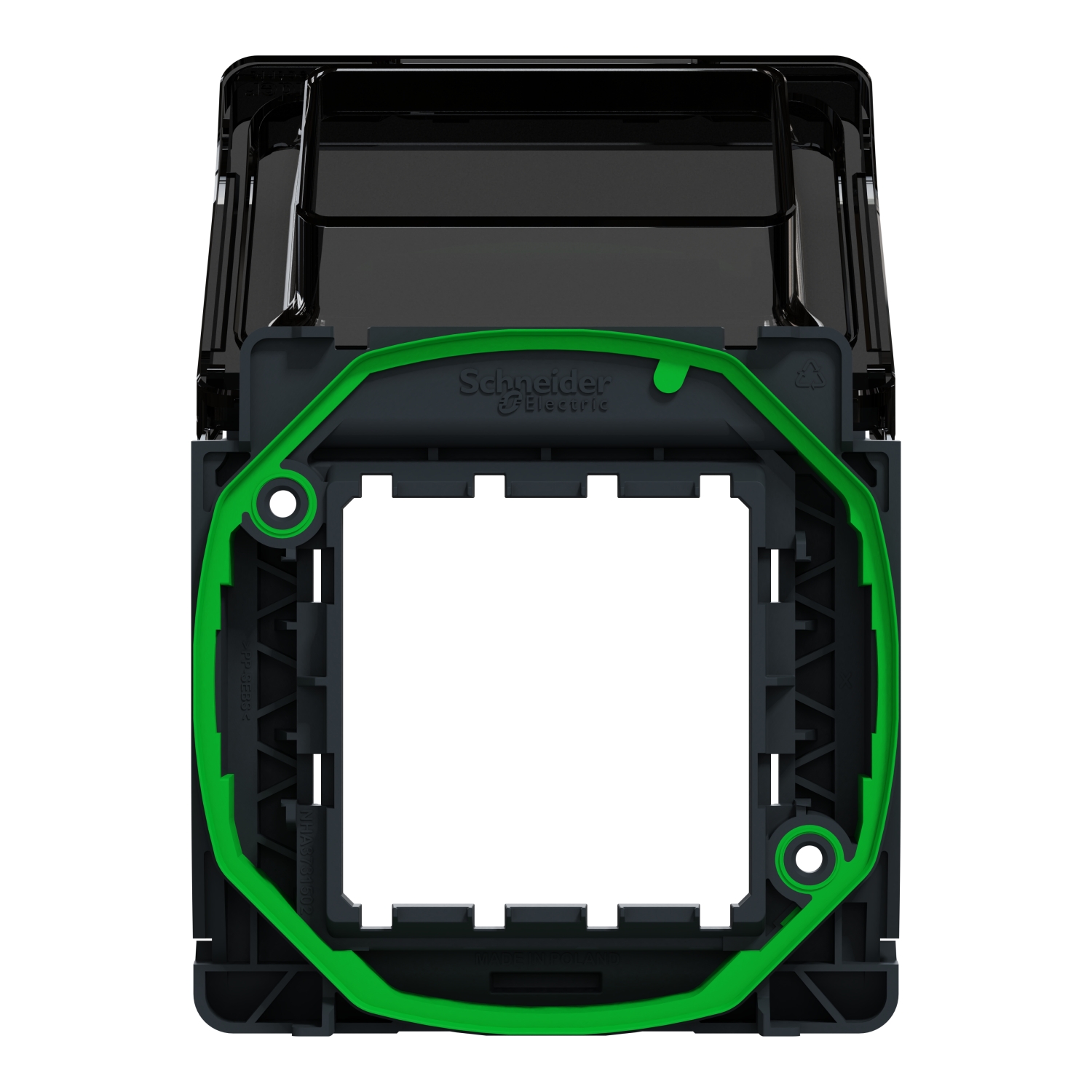

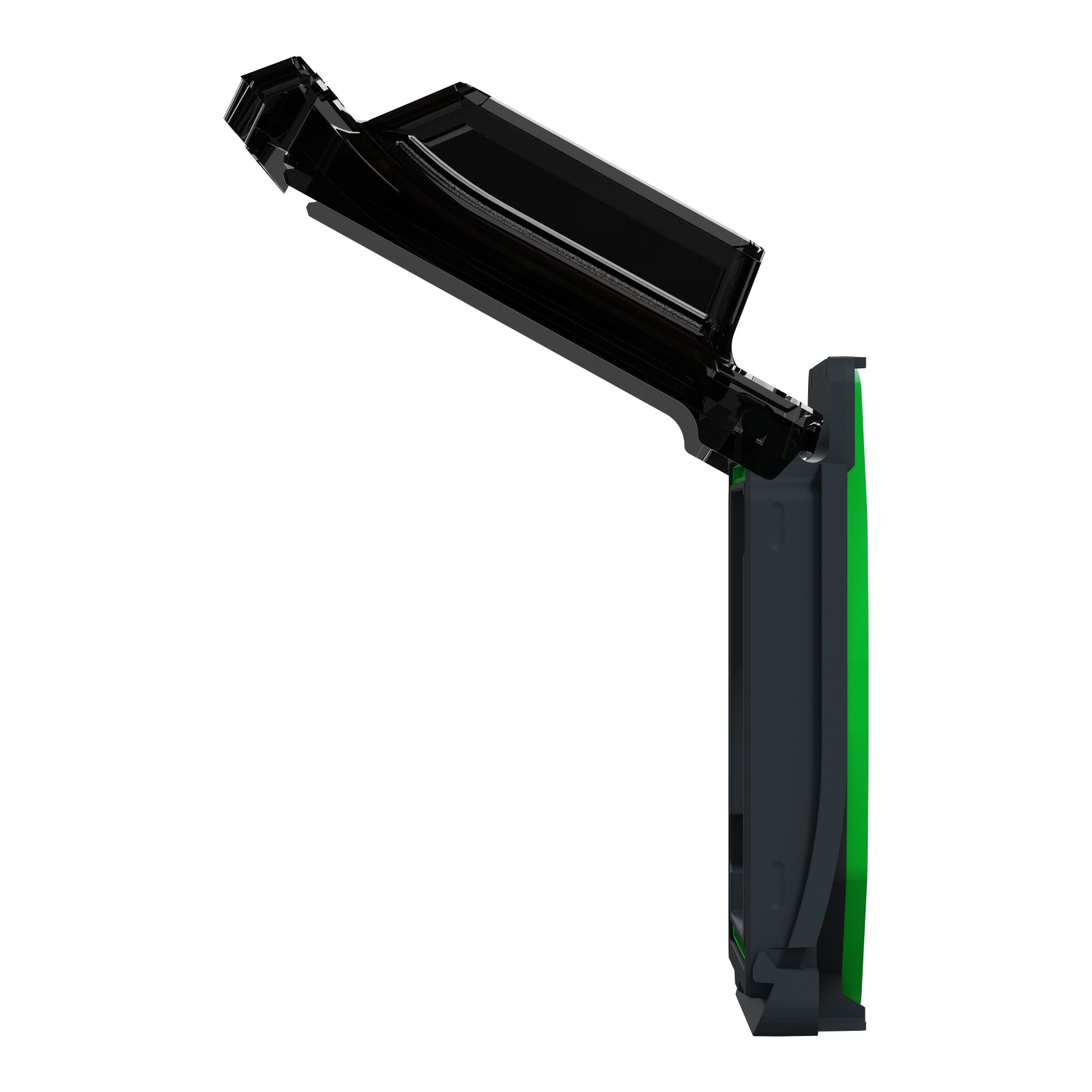

Rama cu capac Mureva Styl este robusta si are grad de protectie IP55 atunci cand este asociata cu o doza aparenta sau cu un suport de fixare pentru montaj incastrat Mureva Styl. Capacul transparent este perfect si pentru a vedea mecanismul din spatele lui, chiar si atunci cand este capacul este inchis. Acest produs poate fi folosit pentru montaj aparent si incastrat, atat in interior cat si in exterior. Dimensiunile sale sunt: 29 mm inaltime, 71 mm latime si 71 mm lungime
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Colour | |
| Colour | Grey |
| RAL-number (similar) | 7035 |
| Transparent | No |
| Mounting/installation | |
| Mounting direction | Horizontal and vertical |
| Cross-trunking mounting | - |
| Measurements | |
| Device width | 71 mm |
| Device height | 71 mm |
| Device depth | 28 mm |
| Model/type | |
| With cover frame | Yes |
| With duct entry | No |
| Assembly arrangement | Surface mounted box |
| With cable entry | Yes |
| Number of modules (module system) | - |
| Shape | Other |
| With screw gland entry | No |
| Number of units | 1 |
| Protection | |
| Shock resistant | Yes |
| Degree of protection (IP) | IP55 |
| Application | |
| Suitable for modular domestic switching devices | No |
| Package 1 | |
| volume | 168,75 cm3 |
| weight | 35 g |
| length | 7,5 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480892226 |
| Package 2 | |
| volume | 4841,76 cm3 |
| weight | 460 g |
| length | 39,3 cm |
| width | 16 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480892223 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 3,52 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43606480892224 |
| Package 4 | |
| weight | 25,912 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 240 |
| qmin | 240 |
| um | PF |
