Descriere

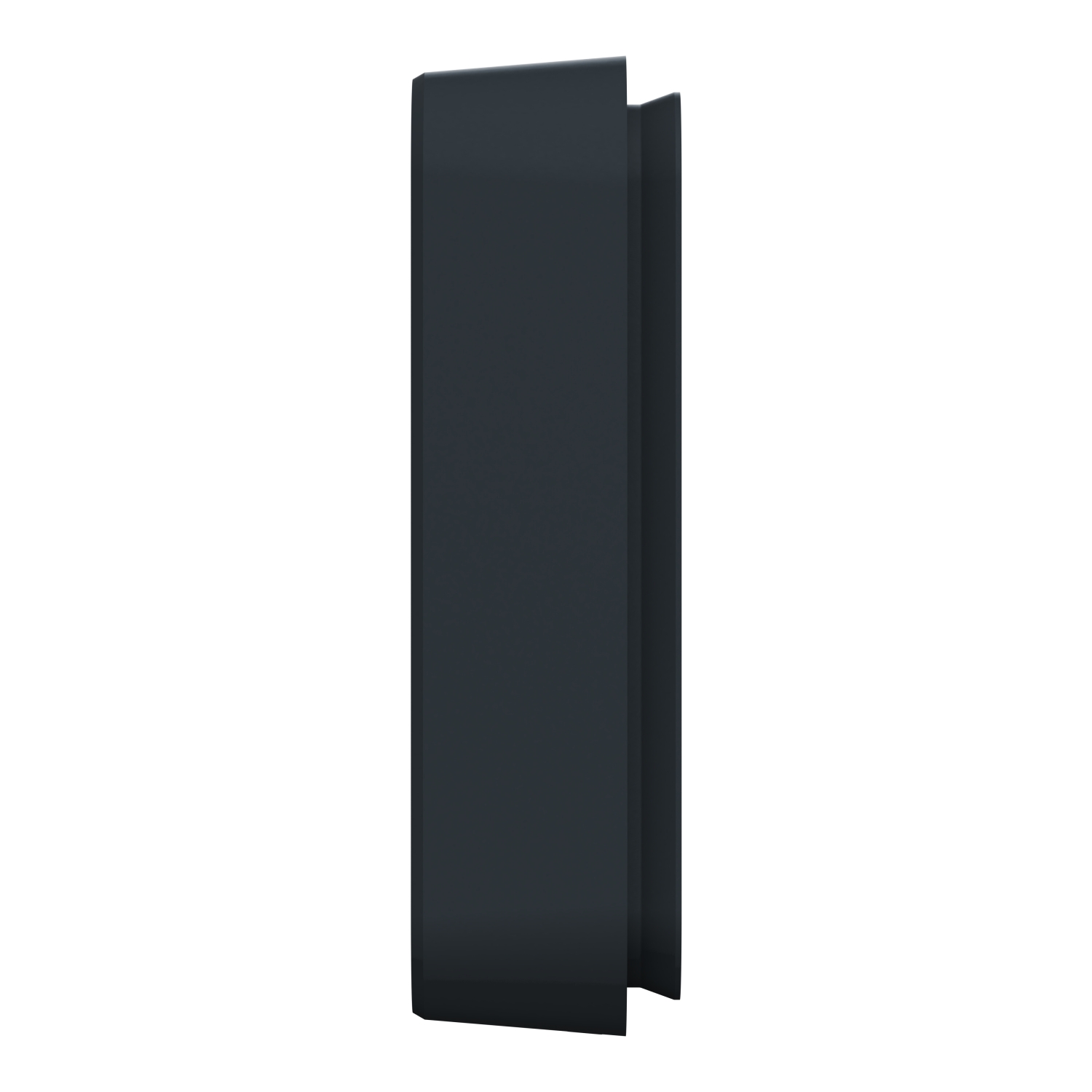

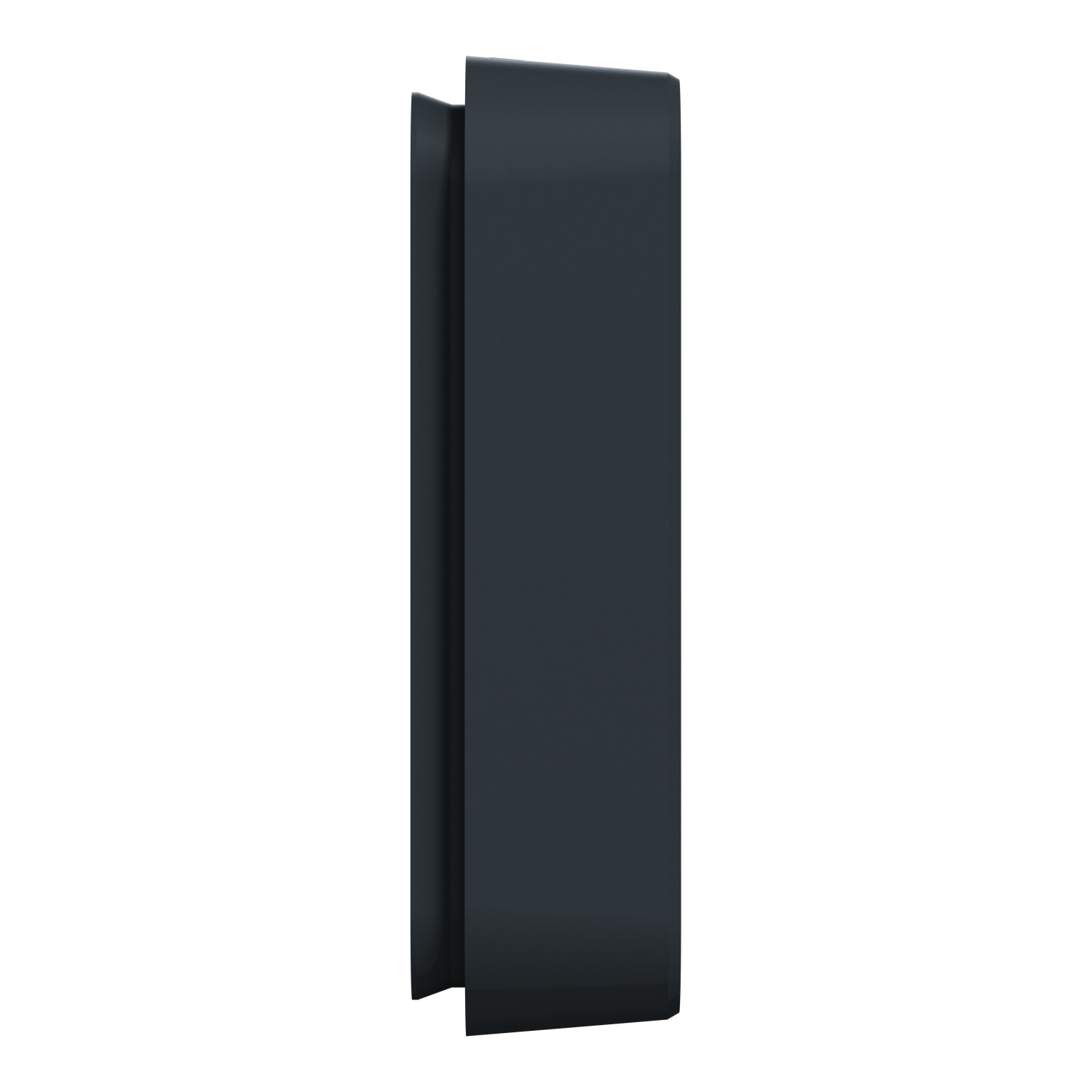

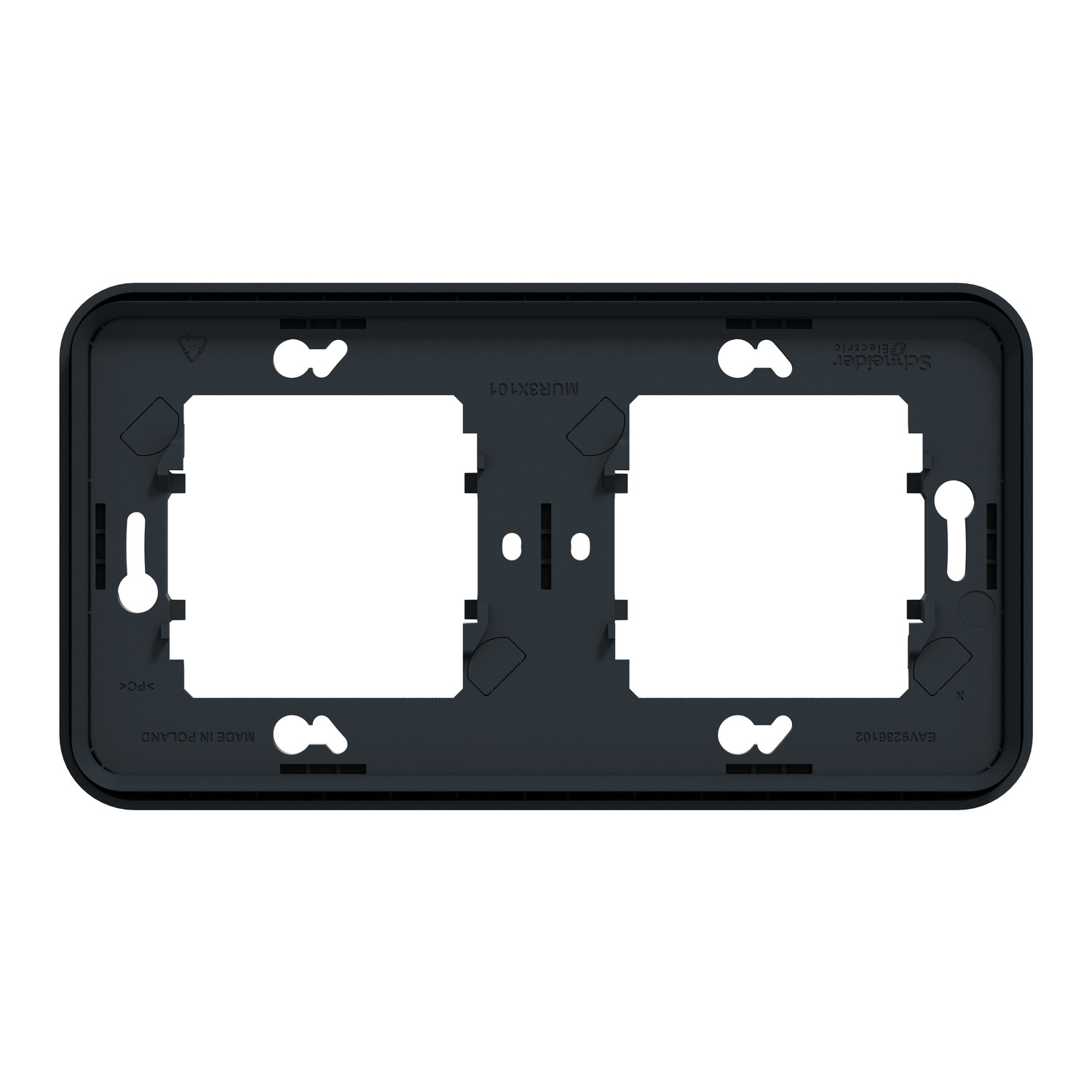

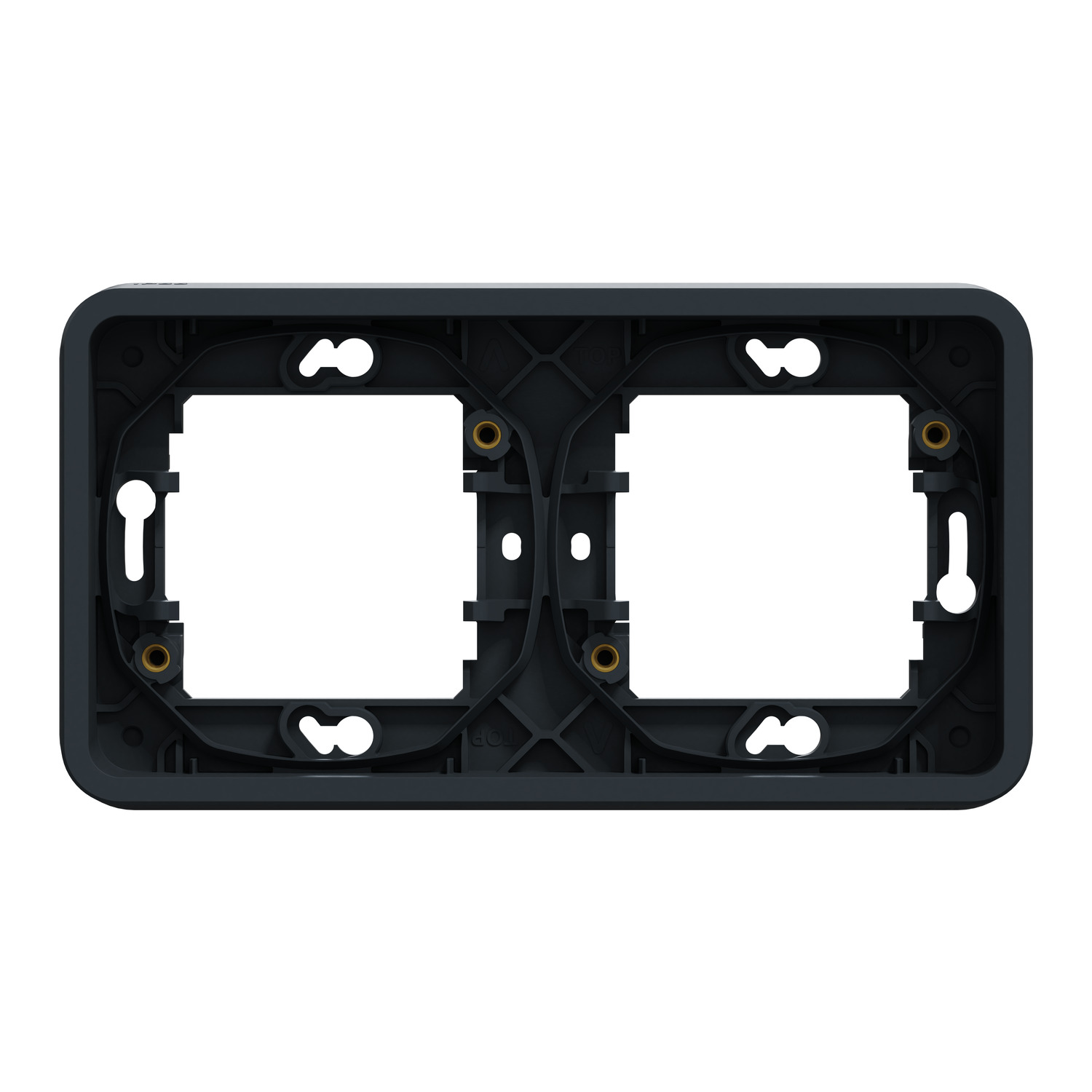

Suportul de fixare cu 2 posturi Mureva Styl MUR34101 este realizat pentru montaj incastrat orizontal si este compatibil cu alte referinte din gama Mureva Styl destinate acestui tip de montaj. Datorita indicelui sau de protectie IP55, acest dispozitiv poate fi instalat in interior sau in exterior si se fixeaza cu suruburi. Dimensiunile sale sunt: 23 mm inaltime, 84 mm latime, 19 mm adancime de proiectare.
Documente
Specificatii
| Material | |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Other |
| Model/type | |
| With hinged lid | No |
| Number of device inserts horizontal | 2 |
| Number of device inserts vertical | 1 |
| Number of switch inserts | 2 |
| Number of modules vertical (module system) | - |
| Number of modules horizontal (module system) | - |
| Number of units | 2 |
| Mounting/installation | |
| Mounting direction | Horizontal |
| With mounting grid | Yes |
| Type of fastening | Clamping/screw mounting |
| Suitable for built-in installation | No |
| Flush-mounted installation | No |
| Suitable for wall duct | No |
| Application | |
| Suitable for subfloor installation duct box | No |
| Colour | |
| RAL-number (similar) | 7016 |
| Transparent | No |
| Colour | Grey |
| Measurements | |
| Built-in height | - |
| Height | 155 mm |
| Diameter bore hole (opening) | - |
| Width | 84 mm |
| Built-in width | - |
| Depth | 23 mm |
| Protection | |
| Degree of protection (IP) | IP55 |
| Options | |
| Label space/information surface | No |
| Anti-bacterial treatment | No |
| Other | |
| Impact strength | IK08 |
| Package 1 | |
| volume | 247,86 cm3 |
| weight | 63 g |
| length | 15,3 cm |
| width | 8,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480790034 |
| Package 2 | |
| volume | 5056 cm3 |
| weight | 407 g |
| length | 39,5 cm |
| width | 16 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 13606480790031 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 3,213 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 43606480790032 |
| Package 4 | |
| weight | 26,872 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 120 |
| qmin | 120 |
| um | PF |
