Descriere

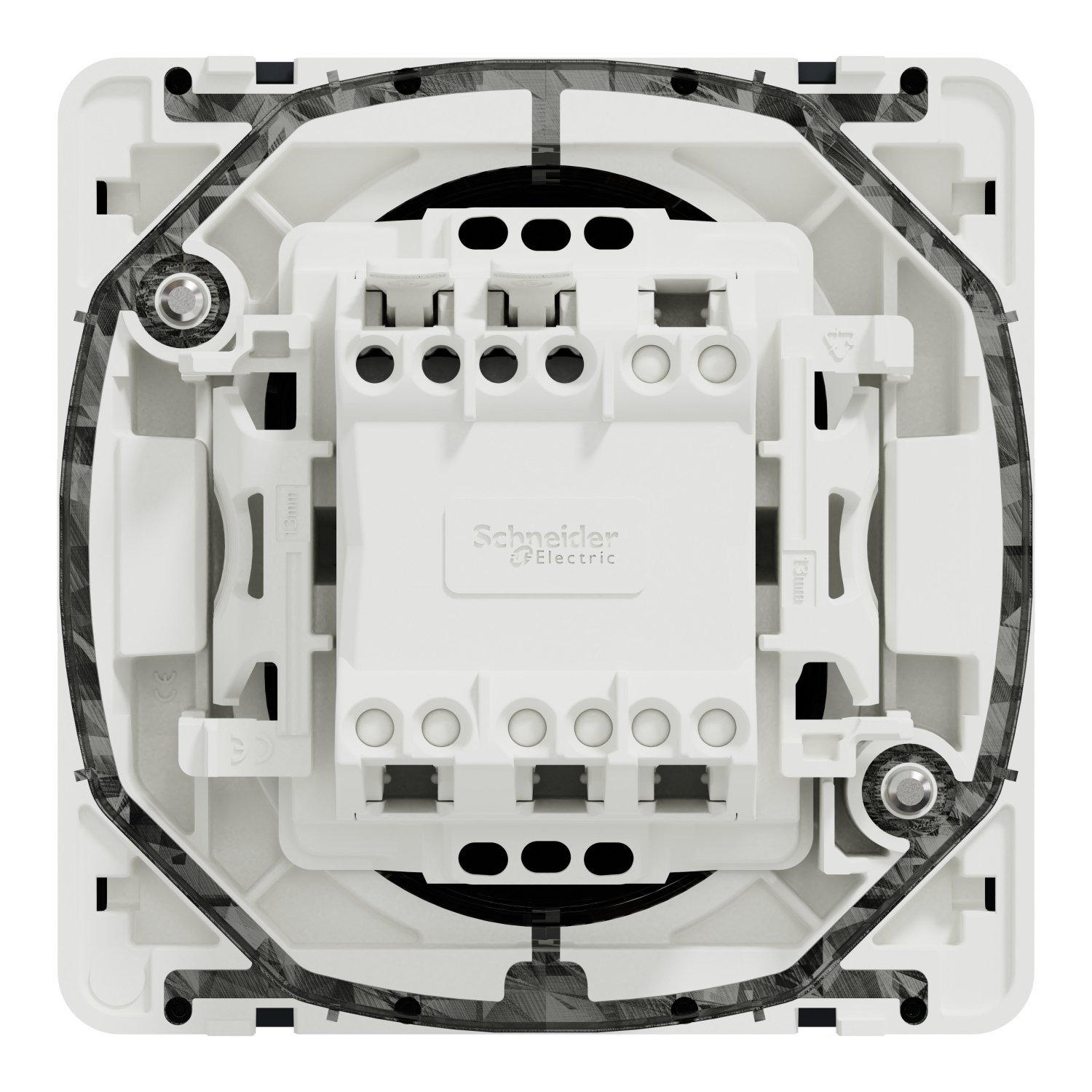

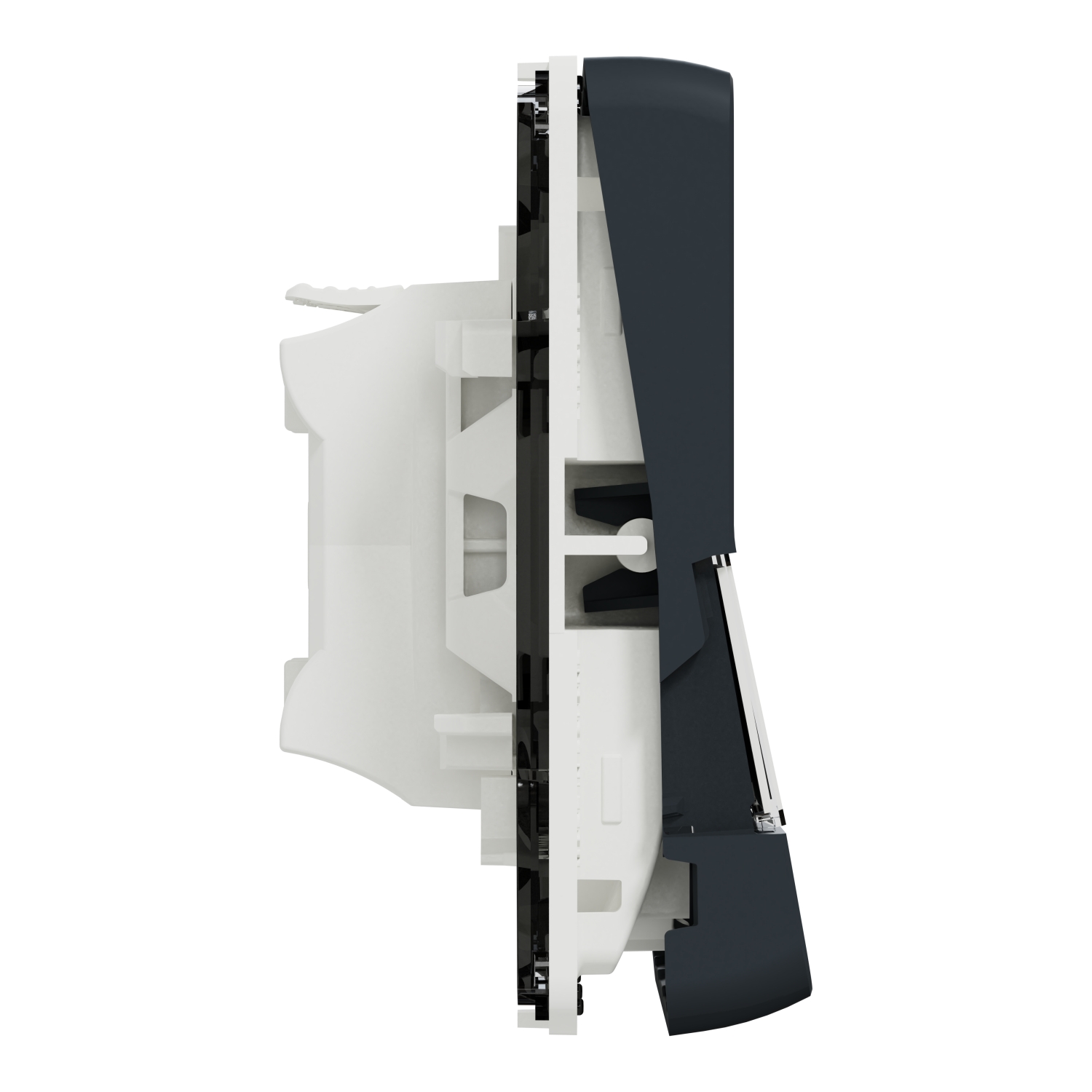

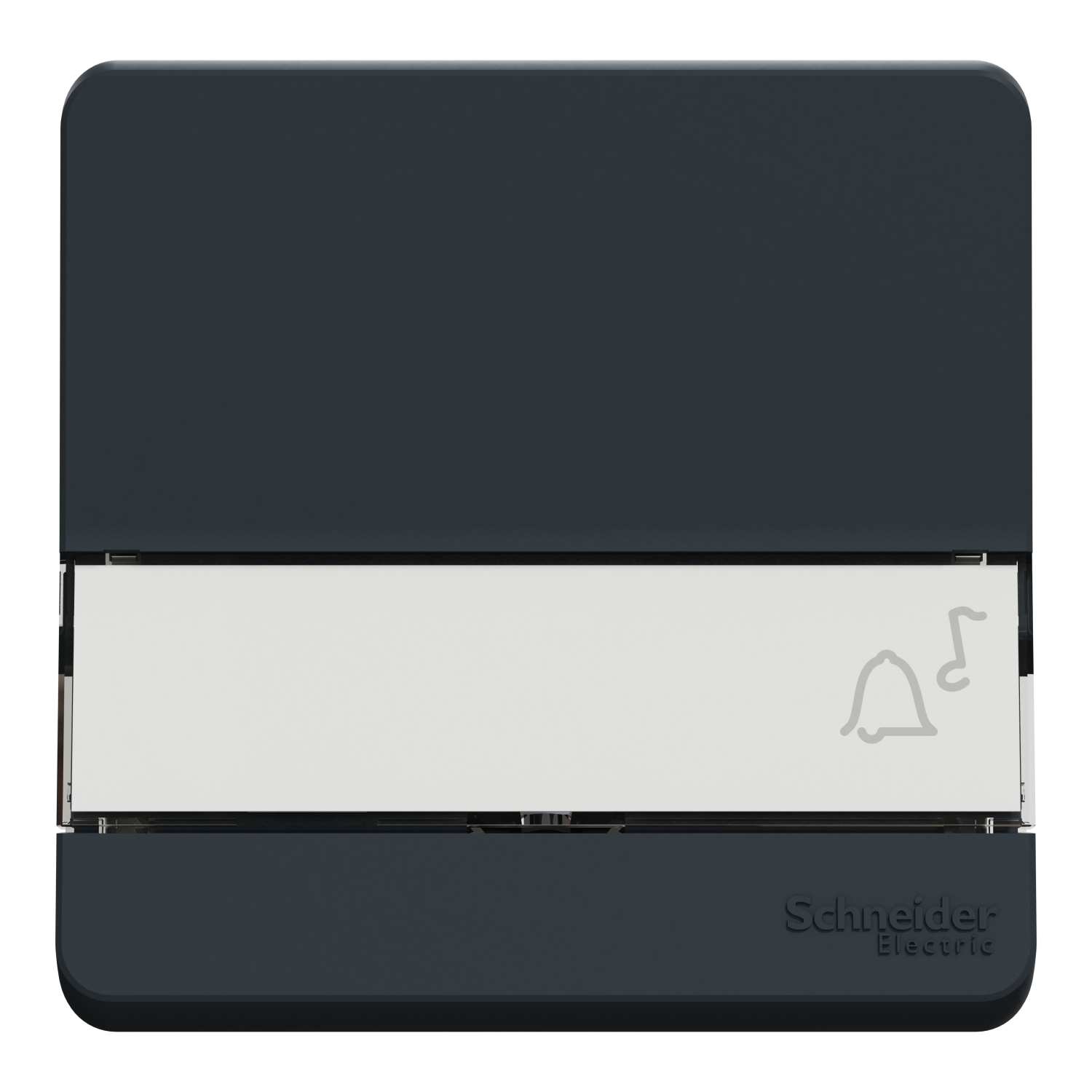

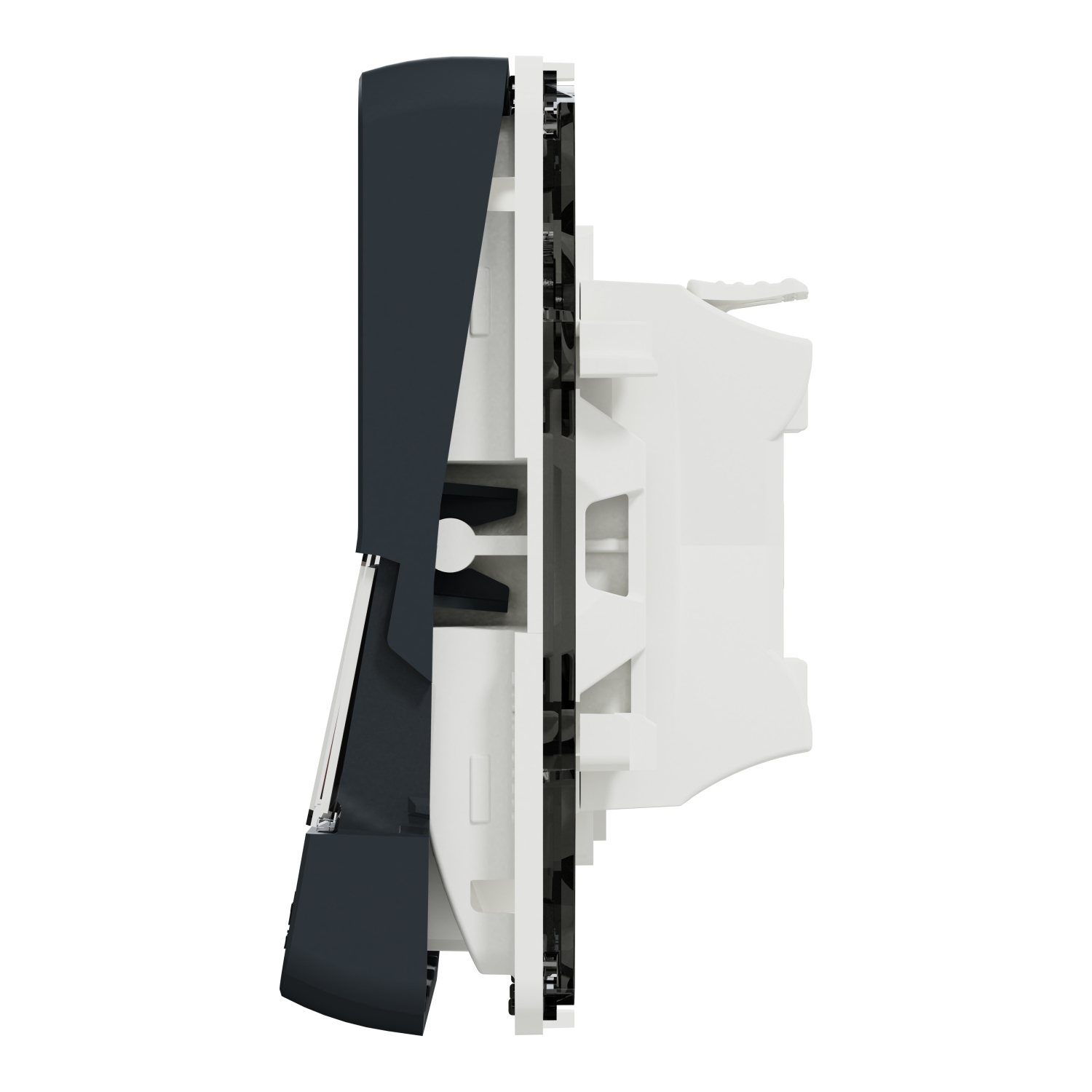

Intrerupatorul cu revenireMureva Styl MUR34029 este un dispozitiv robust care poate fi instalat in interior sau exterior. Are are un indice de protectie IP55 care ii asigura impermeabilitatea. Dispozitivul se poate fixa fara suruburi, aparent sau incastrat. Are o inaltime de 71 mm, o latime de 71 mm si o adancime de 40 mm. Suportul de eticheta ajuta la personalizarea instalatei si la diferentierea dispozitivelor
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Model/type | |
| With light source | - |
| With lighting | No |
| Imprint | None |
| Model | Single push button |
| With signal lamp | No |
| Number of modules (module system) | - |
| Number of rockers | 1 |
| Assembly arrangement | Basic element |
| Contactless type | - |
| Protection | |
| Suitable for degree of protection (IP) | IP55 |
| Colour | |
| RAL-number (similar) | 7016 |
| Transparent | No |
| Colour | Grey |
| Options | |
| IFTTT support available | No |
| Label space/information surface | Yes |
| Anti-bacterial treatment | No |
| Measurements | |
| Device depth | 40 mm |
| Min. depth of built-in installation box | - |
| Device width | 71 mm |
| Device height | 71 mm |
| Electrical | |
| Number of poles | 1 |
| Rated current | 10 A |
| Nominal voltage | 250 V |
| Mounting/installation | |
| Type of fastening | Screw mounting |
| Mounting method | Built-in installation |
| Connection | |
| Connection type | Push-in clamp |
| Number of contacts as normally open contact | - |
| Number of contacts as change-over contact | - |
| Number of contacts as normally closed contact | - |
| Number of revolving contacts | - |
| Setting/control | |
| Method of operation | Push button |
| Communication | |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Other | |
| Impact strength | - |
| Package 1 | |
| volume | 220,5 cm3 |
| weight | 53 g |
| length | 7 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480789335 |
| Package 2 | |
| volume | 5056 cm3 |
| weight | 637 g |
| length | 39,5 cm |
| width | 16 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480789332 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 4,518 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43606480789333 |
| Package 4 | |
| weight | 30,808 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 240 |
| qmin | 240 |
| um | PF |
