Descriere

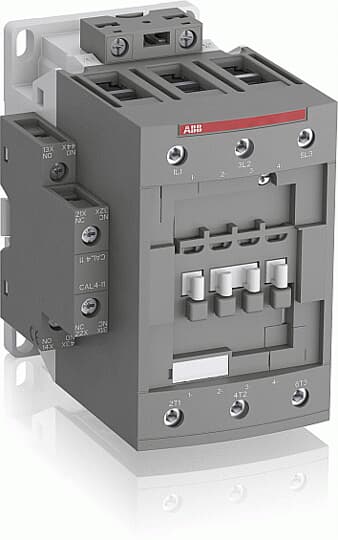

The AF96-30-11-13 is a 3 pole - 1000 V IEC or 600 UL contactor with pre-mounted auxiliary contacts and screw terminals, controlling motors up to 45 kW / 400 V AC (AC-3) or 60 hp / 480 V UL and switching power circuits up to 130 A (AC-1) or 115 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 100 V |
| Rated control supply voltage AC 60 Hz | 100 V |
| Rated control supply voltage DC | 100 V |
| Voltage type for actuating | AC/DC |
| Operating voltage AC 50 Hz | 690 V |
| Operating voltage AC 60 Hz | 690 V |
| Rated operation current Ie at AC-1, 400 V | 130 A |
| Rated operation current Ie at AC-3, 400 V | 105 A |
| Rated operation power at AC-3, 400 V | 45 kW |
| Rated operation current Ie at AC-4, 400 V | - A |
| Rated operation power at AC-4, 400 V | - kW |
| Rated operation power NEMA | - kW |
| Connection | |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Options | |
| Suitable for distribution board | No |
| Measurements | |
| Width | 82 mm |
| Height | 125.5 mm |
| Depth | 116 mm |
| Package 1 | |
| weight | 1,33 |
| length | 0,15 |
| width | 0,15 |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3471523133334 |
