Descriere

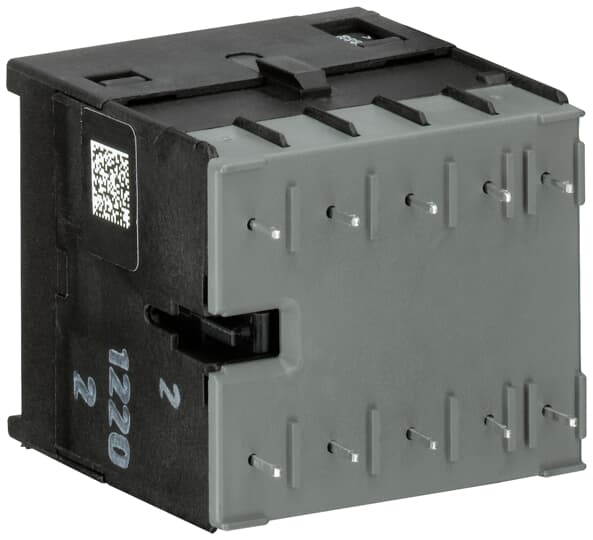

The BC7-30-10-P mini contactor is a compact 3 pole contactor with 1 auxiliary contact and soldering pins. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 12 A (AC-1) or switching of control signals. Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil and a switch position indication.
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | - V |
| Rated control supply voltage AC 60 Hz | - V |
| Rated control supply voltage DC | 24 V |
| Voltage type for actuating | DC |
| Operating voltage AC 50 Hz | 220 V |
| Operating voltage AC 60 Hz | 220 V |
| Rated operation current Ie at AC-1, 400 V | 12 A |
| Rated operation current Ie at AC-3, 400 V | 12 A |
| Rated operation power at AC-3, 400 V | 5.5 kW |
| Rated operation current Ie at AC-4, 400 V | - A |
| Rated operation power at AC-4, 400 V | - kW |
| Rated operation power NEMA | 2.2371 kW |
| Connection | |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection of main circuit | PCB connection |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Options | |
| Suitable for distribution board | No |
| Measurements | |
| Width | 47.5 mm |
| Height | 45.2 mm |
| Depth | 47.7 mm |
| Package 1 | |
| weight | 1,775 |
| length | 0,247 |
| width | 0,108 |
| qmax | 10 |
| qmin | 10 |
| um | C62 |
| gtin | 4013614418792 |
