Descriere

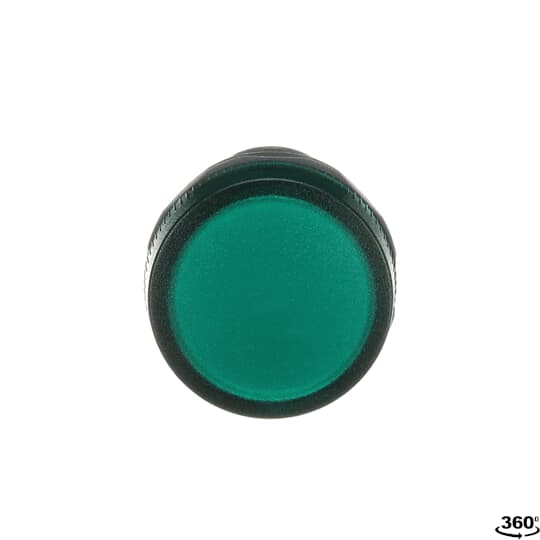

The CL2-520G Pilot Light is: Compact - Pilot Light - Pilot light head - Green - Illuminated - 220V DC This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance.
Specificatii
| Model/type | |
| Number of indicator lights | 1 |
| Type of lamp socket | LED |
| With light source | Yes |
| Construction type lens | Round |
| Type of lens | High |
| With front ring | No |
| Colour | |
| Colour lens | Green |
| Colour front ring | - |
| Electrical | |
| Rated operating voltage Ue | 220 V |
| Voltage type | DC |
| Connection | |
| Type of electric connection | Screw connection |
| Measurements | |
| Hole diameter | 22 mm |
| Width opening | 0 mm |
| Height opening | 0 mm |
| Material | |
| Material front ring | - |
| Protection | |
| Degree of protection (IP) | IP67/IP69K |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| weight | 0,184 |
| length | 0,125 |
| width | 0,235 |
| qmax | 10 |
| qmin | 10 |
| um | C62 |
| gtin | 7320500475546 |
