Descriere

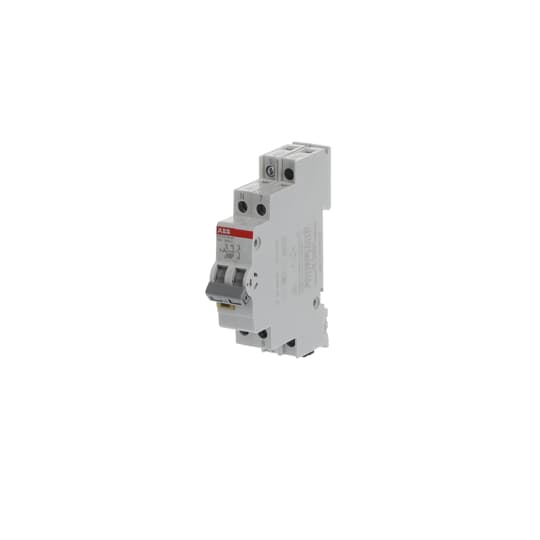

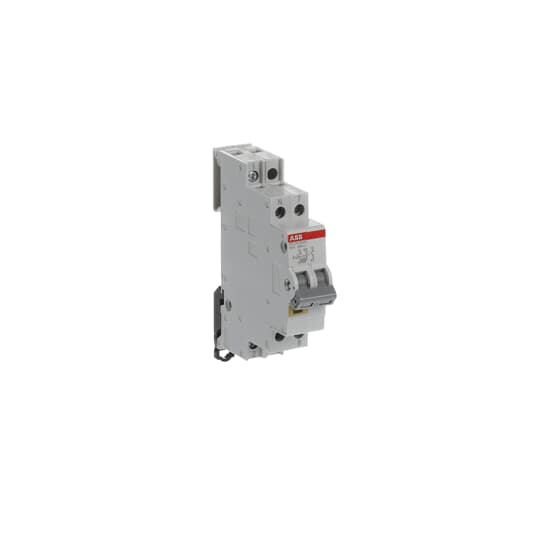

On-Off switches with switch position indication, according DIN EN 60669-1, VDE 0632 Part 1, Rated currents: 16/25 A, 250 VACPDC, Contacts: 1 NO/2 NO/3 NO, Module width: 0,5/1
Documente
Fisa tehnica
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Switching function | Other |
| With signal lamp | Yes |
| Lamp type | LED |
| Connection | |
| Number of contacts as normally open contact | 2 |
| Number of contacts as normally closed contact | - |
| Number of contacts as change-over contact | - |
| Electrical | |
| Number of poles | 2 |
| Rated current | 16 A |
| Rated voltage | 400 V |
| Min. rated voltage | 400 V |
| Rated switching capacity | - kA |
| Short-circuit breaking capacity (Icw) | 3 kA |
| Voltage type | Other |
| Max. lamp power | - W |
| Colour | |
| Colour calotte | Grey |
| Other | |
| Lamp socket | - |
| Imprint/indication | - |
| Measurements | |
| Width in number of modular spacings | 1 |
| Built-in depth | 68 mm |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| weight | 0,055 |
| length | 0,185 |
| width | 0,096 |
| qmax | 10 |
| qmin | 10 |
| um | C62 |
| gtin | 7612270938889 |
| Dimensions of product | |
| Weight | 0,05 |
| Length | 0,085 |
| Width | 0,018 |
| Depth | 0,068 |
