Descriere

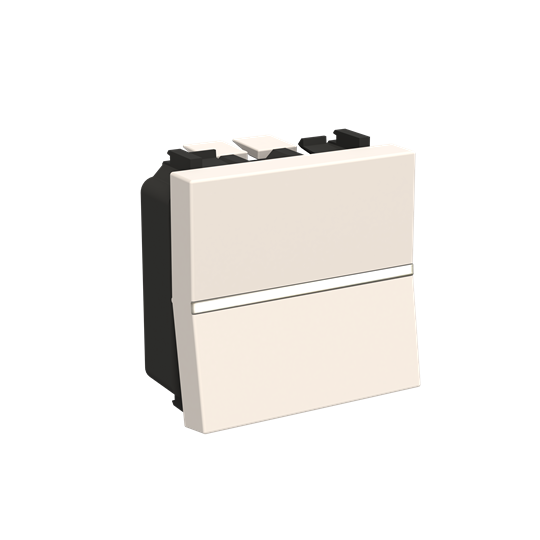

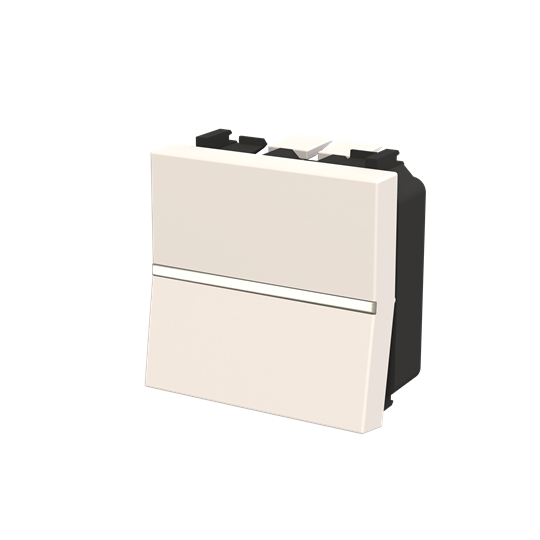

Color: White. Rated voltage: 110 - 250 Vac Rated current: 16 AX. Rated power iLED (230/127 Vac): 200/100 W. Screwless terminals Optional: locator LED lamp N2192. Size: 2 modules.
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Other | |
| Wiring system | Intermediate switch |
| Function lighting | Orientation |
| Impact strength | IK00 |
| Setting/control | |
| Method of operation | Rocker/button |
| Model/type | |
| Assembly arrangement | Modular device for domestic switching devices |
| Number of modules (module system) | 2 |
| Number of rockers | 1 |
| Label space/information surface | No |
| Lighting | Optional |
| Type of lighting | LED exchangeable |
| Heating switch | No |
| Washing machine switch | No |
| Options | |
| Push button switch | No |
| Anti-bacterial treatment | No |
| IFTTT support available | No |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Type of fastening | Engage (snap) |
| With mounting plate | No |
| Material | |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | |
| Colour | White |
| RAL-number (similar) | 9010 |
| Colour of switch operator | White |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Electrical | |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Switching current for fluorescent lamps | - AX |
| Communication | |
| Monitoring contact | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Connection | |
| Connection type | Other |
| Measurements | |
| Device width | 44 mm |
| Device height | 44 mm |
| Device depth | 73 mm |
| Built-in depth | - mm |
| Min. depth of built-in installation box | - mm |
| Package 1 | |
| weight | 0,35 |
| length | 0,32 |
| width | 0,132 |
| qmax | 10 |
| qmin | 10 |
| um | C62 |
| gtin | 8427238063584 |
| Dimensions of product | |
| Weight | 0,035 |
| Length | 0,044 |
| Width | 0,044 |
| Depth | 0,073 |
